Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 100000p/month
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Product Name: |
Ceramic Nozzle |
Feature: |
High Temperature Resistance |
Size: |
Customised |
Usage: |
High Temperature |
Shape: |
Bar/rod,tube |
Processing Service: |
Bending,welding,moulding,milling,drilling,punching,cnc |
Precision: |
±0.001mm |
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Product Name: |
Ceramic Nozzle |
Feature: |
High Temperature Resistance |
Size: |
Customised |
Usage: |
High Temperature |
Shape: |
Bar/rod,tube |
Processing Service: |
Bending,welding,moulding,milling,drilling,punching,cnc |
Precision: |
±0.001mm |

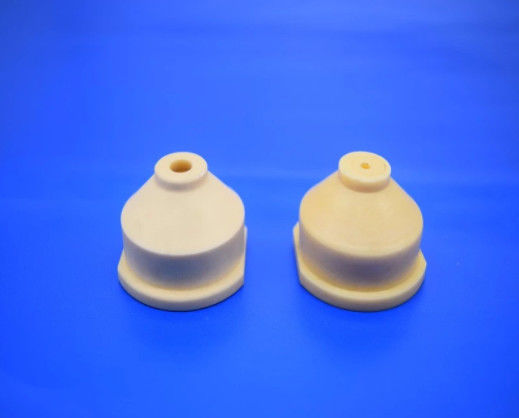

High Pressure resistance Rotary ZrO2 Zirconia Ceramic Sandblast Nozzles
We now provide the larger ceramic nozzle tips which are more commonly used for industrial size sandblasting equipment but they can be used for smaller systems as well. This size is known as the C1 which is 3-3/4″ long.
Benefits to Using these Larger Nozzle Tips:
Longer Lasting: the longer length of almost 4″ and more ceramic material allow these high nozzle tips to last longer. The are great for folks that blast large areas which require less downtime replacing nozzles in the middle of a project.
Great for High or Lower Output: these industrial nozzles are perfect for high output sandblasting. However, they are great for smaller projects requiring less abrasive output with longer lifespans– simply choose a smaller inner diameter size such as the 3/32″ ID or 1/8″ ID.
Ceramic material composition:
A. 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
B. TTZ: Magnesia partially stabilized Zirconia (ZrO2)
C. YTZP: Yttria partially stabilized Zirconia (ZrO2)
D. ZDY: Yttria fully stabilized Zirconia (ZrO2)
The properties of ceramic:
A. Excellent physical & chemical stability ·High temperature resistance
B. Excellent wear & pressure & corrosion& insulation resistance and thermal conductivity
| Properties | Units | AL2O3 | ZrO2 | SiC | Si3N4 |
| Density | g/cm3 | 3.65-3.93 | 5.95-6.0 | 3.12 | 3.23 |
| Water absorption | 0 | 0 | 0 | 0 | 0 |
| Poission`s ratio | / | 0.21-0.22 | 0.3 | 0.17 | 0.26 |
| HV hardness hv | MPa | 1650 | 1300-1365 | 2800 | 1500 |
| Flexural strength | MPa | 310 | 950 | 390 | 720 |
| Heat conductivity | W/m*k | 26-30 | 2-2.2 | 120 | 25 |
| Electrical resistivity | Ω*mm2/m | >1016 | >1015 | >103 | >1013 |
| Dielectric constant | / | 9.6 | 29 | 9.66-10.03 | / |
| Dielectric strength | KV/mm | 8.7 | 9 | / | / |
| Coefficientof thermal expansion | 10-16/k | 7.9-8.5 | 10.5 | 3 | 3.2 |
| Modulus of elasticity young`s mod | GPa | 280-340 | 210 | 440 | 300 |
| Flexural strength(700℃) | MPa | 230 | 210 | 380 | 450 |
| Compressive strength | MPa | 2200 | 2000 | 1800 | 2300 |
| Max use temperature | ℃ | 1750 | 1050 | 1550 | 1050 |
| Resistance to acid alkaline | / | high | high | high | high |
| Thermal shock resistance | T(℃) | 180-220 | 280-350 | 230-260 | / |
| Fracture toughness | MPa*m1/2 | 4.2 | 10 | 3.9 | 6.2 |
| Tensile strength | MPa | 248 | 250 | / | / |
produce parameters
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
Additional Information:
A. In stock items will typically ship in a few working days.
B. Unit price and estimated ship dates will be calculated when the length and quantity are specified.
C. Diameter tolerance ± 3% or ± 0.003" (0.076 mm), Straightness: ≤ 0.003"/1.000" cumulative.
D. Can be customized
Customization:
As a manufacturer of ceramic parts, we offer customization of ceramic special sizes and shapes.High Precision, Fast Delivery Time, High Composition (with test report).
Lead time: 10-20 working days for the mass with free sample of mass ; Minimum order quantity : 1qty
Our Company
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
Ceramic Nozzle and Insulation Sleeves for welding equipment
Quality guarantee:mass produce by 100% inspection
