Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 100000p/month
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Material: |
Alumina Ceramic |
Feature: |
High Temperature Resistance |
Size: |
Customised |
Usage: |
For Welding |
Shape: |
Customized |
Raw Material: |
95%-99% Alumina Ceramic |
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Material: |
Alumina Ceramic |
Feature: |
High Temperature Resistance |
Size: |
Customised |
Usage: |
For Welding |
Shape: |
Customized |
Raw Material: |
95%-99% Alumina Ceramic |
ceramic guide pin,stud welding pins,welding ceramics,ceramic nozzle,welding equipment

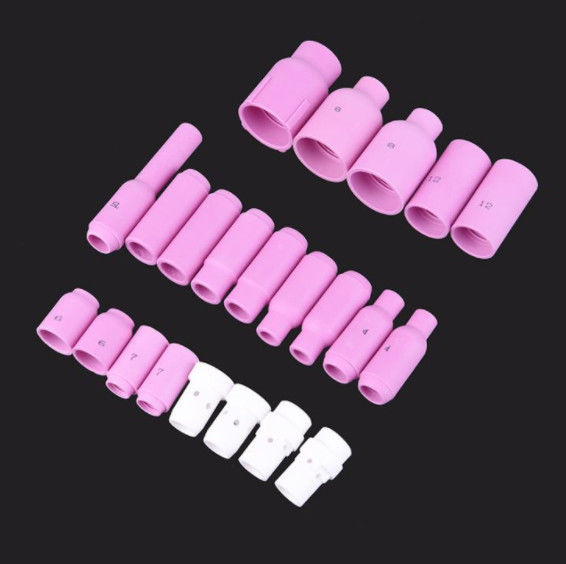

Applications: Ceramic Nozzle and Insulation Sleeves are widely used as components of welding torches.
Material: 95%Alumina
Forming Method: Injection Molding
Color: Pink and White
Features: They have excellent heating-conveying and heat-transfer characteristics and extreme thermal and mechanical resistance.
Specification
| ALUMINA(Al₂O₃)Main Parameter:(Chemical/physical) | ||||
| Property | Item | Unit | ALUMINA | |
| General properties | Main chemical ingredient | Al₂O₃ 76% | ||
| Bulk Density | g/cm³ | 3.2 | ||
| Color | - | Pink | ||
| Water absorption | % | 0.6 | ||
| Main Characteristics | High Heat Resistance | |||
| Main Applications | *Welding Nozzle*Nozzle for Glass Fiber manufacturing | |||
| Mechanical Properties | Flexural Strength | Mpa | 120 | |
| Elastic Modulus | Gpa | 160 | ||
| Vickers Hardness | Gpa | 9 | ||
| Compressive Strength 20℃ | Mpa | - | ||
| Fracture Toughness(k l c) | Mpa*M*1/2 | - | ||
| Thermal Properties | Thermal conductivity(20℃) | w/mk | 8 | |
| Thermal Shock | ℃ | 320 | ||
| Coefficient of Thermal expansion (40-400℃) | 1x10-6/℃ | 7.1 | ||
| Coefficient of Thermal expansion (40-800℃) | 1x10-6/℃ | 7.5 | ||
| Electrical Properties | Dielectric Strength(1mhz) | kv/mm | 12 | |
| Dielectric Constant(1MHZ) | 25℃ | 8.4 | ||
| Volume Resistivity | ohm-cm(20℃) | ＞10^14 | ||
| ohm-cm(300℃) | 10^10 | |||
| ohm-cm(500℃) | 10^8 | |||
Our Company
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
Ceramic Nozzle and Insulation Sleeves for welding equipment
Quality guarantee:mass produce by 100% inspection
