Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 100000p/month
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Product Name: |
Ceramic Nozzle |
Feature: |
High Temperature Resistance/high Wear Resistance/high Corrosion Resistance |
Size: |
Customised |
Usage: |
Wear Resisting Material |
Shape: |
Customized |
Processing Service: |
Bending,welding,moulding,milling,drilling,punching,cnc |
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Product Name: |
Ceramic Nozzle |
Feature: |
High Temperature Resistance/high Wear Resistance/high Corrosion Resistance |
Size: |
Customised |
Usage: |
Wear Resisting Material |
Shape: |
Customized |
Processing Service: |
Bending,welding,moulding,milling,drilling,punching,cnc |

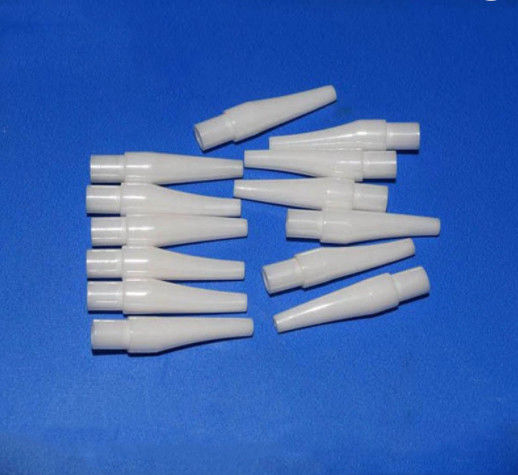

Ceramic Sandblasting Nozzle High Pressure Al2o3 Alumina Nozzles Customized Industrial Nozzles For Sandblasting Equipment
Sand blasting nozzles are made for specific uses depending on the kind of abrasive used and application. Nozzles are available for both light and heavy duty jobs and are designed to give a uniform finish to the object they are being used on.
nozzle 1/8" i.d. for pressure type abrasive blasting systems, portable and cabinet style
Manufactured by a Veteran-Owned Business.
Ceramic Nozzles Are Long Wearing
Common Sized Ceramic Nozzles Fit Many Models Of Blasters
Ceramic material composition:
A. 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
B. TTZ: Magnesia partially stabilized Zirconia (ZrO2)
C. YTZP: Yttria partially stabilized Zirconia (ZrO2)
D. ZDY: Yttria fully stabilized Zirconia (ZrO2)
The properties of ceramic:
A. Excellent physical & chemical stability ·High temperature resistance
B. Excellent wear & pressure & corrosion& insulation resistance and thermal conductivity
| Properties | Units | AL2O3 | ZrO2 | SiC | Si3N4 |
| Density | g/cm3 | 3.65-3.93 | 5.95-6.0 | 3.12 | 3.23 |
| Water absorption | 0 | 0 | 0 | 0 | 0 |
| Poission`s ratio | / | 0.21-0.22 | 0.3 | 0.17 | 0.26 |
| HV hardness hv | MPa | 1650 | 1300-1365 | 2800 | 1500 |
| Flexural strength | MPa | 310 | 950 | 390 | 720 |
| Heat conductivity | W/m*k | 26-30 | 2-2.2 | 120 | 25 |
| Electrical resistivity | Ω*mm2/m | >1016 | >1015 | >103 | >1013 |
| Dielectric constant | / | 9.6 | 29 | 9.66-10.03 | / |
| Dielectric strength | KV/mm | 8.7 | 9 | / | / |
| Coefficientof thermal expansion | 10-16/k | 7.9-8.5 | 10.5 | 3 | 3.2 |
| Modulus of elasticity young`s mod | GPa | 280-340 | 210 | 440 | 300 |
| Flexural strength(700℃) | MPa | 230 | 210 | 380 | 450 |
| Compressive strength | MPa | 2200 | 2000 | 1800 | 2300 |
| Max use temperature | ℃ | 1750 | 1050 | 1550 | 1050 |
| Resistance to acid alkaline | / | high | high | high | high |
| Thermal shock resistance | T(℃) | 180-220 | 280-350 | 230-260 | / |
| Fracture toughness | MPa*m1/2 | 4.2 | 10 | 3.9 | 6.2 |
| Tensile strength | MPa | 248 | 250 | / | / |
produce parameters
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
Additional Information:
A. In stock items will typically ship in a few working days.
B. Unit price and estimated ship dates will be calculated when the length and quantity are specified.
C. Diameter tolerance ± 3% or ± 0.003" (0.076 mm), Straightness: ≤ 0.003"/1.000" cumulative.
D. Can be customized
Customization:
As a manufacturer of ceramic parts, we offer customization of ceramic special sizes and shapes.High Precision, Fast Delivery Time, High Composition (with test report).
Lead time: 10-20 working days for the mass with free sample of mass ; Minimum order quantity : 1qty
Our Company
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
Ceramic Nozzle and Insulation Sleeves for welding equipment
Quality guarantee:mass produce by 100% inspection
