|Place of Origin:||Made in China|
|Brand Name:||wuxi special ceramic|
|Minimum Order Quantity:||10p|
|Place Of Origin:||Jiangsu China||Type:||Ceramic Parts|
|Application:||Industrial Ceramic,machinery,electronic,chemical||Processing Service:||Bending,welding,cutting,punching,moulding,grinding,milling,drilling,cnc|
|Dimension:||Customized||Feature:||High Hardness,high Strength,high Temperature|
|Water Absorption:||0||Perennial Temperature:||800℃|

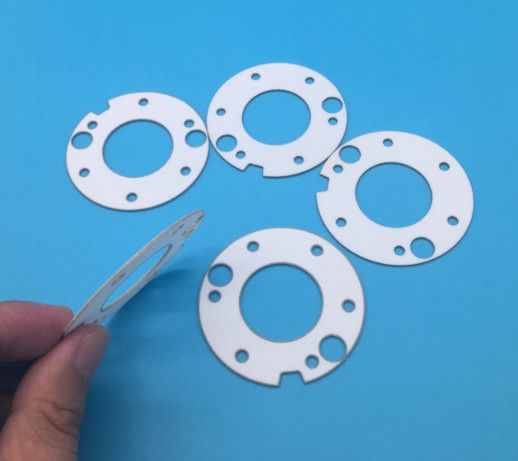

Micalex Macor Machinable Glass Ceramic Substrate,
Micalex Machinable Glass Ceramic Disc,
Micalex Macor Ceramic Machining Sheet
laser cutting heat sink electronic macor ceramic disc substrate
Macor mica machinable Ceramics:
Microcrystalline glass ceramics, also known as machinable ceramics, are mica glass-ceramics with synthetic mica as the main crystalline phase, and are ceramic materials that can be machined. Microcrystalline glass ceramics have excellent processing properties, vacuum properties, electrical insulation properties, and high temperature and chemical resistance.
A. High intensity and light weight
Glass-ceramics are harder than natural stone and are not easily damaged. The thickness of the material can be matched with the construction method, which is in line with the light and sturdy mainstream of modern buildings.
B. rich and varied colors
Glass-ceramics are made by the accumulation method. There is no natural stone texture (which breaks from here). The accumulation method is a method that can produce rich color tones, with a white color as the basic color and a rich color system, and white The three colors of rice and gray are most often used.
|Machinable mica (Macor) Ceramic Properties|
|Normal Temperature Outlet Rate||ml/S·cm2||8.8*10-9|
|Helium Transmission Rate||ml/S||1*10-10|
|Vickers Hardness (Load 500g)||Gpa(Kg/mm2)||11.5(1175)|
|Flexural Strength (20°C)||Mpa||>108|
|Compressive Strength (20°C)||Mpa||>508|
|Modulus of Elasticity (25°C)||Gpa||65|
|Thermal Conductivity (25°C)||W/m.K||1.71|
|Thermal Expansion Coefficient||10-7/°C||72|
|Thermal Shock Resistance||T°C||200|
Machinery, electronic, limitary, aerospace etc.
Specific application: Machined equipment high temperature insulated parts, electronic equipment high temperature insulated parts.
Macor ceramics are particularly suitable for automotive, military, aerospace, precision instruments, medical equipment, electric vacuum devices, electron beam exposure machines, textile machinery, sensors, mass spectrometers and energy spectrometers. For some thin-walled coil bobbins, precision instrumented insulation brackets, and complex-shaped devices with high precision requirements, glass-ceramics are more suitable, and they can be processed into any shape.
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
mass production by 100% inspection
Contact Person: Zhu
