Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$0.1~us$10/p

Packaging Details: carton,wooden,box,pallet

Delivery Time: negotiable

Payment Terms: T/T

Supply Ability: 10000P/Month

Get Best Price
High Light:

Micalex Macor Machinable Ceramic

,

Micalex Cnc Machining Macor Ceramic

,

Micalex Macor Machinable Ceramic Parts

Place Of Origin:
Jiangsu China
Type:
Ceramic Parts
Application:
Industrial Ceramic,machinery,electronic,chemical
Processing Service:
Bending,welding,cutting,punching,moulding,grinding,milling,drilling,cnc
Color:
White
Shape:
Customized
Dimension:
Customized
Feature:
High Hardness,high Strength,high Temperature
Density:
2.6g/cm3
Main Composition:
Mg3K[AlF2O(SiO3)3],SiO2
Water Absorption:
0
Perennial Temperature:
800℃
Place Of Origin:
Jiangsu China
Type:
Ceramic Parts
Application:
Industrial Ceramic,machinery,electronic,chemical
Processing Service:
Bending,welding,cutting,punching,moulding,grinding,milling,drilling,cnc
Color:
White
Shape:
Customized
Dimension:
Customized
Feature:
High Hardness,high Strength,high Temperature
Density:
2.6g/cm3
Main Composition:
Mg3K[AlF2O(SiO3)3],SiO2
Water Absorption:
0
Perennial Temperature:
800℃
Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule

Product Description

Macor mica machinable Ceramics:

Macor ceramics have excellent processing properties, vacuum properties, electrical insulation properties, and high temperature and chemical resistance.

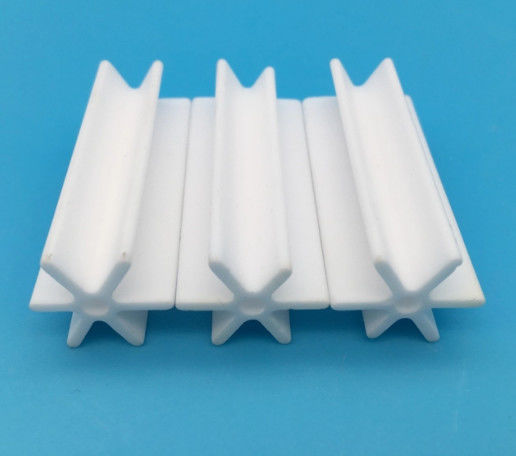

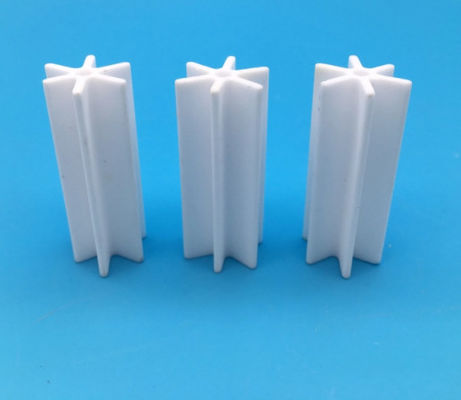

Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule 0Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule 1







Data sheet



Machinable mica (Macor) Ceramic Properties
Item Unit Typical Values
Physical Properties
Color   White
Main Composition   Mg3K[AlF2O(SiO3)3],SiO2
Density g/cm3 2.60
Apparent Porosity   0.07%
Water Absorption   0
Normal Temperature Outlet Rate ml/S·cm2 8.8*10-9
Helium Transmission Rate ml/S 1*10-10
Mechanical Properties
Rockwell Hardness(45N) R45N 40
Vickers Hardness (Load 500g) Gpa(Kg/mm2) 11.5(1175)
Flexural Strength (20°C) Mpa >108
Compressive Strength (20°C) Mpa >508
Modulus of Elasticity (25°C) Gpa 65
Impact Toughness KJ/m2 >2.56
Thermal Properties
Thermal Conductivity (25°C) W/m.K 1.71
Thermal Expansion Coefficient 10-7/°C 72
Thermal Shock Resistance T°C 200
Perennial Temperature °C 800
Electric Properties
Dielectric Strength KV/mm >40
Volume Resistivity(25°C) Ω.cm 1.08*1016
Volume Resistivity(200°C) Ω.cm 1.5*1012
Volume Resistivity(500°C) Ω.cm 1.1*109
Dielectric Loss   1-4*10-3
Dielectric Constant Er 6-7







Company Introduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.



Quality Control

mass production by 100% inspection
