Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Industrial Ceramic,machinery,electronic,chemical |
Processing Service: |
Bending,welding,cutting,punching,moulding,grinding,milling,drilling,cnc |
Color: |
White |
Shape: |
Customized |
Dimension: |
Customized |
Feature: |
High Hardness,high Strength,high Temperature |
Density: |
2.6g/cm3 |
Main Composition: |
Mg3K[AlF2O(SiO3)3],SiO2 |
Water Absorption: |
0 |
Perennial Temperature: |
800℃ |
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Industrial Ceramic,machinery,electronic,chemical |
Processing Service: |
Bending,welding,cutting,punching,moulding,grinding,milling,drilling,cnc |
Color: |
White |
Shape: |
Customized |
Dimension: |
Customized |
Feature: |
High Hardness,high Strength,high Temperature |
Density: |
2.6g/cm3 |
Main Composition: |
Mg3K[AlF2O(SiO3)3],SiO2 |
Water Absorption: |
0 |
Perennial Temperature: |
800℃ |

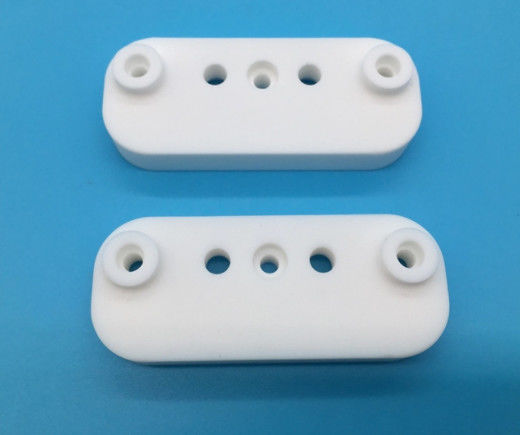

customized industrial machinable macor mica glass micalex parts
Product Description
A. High intensity and light weight
Glass-ceramics are harder than natural stone and are not easily damaged. The thickness of the material can be matched with the construction method, which is in line with the light and sturdy mainstream of modern buildings.
B. rich and varied colors
Glass-ceramics are made by the accumulation method. There is no natural stone texture (which breaks from here). The accumulation method is a method that can produce rich color tones, with a white color as the basic color and a rich color system, and white The three colors of rice and gray are most often used.
C. Electrical Properties
Microcrystalline glass ceramics is an excellent high-temperature electrical insulating material that can be used in many electrical equipments. It has high electrical insulation strength.
Data sheet
| Machinable mica (Macor) Ceramic Properties | ||
| Item | Unit | Typical Values |
| Physical Properties | ||
| Color | White | |
| Main Composition | Mg3K[AlF2O(SiO3)3],SiO2 | |
| Density | g/cm3 | 2.60 |
| Apparent Porosity | 0.07% | |
| Water Absorption | 0 | |
| Normal Temperature Outlet Rate | ml/S·cm2 | 8.8*10-9 |
| Helium Transmission Rate | ml/S | 1*10-10 |
| Mechanical Properties | ||
| Rockwell Hardness(45N) | R45N | 40 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm2) | 11.5(1175) |
| Flexural Strength (20°C) | Mpa | >108 |
| Compressive Strength (20°C) | Mpa | >508 |
| Modulus of Elasticity (25°C) | Gpa | 65 |
| Impact Toughness | KJ/m2 | >2.56 |
| Thermal Properties | ||
| Thermal Conductivity (25°C) | W/m.K | 1.71 |
| Thermal Expansion Coefficient | 10-7/°C | 72 |
| Thermal Shock Resistance | T°C | 200 |
| Perennial Temperature | °C | 800 |
| Electric Properties | ||
| Dielectric Strength | KV/mm | >40 |
| Volume Resistivity(25°C) | Ω.cm | 1.08*1016 |
| Volume Resistivity(200°C) | Ω.cm | 1.5*1012 |
| Volume Resistivity(500°C) | Ω.cm | 1.1*109 |
| Dielectric Loss | 1-4*10-3 | |
| Dielectric Constant | Er | 6-7 |
Application industry:
Machinery, electronic, limitary, aerospace etc.
Specific application: Machined equipment high temperature insulated parts, electronic equipment high temperature insulated parts.
Macor ceramics are particularly suitable for automotive, military, aerospace, precision instruments, medical equipment, electric vacuum devices, electron beam exposure machines, textile machinery, sensors, mass spectrometers and energy spectrometers. For some thin-walled coil bobbins, precision instrumented insulation brackets, and complex-shaped devices with high precision requirements, glass-ceramics are more suitable, and they can be processed into any shape.
Company Introduce
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
Quality Control
mass production by 100% inspection
