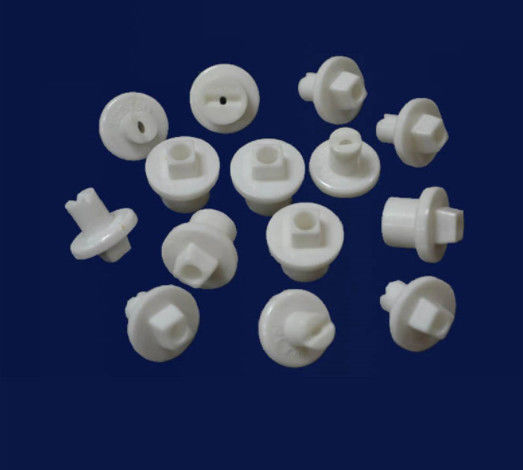

Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding

Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding

  • Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding
  • Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding
  • Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding
  • Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding
Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 100000p/month
Contact Now
Detailed Product Description
Application: Industrial Ceramic Type: Ceramic Parts
Product Name: Ceramic Nozzle Feature: High Temperature Resistance
Size: Customised Usage: High Temperature
Shape: Customized Processing Service: Bending,welding,moulding,milling,drilling,punching,cnc
Precision: ±0.001mm Material: Zirconia Ceramic,alumina Ceramic
High Light:

ceramic spray nozzle

,

alumina ceramic nozzles

,

aluminum oxide Spray nozzles

 Automatic Ceramic Nozzle Body Ceramic Spray Nozzle



Product Description



Alumina ceramics is high hardness,high heat resistance,good wear resistance,high electrical insulation,high corrosion resistance,etc



Features:



Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical

insulation properties together with high hardness and good wear resistance,but relatively low

strength and fracture toughness.Alumina ceramics are generally white but may also be pink or

ivory.The color is derived from either the sintering additives or impurities in the raw materials.

1. High hardness.

2. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is

widely used in areas where resistance to high temperatures is essential.

3. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.

4. High electrical resistivity : Alumina is an electrically insulating material.

5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and

alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.



Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding 0Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding 1







Ceramic material composition:

A.   95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride
B.   TTZ: Magnesia partially stabilized Zirconia (ZrO2)
C.   YTZP: Yttria partially stabilized Zirconia (ZrO2)
D.    ZDY: Yttria fully stabilized Zirconia (ZrO2)



The properties of ceramic:
A.  Excellent physical & chemical stability ·High temperature resistance
B.  Excellent wear & pressure & corrosion& insulation resistance and thermal conductivity


Properties Units AL2O3 ZrO2 SiC Si3N4
Density g/cm3 3.65-3.93 5.95-6.0 3.12 3.23
Water absorption 0 0 0 0 0
Poission`s ratio / 0.21-0.22 0.3 0.17 0.26
HV hardness hv MPa 1650 1300-1365 2800 1500
Flexural strength MPa 310 950 390 720
Heat conductivity W/m*k 26-30 2-2.2 120 25
Electrical resistivity Ω*mm2/m >1016 >1015 >103 >1013
Dielectric constant / 9.6 29 9.66-10.03 /
Dielectric strength KV/mm 8.7 9 / /
Coefficientof thermal expansion 10-16/k 7.9-8.5 10.5 3 3.2
Modulus of elasticity young`s mod GPa 280-340 210 440 300
Flexural strength(700℃) MPa 230 210 380 450
Compressive strength MPa 2200 2000 1800 2300
Max use temperature 1750 1050 1550 1050
Resistance to acid alkaline / high high high high
Thermal shock resistance T(℃) 180-220 280-350 230-260 /
Fracture toughness MPa*m1/2 4.2 10 3.9 6.2
Tensile strength MPa 248 250 / /




produce parameters



Dimensional accuracy Up to 0.001mm
Smoothness Highest possible mirror
Concentricity Up to 0.003mm
Parallelism Up to 0.002mm
The inner hole tolerance The minimum 0.005mm
Straight flute The narrowest 0.1x100mm
The thickness of the size Minimum to 0.02mm
The screw thread Minimum internal thread M2
Cylindricity Up to 0.004mm
The linear tolerance Up to 0.001mm
The smallest aperture The minimum 0.07mm
Precision process CNC maching,grinding,lapping
Surface finish Glazed,polishing or metallized



Additional Information:
A. In stock items will typically ship in a few working days.
B. Unit price and estimated ship dates will be calculated when the length and quantity are specified.
C. Diameter tolerance ± 3% or ± 0.003" (0.076 mm), Straightness: ≤ 0.003"/1.000" cumulative.
D. Can be customized



Customization:
As a manufacturer of ceramic parts, we offer customization of ceramic special sizes and shapes.High Precision, Fast Delivery Time, High Composition (with test report).



Lead time: 10-20 working days for the mass with free sample of mass ; Minimum order quantity : 1qty



Our Company



Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

Ceramic Nozzle and Insulation Sleeves for welding equipment







Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding 2

Automatic Body Aluminum Oxide Alumina Ceramic Spray Nozzle Industrial Moulding 3



      Quality guarantee:mass produce by 100% inspection
