Product Details
Place of Origin: China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: 1usd
Packaging Details: carton/pallet
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 1000000p/month
Dielectric Constant: |
9.6 |
Flexural Strength: |
400 MPa |
Insulation Resistance: |
1012 Ω·cm |
Dielectric Strength: |
14 KV/mm |
Volume Resistivity: |
1014 Ω·cm |
Breakdown Voltage: |
20 KV/mm |
Color: |
White/yellow |
Thermal Expansion: |
7.2 X 10-6/K |
Dielectric Constant: |
9.6 |
Flexural Strength: |
400 MPa |
Insulation Resistance: |
1012 Ω·cm |
Dielectric Strength: |
14 KV/mm |
Volume Resistivity: |
1014 Ω·cm |
Breakdown Voltage: |
20 KV/mm |
Color: |
White/yellow |
Thermal Expansion: |
7.2 X 10-6/K |

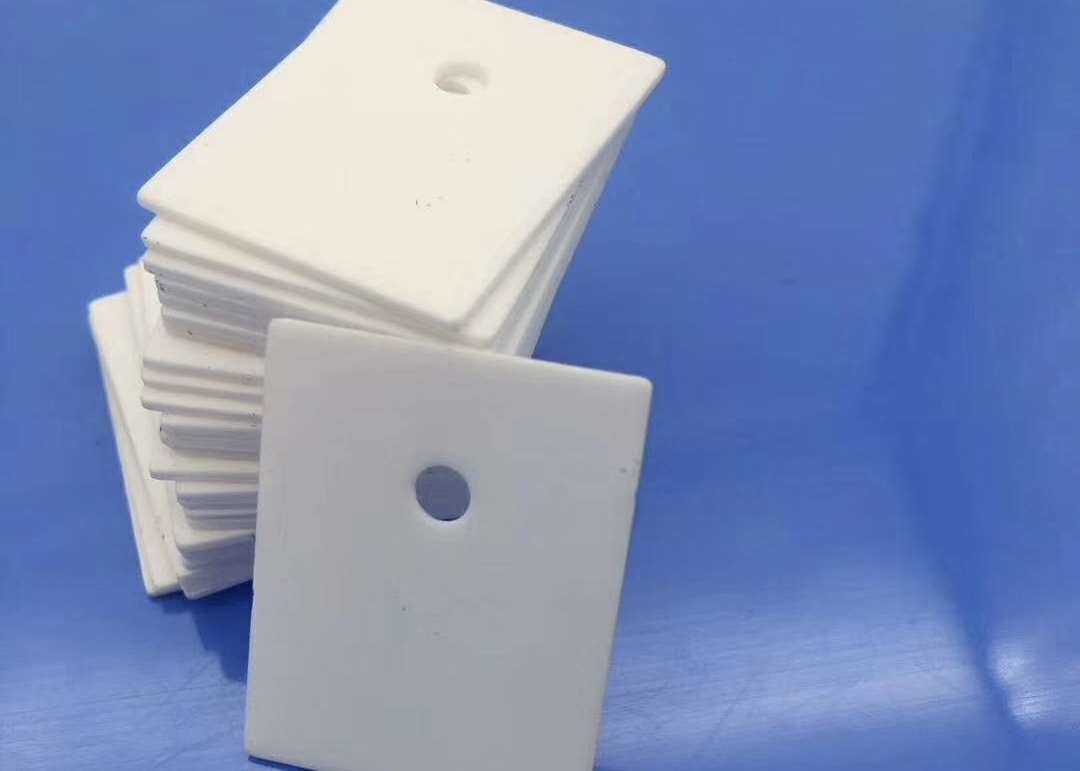

Alumina Oxide Ceramic, commonly known as Al2O3 Ceramic, is an exceptional advanced ceramic material that is widely utilized in various industrial applications owing to its robust mechanical properties and chemical stability. This remarkable material boasts a Young's Modulus of 320 GPa, which is a testament to its exceptional stiffness and resistance to elastic deformation. This high modulus of elasticity makes Al2O3 Ceramic an ideal choice for applications where rigidity and dimensional stability are critical under mechanical stress.
The flexural strength of Al2O3 Ceramic is another one of its notable attributes, with a significant value of 400 MPa. This strength is indicative of the material's ability to withstand bending and is crucial for its use in structural components that encounter heavy loads or stress. The inherent toughness of Aluminium Oxide Ceramics makes them suitable for use in environments that are prone to wear and tear, thereby ensuring longevity and reliability in their performance.
When it comes to thermal properties, Al2O3 Ceramic displays a moderate thermal expansion coefficient of 7.2 X 10-6/K. This relatively low thermal expansion ensures that the dimensions of the material remain stable across a range of temperatures, which is particularly important for applications that experience rapid temperature changes or extremes. The ability to maintain dimensional stability under thermal stress is a key characteristic that makes Al2O3 Ceramic an excellent candidate for high-temperature applications and those with stringent precision requirements.
The density of Al2O3 Ceramic ranges between 3.8-3.9 G/cm3, making it a medium-weight material that provides substantial mass without being overly heavy. This balance between weight and density is advantageous for applications that require a material with substantial heft yet manageable weight. The density also contributes to the overall strength and wear resistance of Aluminium Oxide Ceramics, further enhancing their suitability for demanding industrial applications.
Al2O3 Ceramic is highly sought after in the market for its chemical inertness as well. It resists attack from a wide range of chemical substances, including acids and alkalis. This resistance to corrosion is essential for applications that involve exposure to harsh chemicals or where cleanliness and purity are vital, such as in medical or food processing industries. The ability to withstand corrosive environments without degrading allows for a longer service life and reduces the need for frequent replacements, thereby offering cost savings in the long run.
The manufacturing processes for Alumina Oxide Ceramic components are diverse and can be tailored to achieve specific shapes, sizes, and finishes. This versatility in manufacturing is a significant advantage for industries that require custom-engineered components to meet precise specifications. With the capability to be machined to fine tolerances and a high-quality surface finish, Al2O3 Ceramic parts are an excellent choice for precision applications in electronics, aerospace, automotive, and more.
In conclusion, Al2O3 Ceramic is a material that offers a unique combination of mechanical strength, thermal stability, and chemical resistance. Its impressive Young's Modulus of 320 GPa, flexural strength of 400 MPa, moderate thermal expansion coefficient, and optimal density range make it a superior choice for a wide array of industrial applications. The durability and versatility of Aluminium Oxide Ceramics enable designers and engineers to overcome the challenges of demanding environments, paving the way for innovations and advancements in technology. Whether it is for structural components, thermal barriers, or wear-resistant surfaces, Al2O3 Ceramic stands out as a high-performance material that can meet and exceed the rigorous requirements of modern engineering.
Parameter | Value |
---|---|
Dielectric Strength | 14 KV/mm |
Thermal Expansion | 7.2 X 10 -6 /K |
Dielectric Constant | 9.6 |
Insulation Resistance | 10 12 Ω·cm |
Hardness | 9 Mohs |
Thermal Conductivity | 25 W/(m·K) |
Young's Modulus | 320 GPa |
Volume Resistivity | 10 14 Ω·cm |
Compressive Strength | 3000 MPa |
Density | 3.8-3.9 G/cm 3 |
The Wuxi Special Ceramic's Al2O3 Ceramic products, originating from the heart of China's advanced materials industry, are engineered with a blend of resilience and precision. These Alumina Oxide Ceramics are renowned for their exceptional insulation resistance of 10 12 Ω·cm, making them an ideal choice for applications where electrical insulation is of paramount importance. The material's compressive strength stands at an impressive 3000 MPa, ensuring that components can withstand extreme pressures without compromising their structural integrity.
Featuring a hardness of 9 Mohs, the Al2O3 Ceramic products by Wuxi Special Ceramic are almost as hard as diamond, which is a testament to their ability to resist wear and abrasion. This makes them suitable for use in environments that are highly abrasive or where components are subject to constant wear. The density of 3.8-3.9 G/cm 3 ensures that these ceramics possess a solid, robust quality, yet remain lighter than many metal counterparts, which is beneficial for various applications that require both durability and lightweight characteristics.
One of the primary application occasions for Al2O3 Ceramic is in the field of electronics, where components such as insulators, substrates, and electrical isolators rely on the material's high insulation resistance. Additionally, the thermal properties of Alumina Oxide Ceramics make them suitable for heat sinks and thermal barriers in high-temperature environments. Their ability to maintain stability under thermal stress also renders them perfect for furnace use in both laboratory and industrial settings.
In the realm of mechanical engineering, the compressive strength and hardness of Alumina Oxide Ceramics are leveraged in the creation of wear-resistant seals, pump liners, and bearings. The chemical resistance of Al2O3 Ceramics also allows for their use in chemical processing equipment, where components must not react with corrosive substances. The medical industry benefits from the biocompatibility of Al2O3 Ceramics, particularly for prosthetic devices and surgical instruments that require absolute precision and reliability.
Overall, the Wuxi Special Ceramic's Al2O3 Ceramic products are versatile and can be applied in scenarios that demand high performance and longevity. Whether in the harsh environments of space exploration or the delicate intricacies of biomedical implants, these ceramics stand as a testament to the innovation and quality that is synonymous with the Wuxi brand.
Experience the excellence of wuxi special ceramic with our premium Alumina Oxide Ceramics . Crafted with precision in China , our Al2O3 Ceramic products boast an impressive Compressive Strength of 3000 MPa , ensuring durability and longevity for your specific applications.
Our Aluminum Oxide Ceramic items are designed to withstand extreme conditions, featuring a Thermal Expansion rate of 7.2 X 10-6/K and an exceptional Thermal Conductivity of 25 W/(m·K) , facilitating efficient heat management.
Available in a classic White or a subtle Yellow , these ceramics can be tailored to fit the aesthetic requirements of your project while maintaining their technical superiority. With a Dielectric Constant of 9.6 , our ceramics provide reliable insulation for electrical applications.
Choose wuxi special ceramic for your Al2O3 Ceramic needs and take advantage of our cutting-edge product customization services. Whether for industrial use or specialized projects, our Aluminum Oxide Ceramic products are the epitome of quality and performance.
Q1: What is the composition of wuxi special ceramic's Al2O3 Ceramic product?
A1: The Al2O3 Ceramic product from wuxi special ceramic is composed of high-purity aluminum oxide (Al2O3). It is engineered for its excellent wear resistance, high temperature stability, and electrical insulation properties.
Q2: What applications is the Al2O3 Ceramic suitable for?
A2: wuxi special ceramic's Al2O3 Ceramic is suitable for a wide range of applications, including but not limited to electrical insulators, wear-resistant components, furnace liners, and substrates for electronic devices. Its properties make it ideal for use in industries such as electronics, metallurgy, chemical processing, and aerospace.
Q3: Can the Al2O3 Ceramic product withstand high temperatures?
A3: Yes, the Al2O3 Ceramic product from wuxi special ceramic is designed to withstand extremely high temperatures without compromising its structural integrity, making it ideal for high-temperature applications.
Q4: How does the Al2O3 Ceramic from wuxi special ceramic ensure quality?
A4: The Al2O3 Ceramic from wuxi special ceramic is manufactured in China under strict quality control measures to ensure consistency and superior performance. The use of high-purity aluminum oxide and advanced production techniques contribute to the quality assurance of this product.
Q5: Is the Al2O3 Ceramic product from wuxi special ceramic customizable?
A5: Yes, wuxi special ceramic offers customization options for their Al2O3 Ceramic product. Customers can request specific dimensions, shapes, and technical properties to suit their particular application needs.
