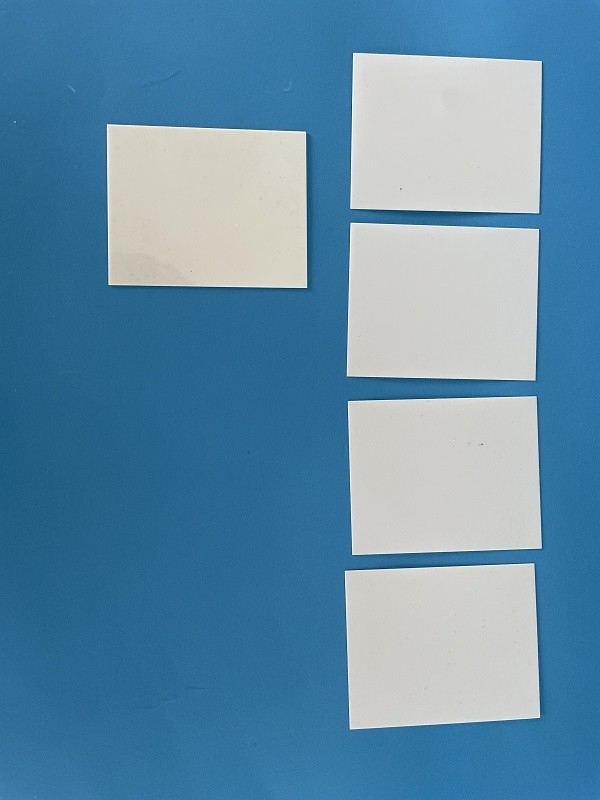

High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors

High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors

High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors
High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors
High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,wooden,box,pallet
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 5000p/Month
Contact Now
Detailed Product Description
Material: 99.6 Al2O3 Feature: High Purity Of 99.6&99.7%
Size: 60*48*0.5mm,60*48*0.25mm And Other Size Type: Ceramic Wafer
Name: High Purity Al2O3 Ceramic Wafer Shape: Customized
Application: Electronic Other Field Component: 99.6% Alumina
Thickness: 0.5mm&0.25&other Size Tolerance: ±0.005mm
Sample: Nogotiable MOQ: Nogotiable
High Light:

99.7% Al2o3 Ceramic Substrate

,

0.5mm Al2o3 Ceramic Substrate

,

99.6 Al2O3 Ceramics Substrate

Product Description

High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages,Chip Resistors





Alumina Ceramic:

Alumina ceramics are classified into high-purity type and ordinary type.
The high-purity alumina ceramics have a Al2O3 content of 99.9% or more. Since the sintering temperature is as high as 1650-1990 ° C and the transmission wavelength is 1 to 6 μm, the molten glass is generally used to replace the platinum crucible,it can be used as an integrated circuit substrate and high-frequency insulation material in the electronics industry.

Alumina ceramics is a versatile ceramic. Because of its superior performance, it has been widely used in modern society, satisfying the needs of daily use and special performance.All the above big-size ceramic sheets can be cut to specific dimensions per customers' requirements.



99.6% Alumina Application:

A.LED packages, Substrate for chip resistors, HIC substrates for heat dissipation, Power modules, FAX substrates for thermal printer head



Our alumina substrate has well-balanced properties of insulation, thermal conductivity and breaking strength. Moreover, one of the unique properties is its surface roughness. We can provide the ceramic substrate which is excellent quality.



Property for 99.5%&99.6% Al2O3 ceramic substrate:



A. Good smoothness / flatness with less porosity.

B. Excellent in adhesion with thin film and thick film materials.

C. Less variance in outline, plate thickness, slit pitch, etc.

D. Excellent in thermal shock resistance. High thermal conductivity and coefficient of thermal expansion similar to that of silicon.



High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors 0

High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors 1





date sheet

Name Ceramic Substrate
Color White(general)
Specifications Customized
Accuracy ±0.01
Density ≥3.88g/cm3
Hardness Rockwell hardness HRA89 (steel knife hardness HRC60) Mohs hardness is 9; HV1500-1700
Modulus of elasticity 380GPa
Bending strength 300Mpa
Compressive strength 2500MPa
Melting point 2050 ° C
High temperature resistance 1800 ° C
Thermal conductivity ≥30W/(m.K)
Thermal expansion coefficient 8.6X10-6/°C
Breakdown strength (insulation strength) 15KV/mm
Resistivity 1015/Ω.m





company information
Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors 2

High Purity 99.7% Al2o3 Ceramic Substrate For LED Packages Chip Resistors 3
