Insulated Black 94 ZrO2 Zirconia Ceramic Substrate Resistor Heat Sink High Hardness

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$1~us$100/P

Packaging Details: carton,wooden,box,pallet

Delivery Time: 30days

Payment Terms: T/T

Supply Ability: 1000000p/Month

Get Best Price
High Light:

94 zirconia ceramic substrate

,

94 ZrO2 substrate

,

94 ZrO2 ceramic resistor heat sink

Material:
Zirconia Ceramic
Type:
Plate
Color:
Customized
Shape:
Customized
Application:
Industrial Ceramic,machinery,electronic,chemical
Density:
6.0g/cm3
Feature:
High Hardness,high Strength,high Temperature
Zirconia Content:
94.4%
Water Absorption:
O
Material:
Zirconia Ceramic
Type:
Plate
Color:
Customized
Shape:
Customized
Application:
Industrial Ceramic,machinery,electronic,chemical
Density:
6.0g/cm3
Feature:
High Hardness,high Strength,high Temperature
Zirconia Content:
94.4%
Water Absorption:
O
Insulated Black 94 ZrO2 Zirconia Ceramic Substrate Resistor Heat Sink High Hardness

Insulated heat sink black ZrO2 Zirconia Ceramic resistor substrate sheet chip

Zirconium oxide ceramics are white, yellow or gray when containing impurities, and generally contain HfO 2, which is not easily separated. Pure ZrO2 has three crystal states under normal pressure. The production of zirconia ceramics requires the preparation of high-purity, good dispersion properties, ultra-fine particles, narrow particle size distribution, zirconia ultrafine powder preparation methods, zirconia purification mainly chlorination and thermal decomposition, alkali metal Oxidative decomposition method, lime melting method, plasma arc method, precipitation method, colloid method, hydrolysis method, spray pyrolysis etc.

We can produce it according to your drawing.



Data sheet below



item unit typical values
physical properties
color customized
density g/cm3 6
mechanical properties
rockwell hardess(45N) R45N 78
vickers hardness(load 500g) Gpa(Kg/mm2) 11.5(1175)
flexural strength(20℃) Mpa 800
compressive strength(20℃) Mpa 2000
modulus of elasticity(20℃) Gpa >200
fracture toughness(20℃) MPam1/2 9
thermal properties
thermal conductivity(20℃-400℃) W(m.k) 2.5
thermal expansiton coefficient 10-6/℃ 9.6
thermal shock resistance T℃ 250



Application industry:

Machinery,fiber optic,khife,medical,food etc.



Specific application:

plunger,ceramic shaft,fiber optic bushing,stub,grinding,ceramic knife,ceramic slide guide,machined plunger,mobile phone shell,watch case etc.





company information



Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

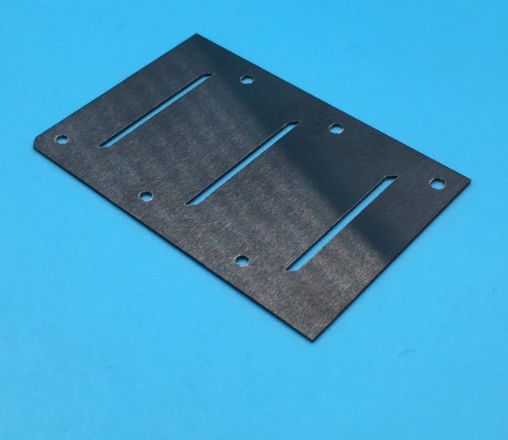

Insulated Black 94 ZrO2 Zirconia Ceramic Substrate Resistor Heat Sink High Hardness 0

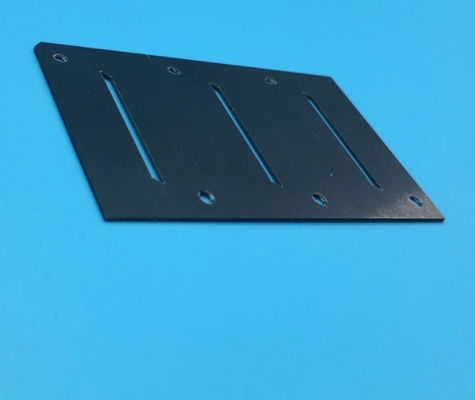

Insulated Black 94 ZrO2 Zirconia Ceramic Substrate Resistor Heat Sink High Hardness 1
