High quality,small trial produce and quick delivery.

|
| Place of Origin: | Made in China |
| Brand Name: | wuxi special ceramic |
| Minimum Order Quantity: | 10p |
|---|---|
| Price: | us$1~us$100/P |
| Packaging Details: | carton,wooden,box,pallet |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 5000p/Month |
| Material: | 99.6,99.7 Al2O3 | Feature: | High Hardness,high Strength,high Heat Conductivity |
|---|---|---|---|
| Size: | 60*48*0.5mm,60*48*0.25mm | Type: | Ceramic Plate |

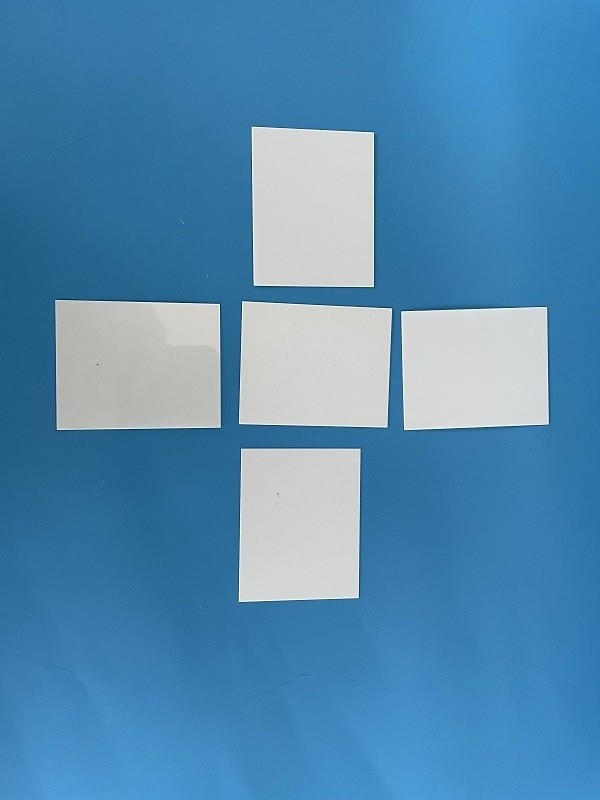

| Name: | Al2O3 Ceramic Plate | Shape: | Rectangle |
| Application: | Electronic,chemical | Component: | 99.6%,99.7%alumina |
| High Light: | 0.25mm Al2o3 Ceramic Substrate,99.5 Al2o3 Ceramic Substrate,Electronic Al2o3 Ceramic Substrate |
||
Alumina Ceramic:
Alumina ceramics are classified into high-purity type and ordinary type.
The high-purity alumina ceramics have a Al2O3 content of 99.9% or more. Since the sintering temperature is as high as 1650-1990 ° C and the transmission wavelength is 1 to 6 μm, the molten glass is generally used to replace the platinum crucible,it can be used as an integrated circuit substrate and high-frequency insulation material in the electronics industry.
Alumina ceramics is a versatile ceramic. Because of its superior performance, it has been widely used in modern society, satisfying the needs of daily use and special performance.All the above big-size ceramic sheets can be cut to specific dimensions per customers' requirements.
99.6% Alumina Application:
A.LED packages, Substrate for chip resistors, HIC substrates for heat dissipation, Power modules, FAX substrates for thermal printer head
B.Various processing is available (thin film metalization, thick film metalization, glaze, etc.)
Our alumina substrate has well-balanced properties of insulation, thermal conductivity and breaking strength. Moreover, one of the unique properties is its surface roughness. We can provide the ceramic substrate which is excellent in adhesion with a thin film and thick film metalization due to fine particles.
date sheet
| Name | Ceramic Substrate |
| Color | White(general) |
| Specifications | Customized |
| Accuracy | ±0.01 |
| Density | ≥3.88g/cm3 |
| Hardness | Rockwell hardness HRA89 (steel knife hardness HRC60) Mohs hardness is 9; HV1500-1700 |
| Modulus of elasticity | 380GPa |
| Bending strength | 300Mpa |
| Compressive strength | 2500MPa |
| Melting point | 2050 ° C |
| High temperature resistance | 1800 ° C |
| Thermal conductivity | ≥30W/(m.K) |
| Thermal expansion coefficient | 8.6X10-6/°C |
| Breakdown strength (insulation strength) | 15KV/mm |
| Resistivity | 1015/Ω.m |
company information
Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
