High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit

High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit

High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit
High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit
High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,wooden,box,pallet
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 5000p/Month
Contact Now
Detailed Product Description
Material: Al2O3 Feature: High Hardness,high Strength,high Temperature
Size: 60*48*0.25mm Type: Ceramic Wafer
Name: Al2O3 Ceramic Wafer Shape: Rectangle
Application: Industrial Ceramic,machinery,electronic,chemical Working Temperature: >1200℃
Process Service: Bending,cutting,punching,grinding,milling,drilling,laser,cnc Component: 99.6%,99.7%alumina
High Light:

Alumina Ceramic Thin Film Substrates

,

99.7% Alumina Ceramic Substrates

,

Electrocircuit Alumina Ceramic Substrates

Product Description

High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit





Alumina Ceramic:

Alumina ceramics are ceramic materials based on alumina (Al2O3) for thick film integrated circuits. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It should be noted that ultrasonic cleaning is required. Alumina ceramics is a versatile ceramic. Because of its superior performance, it has been widely used in modern society, satisfying the needs of daily use and special performance.



Alumina ceramics are classified into high-purity type and ordinary type.
The high-purity alumina ceramics have a Al2O3 content of 99.9% or more. Since the sintering temperature is as high as 1650-1990 ° C and the transmission wavelength is 1 to 6 μm, the molten glass is generally used to replace the platinum crucible; Sexual and alkali-resistant metal corrosion is used as a sodium lamp; it can be used as an integrated circuit substrate and high-frequency insulation material in the electronics industry.

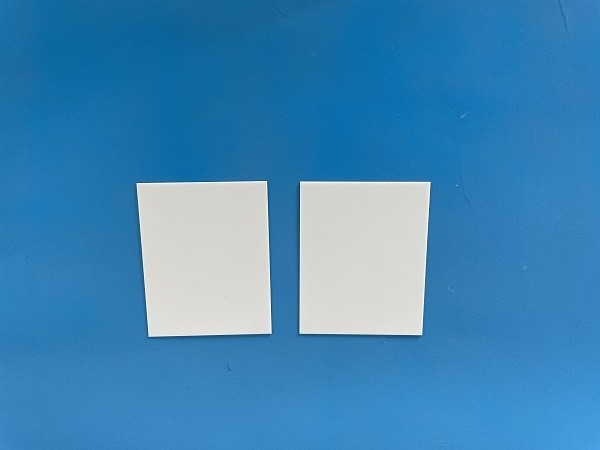

High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit 0

High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit 1





date sheet

Name Ceramic Substrate
Color White(general)
Specifications Customized
Accuracy ±0.01
Density ≥3.88g/cm3
Hardness Rockwell hardness HRA89 (steel knife hardness HRC60) Mohs hardness is 9; HV1500-1700
Modulus of elasticity 380GPa
Bending strength 300Mpa
Compressive strength 2500MPa
Melting point 2050 ° C
High temperature resistance 1800 ° C
Thermal conductivity ≥30W/(m.K)
Thermal expansion coefficient 8.6X10-6/°C
Breakdown strength (insulation strength) 15KV/mm
Resistivity 1015/Ω.m





company information
Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit 2

High Purity 99.7% Alumina Ceramic Thin Film Substrates For Electrocircuit 3
