High Purity 99.6% Al2O3 Alumina Ceramic Substrate 0.30mm 0.50mm Thick

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$1~us$100/P

Packaging Details: carton,wooden,box,pallet

Delivery Time: 30days

Payment Terms: T/T

Supply Ability: 5000p/Month

Get Best Price
High Light:

99.6% Al2O3 Alumina Ceramic Substrate

,

0.50mm Thick Alumina Ceramic Substrate

,

High Purity Al2O3 Ceramics Substrate

Material:
96%,99.6%,99.7% Alumina
Feature:
High Hardness,high Strength,high Temperature
Size:
Customized
Type:
Ceramic Substrate
Name:
Alumina Ceramic Substrate
Shape:
Customized
Application:
Industrial Ceramic,machinery,electronic,chemical
Working Temperature:
>1000℃
Process Service:
Bending,cutting,punching,grinding,milling,drilling,laser,cnc
Component:
96%,99.6%,99.7%alumina
Material:
96%,99.6%,99.7% Alumina
Feature:
High Hardness,high Strength,high Temperature
Size:
Customized
Type:
Ceramic Substrate
Name:
Alumina Ceramic Substrate
Shape:
Customized
Application:
Industrial Ceramic,machinery,electronic,chemical
Working Temperature:
>1000℃
Process Service:
Bending,cutting,punching,grinding,milling,drilling,laser,cnc
Component:
96%,99.6%,99.7%alumina
High Purity 99.6% Al2O3 Alumina Ceramic Substrate 0.30mm 0.50mm Thick

Main characteristics of alumina ceramic substrate
1. Good thermal shock resistance, greater than 220 T(ºC)
2. High thermal conductivity of high purity alumina, up to 30 W/m.k at 25ºC
3. Good surface roughness, flatness to be 0.05mm with min. warpage, deformation
4. High dielectric strength, low dielectric constant, and dielectric loss.
5. Laser cutting or precision machining cutting makes tight tolerance.



The specification of ceramic substrate
1. Materials: 96% alumina, 99% alumina, 99.5% alumina,99.6% alumina, zirconia, silicon nitride, silicon carbide optional
2. Dimensional capability: the side length to be 500mm x 600mm, the thickness can be 0.15mm to 30mm
3. Surface treatment: lapping, fine ground, diamond-like polished to be Ra0.05, metallization, glazed



The description of alumina ceramic sheets
We have been making alumina (Aluminum oxide, Al2O3) ceramic sheets for over 12 years under rigorous quality control with carefully selected high purity ceramic materials ranging from 95% to 99.8%.
All these alumina substrate offer extraordinary properties of electrical insulation, thermal conductivity, breaking strength, and high-temperature resistance. Furthermore, one of the unique properties is its superb surface roughness to be Ra0.2 which results in excellent adhesion strength with a thin film and thick film metallization due to fine particles. Also, it can play a critical role in the sintering process which works as an alumina ceramic setter.
The regular forming methods we use include tape-casting, isostatic pressing, dry pressing. We are dealing with a variety of selection of thicknesses from small-size to large-size capability. With our comprehensive types of manufacturing types of equipment, we have the capability from prototyping to mass production in the short term.

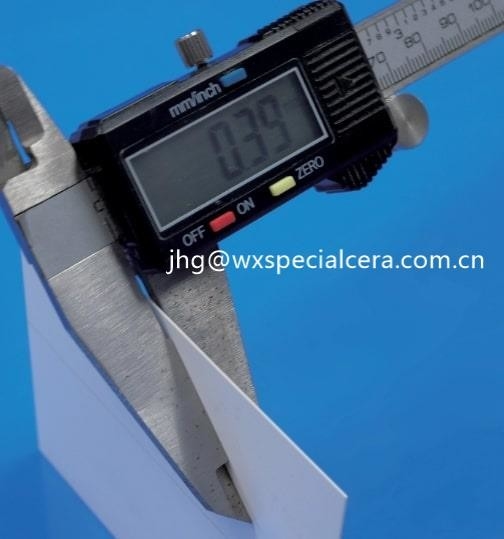

High Purity 99.6% Al2O3 Alumina Ceramic Substrate 0.30mm 0.50mm Thick 0

High Purity 99.6% Al2O3 Alumina Ceramic Substrate 0.30mm 0.50mm Thick 1





date sheet

Name Ceramic Substrate
Color White(general)
Specifications Customized
Accuracy ±0.01
Density w
Hardness Rockwell hardness HRA89 (steel knife hardness HRC60) Mohs hardness is 9; HV1500-1700
Modulus of elasticity 380GPa
Bending strength 300Mpa
Compressive strength 2500MPa
Melting point 2050 ° C
High temperature resistance 1800 ° C
Thermal conductivity 39W/(m.K)
Thermal expansion coefficient 8.6X10-6/°C
Breakdown strength (insulation strength) 15KV/mm
Resistivity 1015/Ω.m





company information
Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
