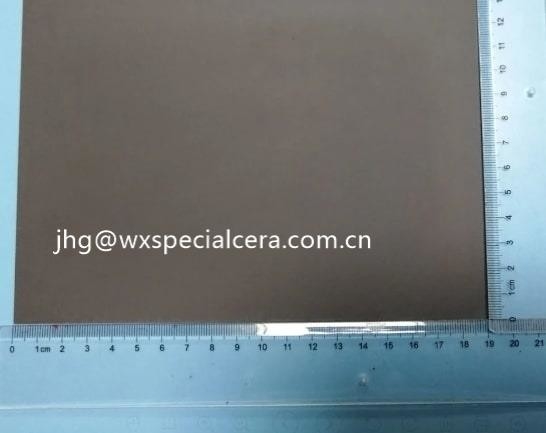

Customized Precision Silicon Nitride Si3n4 Ceramic Substrate For Electrical Car

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$1~us$100/P

Packaging Details: carton,wooden,box,pallet

Delivery Time: 30days

Payment Terms: T/T

Supply Ability: 5000p/Month

Get Best Price
High Light:

3.8g/cm3 Si3n4 Ceramic Substrate

,

Precision Si3n4 Ceramic Substrate

,

0.5mm Silicon Nitride Ceramics Substrate

Size:
Customized
Name:
Si3N4 Ceramic Substrate
Type:
Ceramic Substrate
Waviness:
0.7um
Density:
3.8g/cm3±0.10
Surface Roughness:
Both Side Polished
Thermal Conductivity:
≥80
Usage:
For Semiconductor Power Module
Origin:
China
Production Capacity:
3000p/month
Size:
Customized
Name:
Si3N4 Ceramic Substrate
Type:
Ceramic Substrate
Waviness:
0.7um
Density:
3.8g/cm3±0.10
Surface Roughness:
Both Side Polished
Thermal Conductivity:
≥80
Usage:
For Semiconductor Power Module
Origin:
China
Production Capacity:
3000p/month
Customized Precision Silicon Nitride Si3n4 Ceramic Substrate For Electrical Car

Customized Precision Silicon Nitride Si3n4 Ceramic Substrate For Electrical Car

Material Introduction:
Silicon Nitride (Si3N4) is a widely used ceramic material in high temperature application, it has high strength in both room temperature and high temperature condition, the strength of silicon nitride can be kept up to 1200ºC; the low coefficient of thermal expansion make it a ceramic material possessing excellent thermal shock resistance; at the same time, it also has good thermal conductivity.

The main features of the Si3N4 ceramic tray and substrate
A. High thermal conductivity ( up to 70 W/m.k), 3 times that of alumina ceramic substrate;
B. The thermal expansion coefficient (3.1×10-6/ºC) matches the semiconductor silicon material (3.5-4.0×10-6/ºC);
C. The bending strength is higher than that of the alumina substrate, which is twice that of the alumina substrate;
D. Excellent electrical performance, with extremely high insulation resistance and low dielectric loss;

The specification of the ceramic tray and substrate
A. The typical thickness of the silicon nitride substrate covers 0.30mm, 0.5mm, 0.635mm, 1.0mm
B. We are supplying with many round ceramic wafers, square & rectangular ceramic substrate
C. The biggest diameter of the round ceramic wafer can be up to 400mm in 3mm, 4mm, 5mm thick
D. The max. side-length of the square and rectangular ceramic substrate can be 400mm by 500mm
E. Surface treatment: it can be one-side, or double side polished to be Ra0.4 or better

Customized Precision Silicon Nitride Si3n4 Ceramic Substrate For Electrical Car 0



date sheet



Item Unit Typical Values
Physical Properties
Density g/cm3 >3.2
Mechanical Properties
Hardness HRA90
Vickers Hardness (Hv50) HV0.5 >1550
Modulus of Elasticity Gpa 290
Flexural Strength Mpa >600
Compressive Strength Mpa 2500
Fracture toughness Mpam1/2 >6.0
Thermal Properties
Maximum use temperature °C 1200
Thermal Conductivity W/(m.k) 15-20
Thermal Expansion Coefficient 10-6/°C >3.1
Thermal Shock Resistance T°C 500
Specific Heat Capacity KJ/kg.K 700
Electrical Properties
Dielectric Strength KV/mm 1
Dielectric Constant er
Volume Resistivity at 20°C Ω.cm 1.0X10(12)


company information
Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
