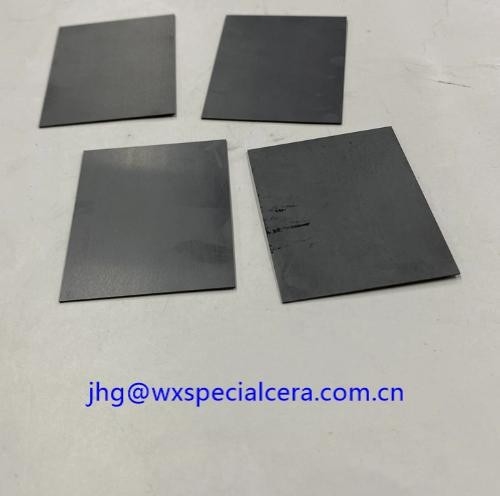

Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm

Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm

  • Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm
  • Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm
  • Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm
  • Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm
  • Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm
  • Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm
Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,wooden,box,pallet
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 5000p/Month
Contact Now
Detailed Product Description
Type: Si3N4 Ceramic Wafer Color: Grey
Flexural Strength: ≥600Gpa Compressive Strength: 2500Mpa
Application: Semiconductor Surface Roughness: 0.7
Thickness: 0.3mm,0.5mm,0.635mm,1.0mm Peel Strength: ≥9.8
High Light:

Silicon Nitride Ceramic Substrate 1.0mm

,

2500Mpa Silicon Nitride Ceramic Substrate

,

HRA 90 Si3n4 Ceramic Substrate

Material Introduction:
Silicon Nitride (Si3N4) is a widely used ceramic material in high temperature application, it has high strength in both room temperature and high temperature condition, the strength of silicon nitride can be kept up to 1200ºC; the low coefficient of thermal expansion make it a ceramic material possessing excellent thermal shock resistance; at the same time, it also has good thermal conductivity

The specification of the ceramic tray and substrate
A.The typical thickness of the silicon nitride substrate covers 0.30mm, 0.5mm, 0.635mm, 1.0mm
B.The biggest diameter of the round ceramic wafer can be up to 400mm in 3mm, 4mm, 5mm thick

The main features of the Si3N4 ceramic tray and substrate
High thermal conductivity ( up to 70 W/m.k), 3 times of alumina ceramic substrate;

Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm 0



date sheet



Item Unit Typical Values
Physical Properties
Density g/cm3 >3.2
Mechanical Properties
Hardness HRA90
Vickers Hardness (Hv50) HV0.5 >1550
Modulus of Elasticity Gpa 290
Flexural Strength Mpa >600
Compressive Strength Mpa 2500
Fracture toughness Mpam1/2 >6.0
Thermal Properties
Maximum use temperature °C 1200
Thermal Conductivity W/(m.k) 15-20
Thermal Expansion Coefficient 10-6/°C >3.1
Thermal Shock Resistance T°C 500
Specific Heat Capacity KJ/kg.K 700
Electrical Properties
Dielectric Strength KV/mm 1
Dielectric Constant er
Volume Resistivity at 20°C Ω.cm 1.0X10(12)


company information
Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
