Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: rings
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 200000p/month
Application: |
Wire Guiding |
Customization: |
Possible |
Type: |
Customization |
Material: |
Alumina Ceramic |
Sample: |
Possible |
Product Name: |
Textile Ceramic |
Place Of Origin: |
China |
Surface: |
Polishing Finished |
Application: |
Wire Guiding |
Customization: |
Possible |
Type: |
Customization |
Material: |
Alumina Ceramic |
Sample: |
Possible |
Product Name: |
Textile Ceramic |
Place Of Origin: |
China |
Surface: |
Polishing Finished |

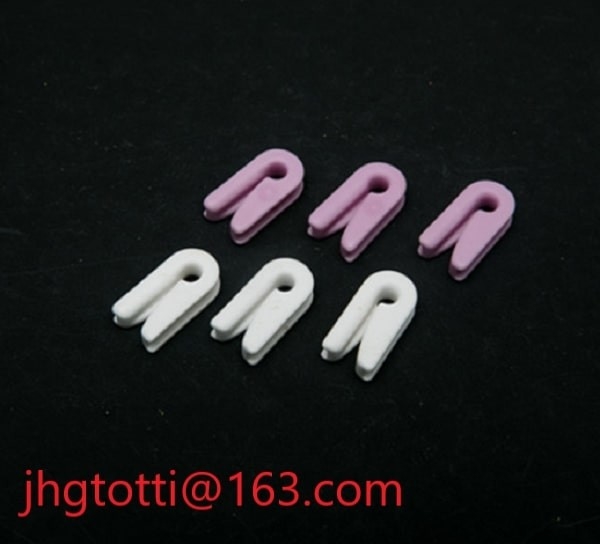

Alumina(Al2O3)Textile Ceramic Eyelets
Application: Textile ceramic parts are used in textile machineries to guide, to change direction, to twist or to control tension of textile yarns.
Features:A.Textile ceramic parts are high temperature resistant ceramics, the use temperature range is 650-1000 ℃. B. The textile ceramics have the properties of tensile strength and flexibility at room temperature and high temperature. C. Textile ceramic parts have excellent construction performance, and can be sticky, anchored, stitched and wrapped. D. Textile ceramics have excellent anti-vibration, impact and jolt performance. Excellent thermal insulation, electrical insulation and sealing performance of textile ceramics.
Specification
| Material code | characteristics | Density(g/cm³) | Young's Moulus(GPa) | Flexural strength(MPa) | Fracture Toughness(MPa*m1/2) | Thermal Expansion RT~800°) | Thermal Conductivity(w/m*k) | Volume Resistivity(Ω*cm) | ||
| ALP01 | General Purpose High Rigidiy | 3.9 | 370 | 440 | 3~4 | 7.7 | 33 | ＞10⋀14 | ||
| Alumina99.5% | ||||||||||
| ALP02 | High Purity High Rigidity | 3.9 | 370 | 450 | 3~4 | 7.9 | 30 | ＞10⋀14 | ||
| Alumina99.9% | ||||||||||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
quality guarantee:mass produce by 100% inspection
