High quality,small trial produce and quick delivery.
 |
| Place of Origin: | Made in China |
| Brand Name: | wuxi special ceramic |
| Model Number: | rings |
| Minimum Order Quantity: | 10p |
|---|---|
| Price: | us$0.1~us$10/p |
| Packaging Details: | carton,pallet |
| Delivery Time: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 200000p/month |
| Material: | Alumina Ceramics | Name: | Textile Ceramic Eyelets |
|---|---|---|---|
| Color: | White,red,yellow | Shape: | Customerized |
| Application: | Textile | Shape: | Ring |
| High Light: | High Purity Alumina Ceramic Rings,3.9g/cm3 Density Alumina Ceramic Rings,Textiles Al2O3 Ceramics Eyelets Guides |
||

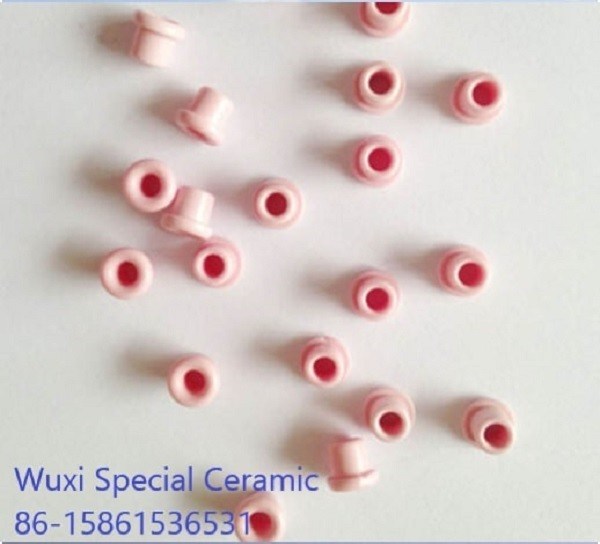

Alumina(Al2O3)Textile Ceramic Eyelets
Textile Ceramic eyelet guides (Alumina ceramic eyelet ) apply to the coiling machine and spinning and weaving machinery, is in common use fault silk another piece , is used to demand no high fault silk occasion. Silk thread slides when the job, in china eye outside, for reducing friction, must raise material hardness , smoothness and form. Our company selects and uses 99%'s Al2O3 , hardness greater than HRa88 , density 3.85, surpasses essence throwing Ra0.2.
The cramic eyelet is used to set less (friction is also less) location of pressure right. For cost reduction , according to using a request, smoothness polishing handicraft is allotted being (0.8 throw Ra) roughly , is throw (Ra accurate 0.4), surpasses essence throwing (Ra0.2). Be that single face is super-accurate at the same time mark throw and two-sided super-accurate throw. Specification of china eye many, select and use specification listing in common use in sopport a customer the day afer tomorrow now, also may demand making to order according to the customer.
Specification
| Material code | characteristics | Density(g/cm³) | Young's Moulus(GPa) | Flexural strength(MPa) | Fracture Toughness(MPa*m1/2) | Thermal Expansion RT~800°) | Thermal Conductivity(w/m*k) | Volume Resistivity(Ω*cm) | ||
| ALP01 | General Purpose High Rigidiy | 3.9 | 370 | 440 | 3~4 | 7.7 | 33 | ＞10⋀14 | ||
| Alumina99.5% | ||||||||||
| ALP02 | High Purity High Rigidity | 3.9 | 370 | 450 | 3~4 | 7.9 | 30 | ＞10⋀14 | ||
| Alumina99.9% | ||||||||||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
quality guarantee:mass produce by 100% inspection
Contact Person: Zhu
Tel: 86-17351500728
