Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Industrial Ceramic,machinery,electronic,chemical |
Material: |
Zirconia Ceramic |
Color: |
Customized |
Shape: |
Customized |
Feature: |
High Hardness,high Strength,high Temperature |
Density: |
6.0g/cm3 |
Zirconia Content: |
94.4% |
Water Absorption: |
0 |
Processing Service: |
Bending,welding,cutting,punching,moulding,grinding,drilling,milling,cnc |
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Industrial Ceramic,machinery,electronic,chemical |
Material: |
Zirconia Ceramic |
Color: |
Customized |
Shape: |
Customized |
Feature: |
High Hardness,high Strength,high Temperature |
Density: |
6.0g/cm3 |
Zirconia Content: |
94.4% |
Water Absorption: |
0 |
Processing Service: |
Bending,welding,cutting,punching,moulding,grinding,drilling,milling,cnc |

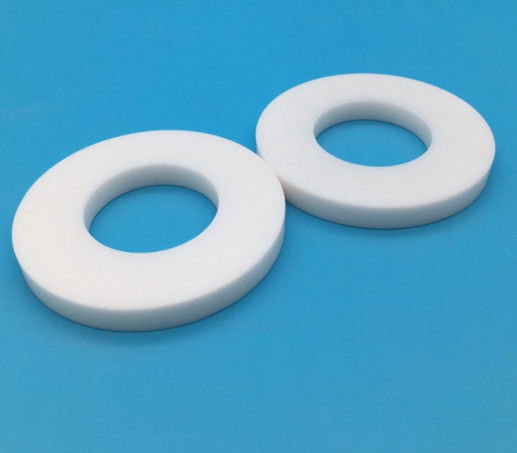

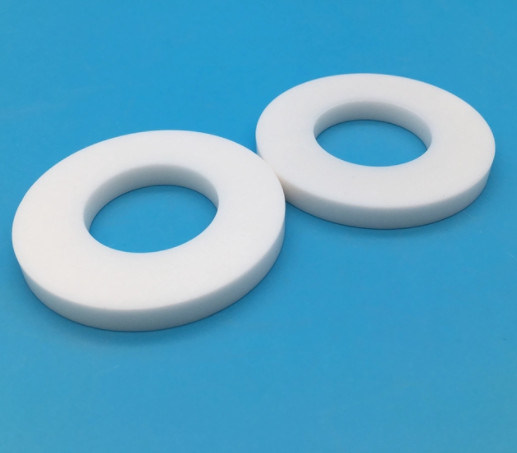

Low heat conductivity zirkonoxidkeramik hard ceramic ring spacer
Product Description
Zirconia Ceramic:
In terms of functional ceramics, its excellent high temperature resistance is used as an induction heating tube, refractory material, and heating element. Zirconia ceramics have sensitive electrical performance parameters and are mainly used in oxygen sensors, solid oxide fuel cells (SOFC) and high temperature heating bodies.
In terms of structural ceramics, zirconia ceramics are widely used in the field of structural ceramics because of their high toughness, high flexural strength and high wear resistance, excellent thermal insulation properties, and thermal expansion coefficient close to that of steel.
data sheet for zirconia ceramic
| Item | Unit | Typical Values |
| Physical Properties | ||
| Color | Customized | |
| Density | g/cm3 | 6 |
| Zirconia Content | % | 94.40% |
| Gas permeability | 0 | |
| Water Absorption | 0 | |
| Crystal Size | um | 0.5 |
| Mechanical Properties | ||
| Rockwell Hardness(45N) | R45N | 78 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm²) | 11.5(1175) |
| Flexural Strength(20°C) | Mpa | 800 |
| Compressive Strength(20°C) | Mpa | 2000 |
| Modulus of Elasticity(20°C) | Gpa | >200 |
| Fracture Toughness(20°C) | MPam1/2 | 9 |
| Thermal Properties | ||
| Thermal Conductivity(20°C-400°C) | W(m.K) | 2.5 |
| Thermal Expansion Coefficient | 10-6/°C | 9.6 |
| Thermal Shock Resistance | T°C | 250 |
Our service
Material Service:
Zirconia Ceramic: Mg-PSZ, Y-TZP, ZTA
Alumina Ceramic: 96%, 99%, 99.5% Al2O3
Silicon Nitride: Si3N4, RBSN, SRBSN, GPSN
Machinable Ceramic: Macor Ceramic
Machining Service:
Laser Cutting
CNC Machining
Cernerless Grinding and Inside Hole Honing
Surface Grinding and Polishing
Company Introduce
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
mass production by 100% inspection
