Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Refractory |
Material: |
Zirconia Ceramic |
Color: |
White |
Size: |
Customized |
Dimension: |
Customized |
Usage: |
Industry Usage |
Density: |
6.0g/cm3 |
Zirconia Content: |
94.4% |
Property: |
Wear Resistance |
Name: |
ZrO2 Ceramic Eyelets |
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Refractory |
Material: |
Zirconia Ceramic |
Color: |
White |
Size: |
Customized |
Dimension: |
Customized |
Usage: |
Industry Usage |
Density: |
6.0g/cm3 |
Zirconia Content: |
94.4% |
Property: |
Wear Resistance |
Name: |
ZrO2 Ceramic Eyelets |

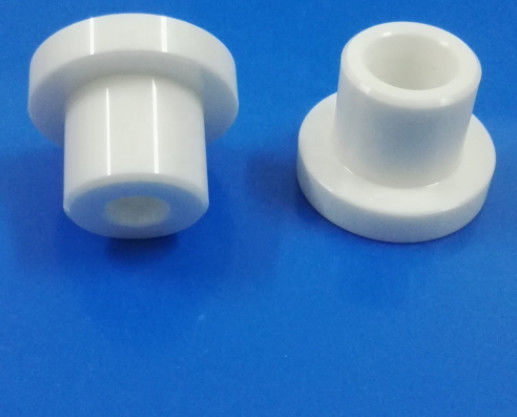

Alumina material and Zirconia ceramic eyelets
Ceramic Parts are featured by insulation, antimagnetic, static electricity-free, lubricity and resistant to high temperature, high pressure,chemical attack and oxidation. It is extremely popular in many areas, such as computer, telecommunication, power supply, transducer, instrumentation, industrial equipment, electric appliance and electric motor. And a lot of practical applications prove that our ceramic bearing has reached a state of high standard and quality.
data sheet for zirconia ceramic
| Item | Unit | Typical Values |
| Physical Properties | ||
| Color | Customized | |
| Density | g/cm3 | 6 |
| Zirconia Content | % | 94.40% |
| Gas permeability | 0 | |
| Water Absorption | 0 | |
| Crystal Size | um | 0.5 |
| Mechanical Properties | ||
| Rockwell Hardness(45N) | R45N | 78 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm²) | 11.5(1175) |
| Flexural Strength(20°C) | Mpa | 800 |
| Compressive Strength(20°C) | Mpa | 2000 |
| Modulus of Elasticity(20°C) | Gpa | >200 |
| Fracture Toughness(20°C) | MPam1/2 | 9 |
| Thermal Properties | ||
| Thermal Conductivity(20°C-400°C) | W(m.K) | 2.5 |
| Thermal Expansion Coefficient | 10-6/°C | 9.6 |
| Thermal Shock Resistance | T°C | 250 |
Our service
Material Service:
Zirconia Ceramic: Mg-PSZ, Y-TZP, ZTA
Alumina Ceramic: 96%, 99%, 99.5% Al2O3
Silicon Nitride: Si3N4, RBSN, SRBSN, GPSN
Machinable Ceramic: Macor Ceramic
Machining Service:
Laser Cutting
CNC Machining
Cernerless Grinding and Inside Hole Honing
Surface Grinding and Polishing
Company Introduce
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
mass production by 100% inspection
