High Temperature Electronic Aluminum Oxide Al2O3 Ceramics Substrate Board Plate

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$1~us$100/P

Packaging Details: carton,wooden,box,pallet

Delivery Time: 30days

Payment Terms: T/T

Supply Ability: 5000p/Month

Get Best Price
High Light:

3.8g cm3 Al2O3 Ceramics Substrate

,

3.8g cm3 Aluminum Oxide Ceramics Substrate

,

3.8g cm3 Al2O3 Ceramics Substrate Board

Material:
Alumina Ceramic
Feature:
Low Dielectric Constant,high Electrical Insulation,high Temperature
Size:
Customized
Place Of Orgin:
Jiangsu,china
Type:
Ceramic Parts
Name:
Ceramic Substrate
Shape:
Customized
Color:
Pure White/ivory
Application:
Industrial Ceramic,machinery,electronic,chemical
Density:
3.8g/cm3
Material:
Alumina Ceramic
Feature:
Low Dielectric Constant,high Electrical Insulation,high Temperature
Size:
Customized
Place Of Orgin:
Jiangsu,china
Type:
Ceramic Parts
Name:
Ceramic Substrate
Shape:
Customized
Color:
Pure White/ivory
Application:
Industrial Ceramic,machinery,electronic,chemical
Density:
3.8g/cm3
High Temperature Electronic Aluminum Oxide Al2O3 Ceramics Substrate Board Plate

High Temperature Electronic Aluminum Oxide Al2O3 Ceramics Substrate Board Plate

Properties:

The ceramic substrate has the main advantages of high temperature resistance, high electrical insulation performance, low dielectric constant and dielectric loss, high thermal conductivity, good chemical stability, and similar thermal expansion coefficient of the component, but the ceramic substrate is brittle and made. The substrate area is small and the cost is high.

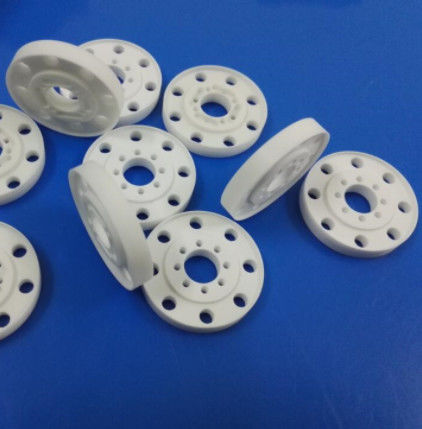

High Temperature Electronic Aluminum Oxide Al2O3 Ceramics Substrate Board Plate 0





date sheet

Name Ceramic Substrate
Color White(general)
Specifications Customized
Accuracy ±0.01
Density 3.8g/cm3
Hardness Rockwell hardness HRA89 (steel knife hardness HRC60) Mohs hardness is 9; HV1500-1700
Modulus of elasticity 380GPa
Bending strength 300Mpa
Compressive strength 2500MPa
Melting point 2050 ° C
High temperature resistance 1800 ° C
Thermal conductivity 39W/(m.K)
Thermal expansion coefficient 8.6X10-6/°C
Breakdown strength (insulation strength) 15KV/mm
Resistivity 1015/Ω.m





company information
Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

High Temperature Electronic Aluminum Oxide Al2O3 Ceramics Substrate Board Plate 1

High Temperature Electronic Aluminum Oxide Al2O3 Ceramics Substrate Board Plate 2
