Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Material: |
Cordierite Ceramic |
Color: |
Yellow,white Or Light Yellow |
Product Name: |
Cordierite Ceramic Crucible |
Size: |
As Customer Design |
Usage: |
Industry Usage |
Shape: |
Customization |
Application: |
Industrial Ceramic |
Type: |
Ceramic Parts |
Material: |
Cordierite Ceramic |
Color: |
Yellow,white Or Light Yellow |
Product Name: |
Cordierite Ceramic Crucible |
Size: |
As Customer Design |
Usage: |
Industry Usage |
Shape: |
Customization |

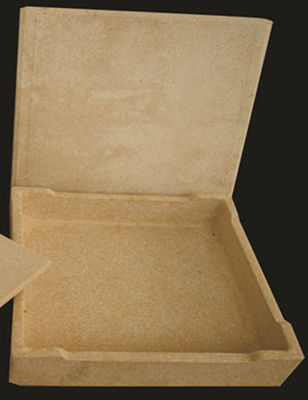

Cordierite Ceramic Crucible
Wuxi Special ceramic offers cordierite ceramic crucible.We can produce different size of cordierite ceramic crucible accoring to the drawing. The product has an outstanding thermal shock resistance,while at the same time having high heat resistance.
So,ceramic crucible is usually used in the area of the sintering of electronic components,magnetic material and ceramic powder.
Why choose Wuxi Special ceramic?
A. Dry pressed molding with high mechanical strength
B. Lower production cost
C. Fast delivery with large quantity
Specification
| Cordierite Main Parameter:(Chemical/physical) | |||
| Property | Item | Unit | Cordierite |
| General properties | Main chemical ingredient | 2MgO,2Al2O3,5SiO2 | |
| Bulk Density | g/cm³ | 2.5 | |
| Color | - | gray | |
| Water absorption | % | 0 | |
| Main Characteristics | Very low thermal expansion Low Weight | ||
| Main Applicationa | Lithography Stage Component Wafer Inspection SEM/TEM | ||
| Mechanical Properties | Flexural Strength | Mpa | 190 |
| Elastic Modulus | Gpa | 140 | |
| Vickers Hardness | Gpa | 8 | |
| Bending Strength(20℃) | kgf/c㎡ | 900 | |
| Compressive Strength 20℃ | kgf/c㎡ | 3500 | |
| Fracture Toughness(k l c) | Mpa*M*1/2 | 1~1.5 | |
| Thermal Properties | Thermal conductivity(20℃) | w/mk | 4 |
| Coefficient of Thermal expansion (40-400℃) | 1x10-6/℃ |
1.5
|
|
| Thermal shock resistance | ℃ | 400 | |
| Maximum use temperature | ℃ | 1000 | |
| Electrical Properties | Dielectric Strength(1mhz) | ac-kv/mm(ac v/mil) | 19.1 |
| Dielectric Constant(1MHZ) | 25℃ | 4.9 | |
| Volume Resistivity | ohm-cm(20℃) | ＞10*14 | |
| ohm-cm(300℃) | 10*12 | ||
| ohm-cm(500℃) | 10*10 |
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
quality guarantee: mass produce by 100% inspection
