Insulating Cordierite Refractory Cordierite Ceramics Material Kiln Parts

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$1~us$100/P

Packaging Details: carton,pallet

Delivery Time: negotiable

Payment Terms: T/T

Supply Ability: 10000P/Month

Get Best Price
High Light:

Refractory Cordierite Ceramic

,

cordierite refractory material

,

cordierite refractory

Application:
Industrial Ceramic
Type:
Ceramic Parts
Material:
Cordierite Ceramic
Color:
Yellow,white Or Light Yellow
Product Name:
Refractory Cordierite Ceramic
Size:
As Customer Design
Usage:
Industry Usage
Shape:
Customization
Application:
Industrial Ceramic
Type:
Ceramic Parts
Material:
Cordierite Ceramic
Color:
Yellow,white Or Light Yellow
Product Name:
Refractory Cordierite Ceramic
Size:
As Customer Design
Usage:
Industry Usage
Shape:
Customization
Insulating Cordierite Refractory Cordierite Ceramics Material Kiln Parts

Refractory Cordierite Ceramic



Wuxi Special ceramics offer refractory cordierite ceramic.The cordierite ceramics, by changing the production formula of traditional ceramics, adopt natural aluminum rich raw materials and ultra-fine high activity raw materials, reduce the reaction barrier and synthesis temperature of cordierite, make it produce a large number of needle and column cordierite crystal phases in the firing process, improve the micro structure of traditional ceramics, so as to achieve the purpose of strengthening and toughening ceramics.



Specification




  Cordierite Main Parameter:(Chemical/physical)
Property Item Unit Cordierite
General properties Main chemical ingredient   2MgO,2Al2O3,5SiO2
Bulk Density g/cm³ 2.5
Color - gray
Water absorption % 0
Main Characteristics     Very low thermal expansion Low Weight
Main Applicationa     Lithography Stage Component Wafer Inspection SEM/TEM
Mechanical Properties Flexural Strength Mpa 190
Elastic Modulus Gpa 140
Vickers Hardness Gpa 8
Bending Strength(20℃) kgf/c㎡ 900
Compressive Strength 20℃ kgf/c㎡ 3500
Fracture Toughness(k l c) Mpa*M*1/2 1~1.5
Thermal Properties Thermal conductivity(20℃) w/mk 4
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃

1.5



Thermal shock resistance 400
Maximum use temperature 1000
Electrical Properties Dielectric Strength(1mhz) ac-kv/mm(ac v/mil) 19.1
Dielectric Constant(1MHZ) 25℃ 4.9
Volume Resistivity ohm-cm(20℃) >10*14
  ohm-cm(300℃) 10*12
  ohm-cm(500℃) 10*10





Our Company


Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

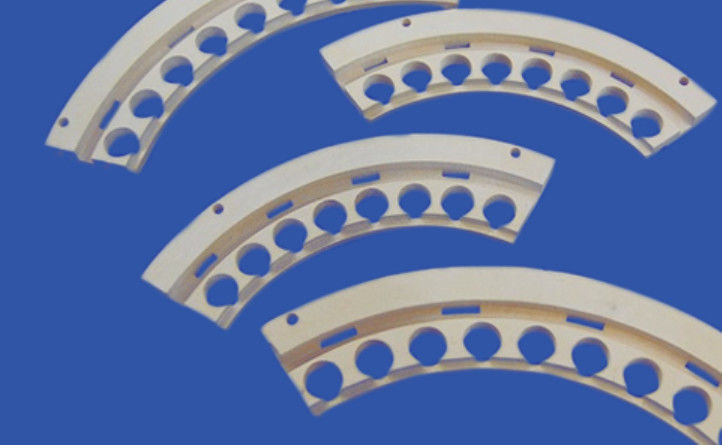

Insulating Cordierite Refractory Cordierite Ceramics Material Kiln Parts 0

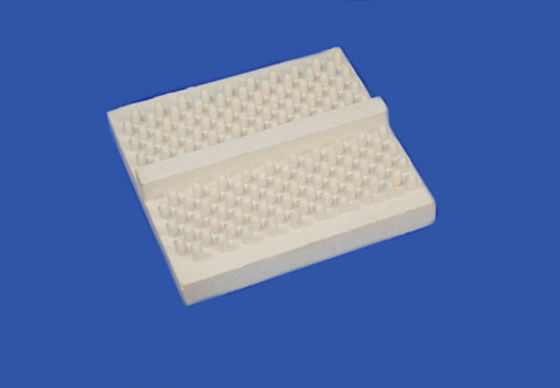

Insulating Cordierite Refractory Cordierite Ceramics Material Kiln Parts 1



     quality guarantee: mass produce by 100% inspection
