15000v Alumina Ceramic Nozzles Components For Tig Welding Torches Wear Resisting

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Model Number: different size

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$0.1~us$10/p

Packaging Details: carton,pallet

Delivery Time: negotiable

Payment Terms: T/T

Supply Ability: 200000p/month

Get Best Price
High Light:

15000v Alumina Ceramic Components

,

15000v alumina ceramic nozzle

,

15000v alumina ceramic sandblasting nozzle

Material:
Alumina Ceramics
Name:
Ceramic Nozzles
Applications:
Tig Welding,gas And Oil Burners
Color:
White,red
Features:
High Voltage Withstand And Excellent Mechanical Properties
Voltage:
15000v Withstand
Forming Method:
Injection Molding
Shape:
Customerized
Size:
Size Customized
Advantage:
High Temperature Resistance
Material:
Alumina Ceramics
Name:
Ceramic Nozzles
Applications:
Tig Welding,gas And Oil Burners
Color:
White,red
Features:
High Voltage Withstand And Excellent Mechanical Properties
Voltage:
15000v Withstand
Forming Method:
Injection Molding
Shape:
Customerized
Size:
Size Customized
Advantage:
High Temperature Resistance
15000v Alumina Ceramic Nozzles Components For Tig Welding Torches Wear Resisting

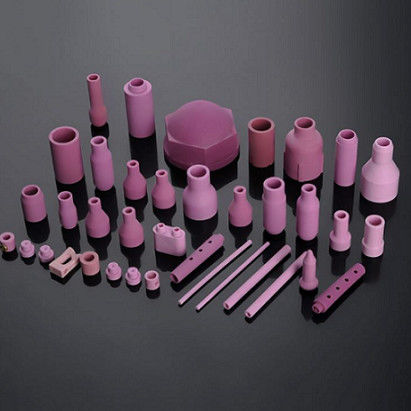

Alumina(Al203)Nozzles for tig welding torches

Ceramic Nozzle is widely used as components of welding torches.Ceramic nozzles have excellent heating-conveying and heat-transfer characteristics and extreme thermal and mechanical resistance.We can produce different sizes of ceramic nozzles.



Specification

  ALUMINA(Al₂O₃)Main Parameter:(Chemical/physical)
Property Item Unit ALUMINA
General properties Main chemical ingredient   Al₂O₃ 76%
Bulk Density g/cm³ 3.2
Color - Pink
Water absorption % 0.6
Main Characteristics     High Heat Resistance
Main Applications     *Welding Nozzle*Nozzle for Glass Fiber manufacturing
Mechanical Properties Flexural Strength Mpa 120
Elastic Modulus Gpa 160
Vickers Hardness Gpa 9
Compressive Strength 20℃ Mpa -
Fracture Toughness(k l c) Mpa*M*1/2 -
Thermal Properties Thermal conductivity(20℃) w/mk 8
Thermal Shock 320
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃ 7.1
Coefficient of Thermal expansion (40-800℃) 1x10-6/℃ 7.5
Electrical Properties Dielectric Strength(1mhz) kv/mm 12
Dielectric Constant(1MHZ) 25℃ 8.4
Volume Resistivity ohm-cm(20℃) >10^14
  ohm-cm(300℃) 10^10
  ohm-cm(500℃) 10^8




Our Company



Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.







15000v Alumina Ceramic Nozzles Components For Tig Welding Torches Wear Resisting 0

15000v Alumina Ceramic Nozzles Components For Tig Welding Torches Wear Resisting 1



   quality guarantee:mass produce by 100% inspection
