Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: rings
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 200000p/month
Material: |
Alumina Ceramics |
Name: |
Textile Ceramic Eyelets |
Color: |
White,red,yellow |
Features: |
High Voltage Withstand And Excellent Mechanical Properties |
Voltage: |
15000v Withstand |
Forming Method: |
Injection Molding |
Shape: |
Customerized |
Application: |
Textile |
Size: |
Size Customized |
Shape: |
Ring |
Material: |
Alumina Ceramics |
Name: |
Textile Ceramic Eyelets |
Color: |
White,red,yellow |
Features: |
High Voltage Withstand And Excellent Mechanical Properties |
Voltage: |
15000v Withstand |
Forming Method: |
Injection Molding |
Shape: |
Customerized |
Application: |
Textile |
Size: |
Size Customized |
Shape: |
Ring |

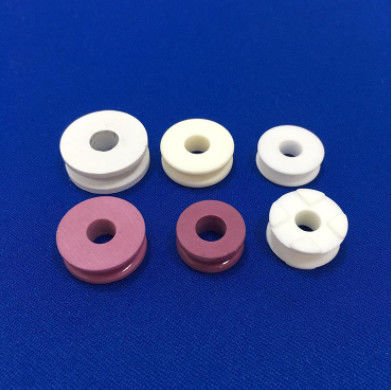

Alumina(Al2O3)Textile Ceramic Eyelets
The ceramic eyelet (ceramic ring) is the most commonly used component for wire passing, which is used for the position of wire passing through the winding machine and textile machinery. The shape of the finished material must be improved to reduce friction as the wire slides on the surface of the ceramic ring. According to the requirements, the polish degree of porcelain eye can be regarded as roughness polishing, precision polishing and ultra-precision polishing.
Specification
| Material code | characteristics | Density(g/cm³) | Young's Moulus(GPa) | Flexural strength(MPa) | Fracture Toughness(MPa*m1/2) | Thermal Expansion RT~800°) | Thermal Conductivity(w/m*k) | Volume Resistivity(Ω*cm) | ||
| ALP01 | General Purpose High Rigidiy | 3.9 | 370 | 440 | 3~4 | 7.7 | 33 | ＞10⋀14 | ||
| Alumina99.5% | ||||||||||
| ALP02 | High Purity High Rigidity | 3.9 | 370 | 450 | 3~4 | 7.9 | 30 | ＞10⋀14 | ||
| Alumina99.9% | ||||||||||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
quality guarantee:mass produce by 100% inspection
