White Melting Alumina Wafer Polishing Plate Alumina Ceramic Sheet Electrical Insulation

Basic Information
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: wafer
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 100000p/month
Material: Alumina Shape: Customerized
Product Name: Alumina Wafer Color: White
Usage: Semiconductor Processing Specification: According To The Drawing
High Light:

Alumina Wafer

,

Alumina Ceramic Sheet

,

Alumina Wafer Polishing Plate

alumina wafers for thin film circuits,alumina wafers for semiconductor processing,sensor component substrates

We are able to manufacture alumina wafers up to a maximum size of φ300mm (φ12 inch).
With a high density and few pores, it is possible to form fine circuit patterns.
We also handle substrates with fine rounded/square holes or slits, as well as polished substrates.

Main Applications

Features

Alumina Wafers

  Main Parameter:(Chemical/physical)
Property Item Unit 99.7% Alumina ceramics
General properties Main component wt% 99.7~99.9
Density gm/cc 3.94~3.97
Color - Ivory
Water absorption % 0
Mechanical Properties Flexural Strength(MOR)20℃ Mpa(psix10*3) 440-550
Elastic Modulus 20℃ Gpa(psix10*6) 375
Vickers Hardness Gpa(kg/mm2)R45N >=17
Bending Strength Gpa 390
Tensile Strength 25℃ Mpa(PSIX10*3) 248
Fracture Toughness(k l c) Mpa*M*1/2 4~5
Thermal Properties Thermal conductivity(20℃) w/mk 30
Coefficient of Thermal expansion (25-1000℃) 1x10-6/℃ 7.6
Thermal shock resistance 200
Maximum use temperature 1700
Electrical Properties Dielectric Strength(1mhz) ac-kv/mm(ac v/mil) 8.7
Dielectric Constant(1MHZ) 25℃ 9.7
Volume Resistivity ohm-cm(25℃) >10*14
  ohm-cm(500℃) 2x10*12
  ohm-cm(1000℃) 2x10*7



Our Company




Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

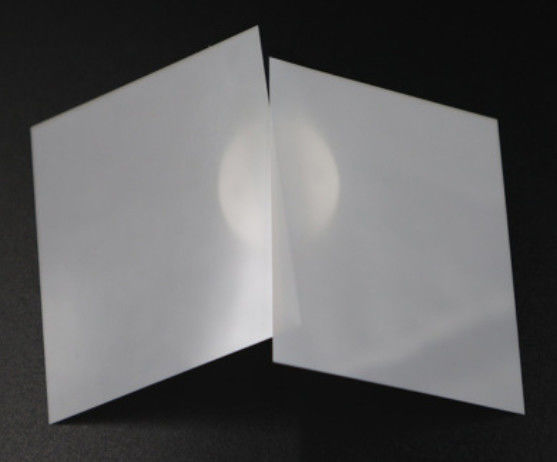

White Melting Alumina Wafer Polishing Plate Alumina Ceramic Sheet Electrical Insulation 0

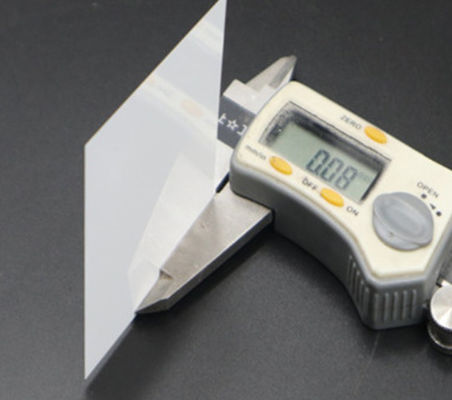

White Melting Alumina Wafer Polishing Plate Alumina Ceramic Sheet Electrical Insulation 1



  Quality guarantee:mass produce by 100% inspection
