12inch Aluminum Nitride Ceramic Substrate GaN-On-QST

Product Details

Place of Origin: China

Brand Name: Wuxi Special Ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: 1us$/p

Packaging Details: carton/plt

Delivery Time: 10days

Payment Terms: L/C, T/T

Supply Ability: 1000000p/month

Get Best Price
High Light:

Aluminum Nitride Ceramic Substrate

,

12inch Aluminum Nitride Ceramic

,

10mm Aluminum Nitride Substrate

Thickness:
10mm
Thermal Expansion:
4.5-5.5x10-6/K
Color:
Gray
Volume Resistivity:
>1014Ω.cm
Insulation Resistance:
>1012Ω.cm
Chemical Resistance:
Excellent
Dielectric Strength:
≥15KV/mm
Density:
3.3g/cm3
Thickness:
10mm
Thermal Expansion:
4.5-5.5x10-6/K
Color:
Gray
Volume Resistivity:
>1014Ω.cm
Insulation Resistance:
>1012Ω.cm
Chemical Resistance:
Excellent
Dielectric Strength:
≥15KV/mm
Density:
3.3g/cm3

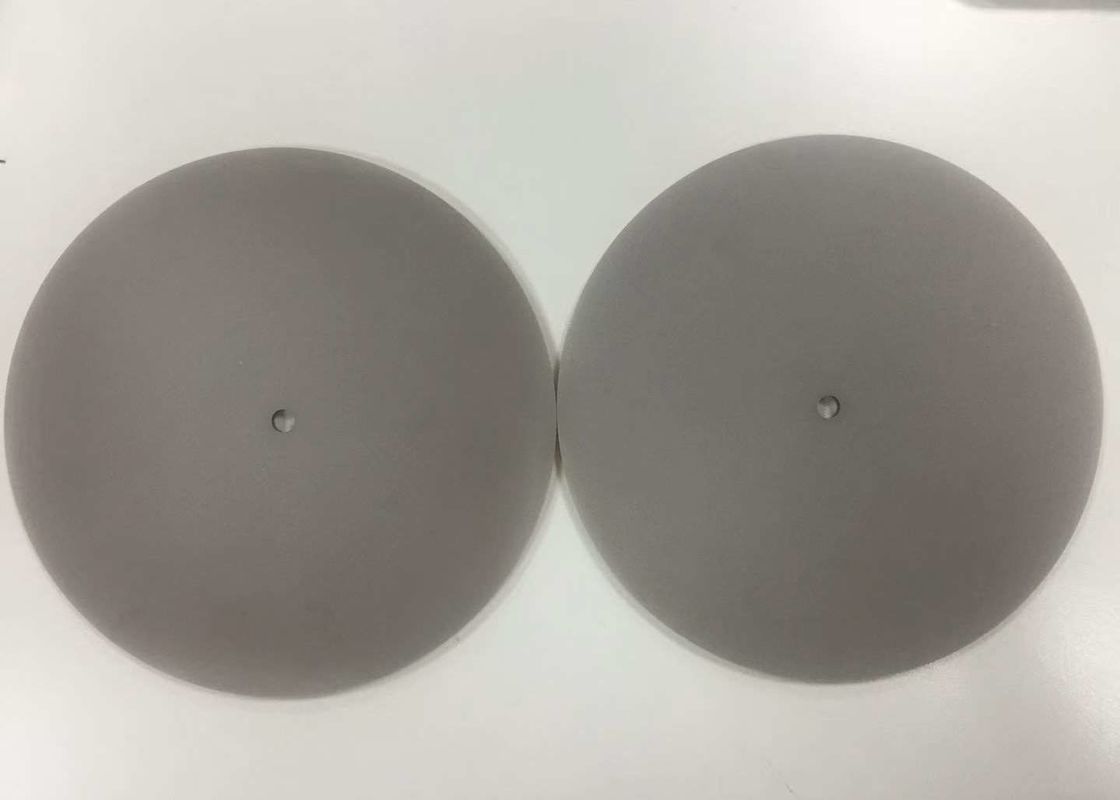

12inch Aluminum Nitride Ceramic Substrate GaN-On-QST

Product Description:

Aluminum Nitride Ceramic Product Overview


GaN-on-QST is provided by Qromis Company of the United States, which can be used as a silicon substrate or a seed crystal. In 2017, they collaborated with Kyma Technologies to produce the first free-standing GaN substrate (4 inches) based on QST substrate technology. In January 2020, Qromis received investment from Toyota Motor Corporation. Qromis has licensed this technology to two companies, including World Advanced and Shin-Etsu Chemical, both of which are accelerating the pace of epitaxy and device foundry production this year.

Qromis' self-supporting GaN substrate has three major advantages, so it is highly optimistic: ● The yield rate of GaN devices can reach 90%. ● 6-inch and 8-inch substrates have been released, and 12-inch GaN substrates are planned to be produced in 2025.

6-inch and 8-inch Aluminum nitride(AlN) substrates are our normal product,and now we can supply 12-inch Aluminum nitride(AlN) ceramic substrate which can be used as the underlying substrate for GaN-on-QST product.

Aluminium Nitride Ceramic, also known as AIN Ceramic, is a type of high-performance ceramic material with exceptional properties, making it suitable for a wide range of applications. This product is mainly used in the form of tubes, with the most common being AIN Ceramic tubes.



Product Attributes
  • Dielectric Constant: 9
  • Volume Resistivity: >1014Ω.cm
  • Flexural Strength: ≥330MPa
  • Density: 3.3g/cm3
  • Surface Roughness: Ra≤6um
AIN Ceramic Tube

AIN Ceramic tubes are widely used in various industries due to their unique characteristics. These tubes are made from Aluminum-Nitride-Ceramic, which is a compound of aluminum and nitrogen. This ceramic structure provides the tube with exceptional properties, making it a popular choice for many applications.

High Thermal Conductivity

One of the key attributes of AIN Ceramic tubes is their high thermal conductivity. This means that these tubes can efficiently transfer heat, making them suitable for applications that require heat dissipation, such as in electronic devices and high-temperature environments.

High Mechanical Strength

AIN Ceramic tubes also have high mechanical strength, with a flexural strength of ≥330MPa. This makes them highly durable and able to withstand high-pressure environments without cracking or breaking. This attribute makes them ideal for use in harsh industrial conditions.

Excellent Electrical Insulation

AIN Ceramic tubes have excellent electrical insulation properties, with a dielectric constant of 9 and a volume resistivity of >1014Ω.cm. This makes them suitable for use in electrical and electronic components, as they can prevent the flow of electrical currents and protect sensitive equipment from damage.

High Temperature Resistance

AIN Ceramic tubes have a high temperature resistance, making them capable of withstanding extreme heat. This makes them suitable for use in high-temperature applications, such as in furnaces, heaters, and other industrial equipment.

Corrosion Resistance

Another advantage of AIN Ceramic tubes is their corrosion resistance. This means that they can withstand exposure to corrosive substances without deteriorating, making them ideal for use in harsh chemical environments.

Precision Machining

AIN Ceramic tubes are manufactured using precision machining techniques, ensuring that each tube is of high quality and meets the required specifications. This makes them suitable for use in precision equipment and applications that require high accuracy.

In conclusion, Aluminum Nitride Ceramic is a versatile and high-performance material that offers a wide range of benefits. With its unique properties such as high thermal conductivity, high mechanical strength, excellent electrical insulation, and corrosion resistance, AIN Ceramic tubes are an ideal choice for various applications. Furthermore, the precision machining used in their production ensures that these tubes are of high quality and can meet the demands of even the most challenging environments.

12inch Aluminum Nitride Ceramic Substrate GaN-On-QST 0

Features:

  • Product Name: Aluminum Nitride Ceramic
  • Thickness: 10mm
  • Volume Resistivity: >1014Ω.cm
  • Material: Aluminum Nitride Ceramic
  • Color: Gray
  • Arc Resistance: >30min
  • Aluminum-Nitride-Ceramic plate
  • AIN CERAMIC STRUCTURE PARTS


Applications:

Aluminum Nitride Ceramic - A High-Performance Ceramic Solution from Wuxi Special Ceramic

Wuxi Special Ceramic, a leading manufacturer of advanced ceramic materials, presents its latest innovation - Aluminum Nitride Ceramic. This high-performance ceramic is specially designed to meet the demanding requirements of various industries, making it an ideal choice for critical applications.

As the name suggests, Aluminum Nitride Ceramic is made from the combination of aluminum and nitrogen, resulting in a unique ceramic material with excellent properties. Let's explore its applications, properties, and the brand behind it.

Brand Name: Wuxi Special Ceramic

Wuxi Special Ceramic is a renowned brand in the ceramic industry, known for its high-quality and innovative ceramic solutions. With over 20 years of experience, the company has become a trusted supplier of advanced ceramic materials to various industries worldwide.

Place of Origin: China

Aluminum Nitride Ceramic is proudly manufactured in China by Wuxi Special Ceramic. The company's state-of-the-art production facilities and advanced technology ensure the highest quality standards for this product.

Hardness: HV1500

Aluminum Nitride Ceramic has an impressive hardness of HV1500, making it one of the toughest ceramic materials available. This high level of hardness ensures strong and durable ceramic parts that can withstand extreme conditions.

Thermal Expansion: 4.5-5.5x10-6/K

One of the key properties of Aluminum Nitride Ceramic is its low thermal expansion coefficient of 4.5-5.5x10-6/K. This means that the material expands minimally when exposed to high temperatures, making it ideal for use in thermal management applications.

Insulation Resistance: >1012Ω.cm

Aluminum Nitride Ceramic has excellent insulation resistance, with a value of >1012Ω.cm. This makes it an ideal material for electrical and electronic applications, where high insulation is crucial.

Dielectric Constant: 9

The dielectric constant of Aluminum Nitride Ceramic is 9, which is comparatively lower than other ceramic materials. This makes it a preferred choice for high-frequency and high-power electronic applications, where low dielectric loss is essential.

Material: Aluminum Nitride Ceramic

Aluminum Nitride Ceramic is a compound ceramic material made from aluminium and nitrogen. The unique combination of these elements results in a material with exceptional properties, making it suitable for various industrial applications.

Applications and Scenarios
Aluminum-Nitride-Ceramic structure parts

The high hardness and low thermal expansion coefficient of Aluminum Nitride Ceramic make it an ideal material for structural components in high-temperature environments. These parts can be used in heat exchangers, furnace linings, and other equipment where resistance to thermal stress is crucial.

Aluminum-Nitride-Ceramic parts

Due to its excellent electrical insulation properties, Aluminum Nitride Ceramic is widely used in the production of electrical and electronic components. These include insulators, substrates, and circuit boards for electronic devices, as well as components for high-voltage and high-power applications.

AIN CERAMIC STRUCTURE PARTS

The unique properties of Aluminum Nitride Ceramic make it an ideal material for various structural parts, such as bearings, gears, and cutting tools. Its high hardness, low thermal expansion, and superior wear resistance make it suitable for use in demanding industrial environments, such as aerospace, automotive, and medical industries.

Conclusion

In conclusion, Aluminum Nitride Ceramic from Wuxi Special Ceramic is a high-performance ceramic material that offers exceptional properties for a wide range of applications. With its brand reputation, quality production, and innovative solutions, Wuxi Special Ceramic is the go-to choice for all your advanced ceramic needs.

Choose Aluminum Nitride Ceramic from Wuxi Special Ceramic and experience the superior performance and reliability of this high-tech ceramic material. Contact us today to learn more about our products and services.



Customization:

Aluminum Nitride Ceramic Customization Service

Brand Name: Wuxi Special Ceramic

Place of Origin: China

Chemical Resistance: Excellent

Arc Resistance: >30min

Surface roughness: Ra≤6um

Insulation Resistance: >1012Ω.cm

Color: Gray

Customize Your AIN Ceramic Tube with Wuxi Special Ceramic

At Wuxi Special Ceramic, we offer top-of-the-line customization services for our AIN ceramic tube. Our Aluminum-Nitride-Ceramic tube is known for its high chemical resistance, arc resistance of over 30 minutes, and smooth surface roughness of Ra≤6um. With our customization service, you can further enhance these properties according to your specific needs.

Our AIN ceramic parts are carefully crafted with precision and expertise, ensuring the highest quality and performance. Our team of experts will work closely with you to understand your requirements and deliver a customized AIN ceramic tube that meets your exact specifications.

Choose from a variety of sizes, shapes, and surface finishes to create the perfect AIN ceramic tube for your application. Our AIN ceramic parts are available in various colors, including the standard gray color. We also offer excellent insulation resistance of >1012Ω.cm, making our AIN ceramic tube suitable for a wide range of industries and applications.

Trust Wuxi Special Ceramic for all your AIN ceramic customization needs. Contact us today to get started!



Packing and Shipping:

Packaging and Shipping for Aluminium Nitride Ceramic
Packaging

Our Aluminium Nitride Ceramic products are carefully packaged to ensure safe delivery to our customers. We use high-quality packaging materials to protect the products from any damage during transport. Each product is individually wrapped and placed in a sturdy box to prevent any breakage.

For larger orders, we use wooden crates or pallets to securely transport the products. We also offer custom packaging options upon request to meet the specific needs of our customers.

Shipping

We offer both domestic and international shipping options for our Aluminium Nitride Ceramic products. Our shipping partners are reliable and have a proven track record of delivering our products on time and in excellent condition.

For domestic orders, we offer standard and expedited shipping options. International orders are shipped via air or sea freight, depending on the customer's preference. We can also arrange for door-to-door delivery for our international customers.

We take great care in ensuring that all necessary export documents are prepared accurately and in a timely manner to avoid any delays at customs.

Customers can also choose to use their preferred shipping carrier and provide us with their account information. We will coordinate with the carrier to ensure timely pickup and delivery of the products.

Our team closely monitors the shipping process to provide our customers with updates and tracking information. We strive to ensure a smooth and hassle-free shipping experience for our customers.



FAQ:

  • Q: What is Aluminum Nitride Ceramic?
  • A: Aluminum Nitride Ceramic is a type of advanced ceramic material with excellent thermal conductivity, high electrical insulation, and high strength.
  • Q: Where is it commonly used?
  • A: It is commonly used in various industries such as electronics, automotive, aerospace, and military due to its unique properties.
  • Q: What is the brand name of this product?
  • A: The brand name of this product is Wuxi Special Ceramic.
  • Q: Where is it produced?
  • A: It is produced in China.
  • Q: What makes Aluminum Nitride Ceramic a popular choice?
  • A: Aluminum Nitride Ceramic's high thermal conductivity and electrical insulation make it a popular choice for heat sink applications in electronic devices.
  • Q: Can it withstand high temperatures?
  • A: Yes, Aluminum Nitride Ceramic has a high melting point of over 2200°C, making it suitable for use in high-temperature environments.
  • Q: Is it a good electrical insulator?
  • A: Yes, Aluminum Nitride Ceramic has excellent electrical insulation properties, making it suitable for use in high-voltage applications.
