Product Details
Place of Origin: China
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: 1us$/p
Packaging Details: carton,pallet
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 100000p/month
Insulation Resistance: |
1012-1014 Ω.cm |
Elastic Modulus: |
290 GPa |
Fracture Toughness: |
7 MPa |
Material: |
Silicon Nitride Ceramics |
Bending Strength: |
750 MPa |
Color: |
Black/Gray |
Density: |
3.2-3.3 G/cm3 |
Dielectric Constant: |
9.2-9.6 |
Insulation Resistance: |
1012-1014 Ω.cm |
Elastic Modulus: |
290 GPa |
Fracture Toughness: |
7 MPa |
Material: |
Silicon Nitride Ceramics |
Bending Strength: |
750 MPa |
Color: |
Black/Gray |
Density: |
3.2-3.3 G/cm3 |
Dielectric Constant: |
9.2-9.6 |

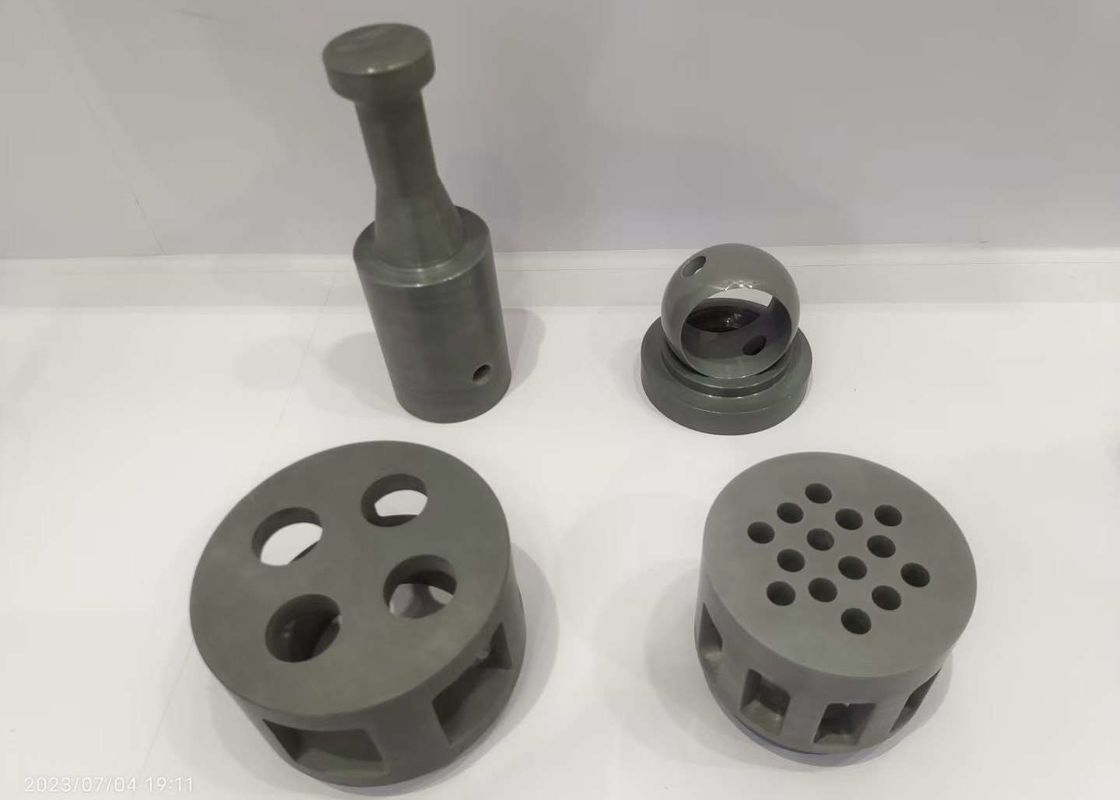

Silicon Nitride Ceramics, also known as SI3N4 ceramic balls, are a type of advanced ceramic material with extremely high strength and excellent thermal stability. They are manufactured using a sintering process, making them highly resistant to compression, bending and other external forces. With a compressive strength of 3800 MPa, bending strength of 750 MPa, Poisson's ratio of 0.25-0.3, insulation resistance of 1012-1014 Ω.cm, and thermal conductivity of 20 W/m.K, Silicon Nitride Ceramics are widely used in a variety of industries such as aerospace, automotive, medical, and electrical engineering. They are also used in precision bearings, valves, pumps, and other mechanical components, due to their superior strength, corrosion resistance, and wear resistance.
| Property | Value |
|---|---|
| Material | Silicon Nitride Ceramics (SI3N4) |
| Insulation Resistance | 1012-1014 Ω.cm |
| Compressive Strength | 3800 MPa |
| Thermal Expansion Coefficient | 2 X 10-6/K |
| Bending Strength | 750 MPa |
| Dielectric Strength | 18-20 KV/mm |
| Dielectric Constant | 9.2-9.6 |
| Hardness | HV0.5≥1700 |
| Fracture Toughness | 7 MPa |
| Poisson's Ratio | 0.25-0.3 |
Silicon nitride ceramics (SI3N4 ceramic ball) are a kind of advanced ceramics with excellent performance. It is widely used in various fields due to its excellent properties such as high hardness, high bending strength, high compressive strength, high insulation resistance, and high thermal conductivity. This material is made in China and its hardness is HV0.5≥1700, bending strength is 750 MPa, insulation resistance is 1012-1014 Ω.cm, thermal conductivity is 20 W/m.K and compressive strength is 3800 MPa.
SI3N4 ceramic ball is widely used in various fields, such as medical equipment, aerospace, automobile, energy, petrochemical, and other industrial fields. Its high hardness makes it a good material for cutting tools, measuring tools, and precision parts. The high bending strength of this material makes it suitable for high-precision mechanical parts that require high stability. Its high insulation resistance makes it an ideal material for electrical and electronic components, while its thermal conductivity makes it suitable for heat-resistant materials and components.
SI3N4 ceramic ball is also used in the manufacture of high-performance bearings, due to its high compressive strength. In addition, it is also used in the manufacture of high-performance seal rings, which can provide excellent sealing performance under high pressure and temperature conditions. Furthermore, it is also used in the manufacture of high-performance ceramics for high-temperature environment, such as thermal protection tiles used in aerospace.
We offer a variety of customized services for Silicon Nitride Ceramics. Our products are manufactured with high-quality SI3N4 ceramic balls, and have the following properties: Place of Origin: China, Hardness: HV0.5≥1700, Poisson's Ratio: 0.25-0.3, Dielectric Strength: 18-20 KV/mm, Material: Silicon Nitride Ceramics, Color: Black/Gray. If you have any other custom needs, please feel free to contact us.
Silicon Nitride Ceramics Packaging and Shipping:
