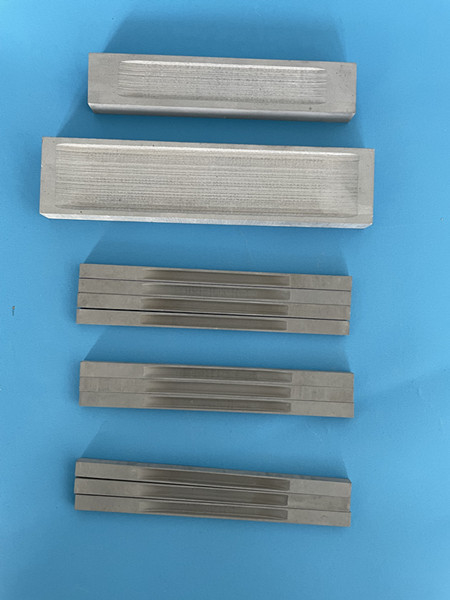

Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels

Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels

Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels
Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels
Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: different size
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$10~us$100/p
Packaging Details: Vacuum aluminum foil bag and Carton
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 1500000 Piece/Pieces per Year
Contact Now
Detailed Product Description
Product Name: Conductive Evaporation Boat Characteristics: 2-component
Usage: For Anti-counterfeit Labels Using: Vacuum Evaporation Packaging Materials
Shape: RECTANGULAR Size2: 10*38*125
Size3: 10*38*130 Size4: 10*40*125
Hot Resistivity: 800-900 Hot Resistivity 2: 900-1000
Delivery Time: Within 10days Produce Capacity: 300000p/year
High Light:

Rectangular Ceramic Evaporation Boat

,

Anti Counterfeit Labels Evaporation Boat

,

OD 3.0 Ceramic Evaporation Boat

Ceramic Evaporation Boat For Anti-Counterfeit Labels

Product Description

Boron Nitride Ceramics are widely applied in automobile, electronic, electrical engineering, aerospace, medical science, scientific research, for extreme difficult environments such as

electrical insulation, thermal insulation, high temperature resistance, chemical resistance, etc.



Evaporator Boat – Characteristics and Applications

3-Compontent

  A.Highest purity in all composition

  B.Perfect balance point in thermal shock/high temp mechanical, which could meet special application.

  C.Not used for evaporator boat application

  D.Use for crucible for OLED/semi-conductor, where purity and high temperature properties are critical for the application

2-Component

A.2-Component evaporator boat is the most common product for most evaporation applications

B.Particularly suitable for food package metallization process

C.Good performance in AlOx metallization process

D.High evaporation compared to 3-component family



Optimizing Each Evaporator Boat Application:

A.Resistance-heated boats or crucibles are used in vacuum chambers at ~1500–1650℃ (2732–3002℉) to evaporate various metals, including aluminum (Al), copper (Cu), tin* (Sn), and silver* (Ag).

B.Metallized films and papers are used in the food packaging, capacitor film, decorative, and electronic industries.



Our ceramic evaporation boats using the most advanced production equipment and technology,the products produced are of world-class quality and performance. Our evaporation boats can meet the production of metalized film, paper, textiles, and other materials, widely used in the vacuum evaporation packaging materials, capacitor metal vacuum coating, paper, aluminum plating, bronzing coating, anti-counterfeit labels such as the aluminum plating industry.

In order to yield the greatest performance of evaporation boats, achieve the longest service life. Please read the following:

A.Align the clamp on both sides and keep the surface bright and clean.

B.Make sure good electric contact and heat conduction on end face and side face by graphite paper.

C.At the first time of heating the new boat, please put a length of aluminium wire in the centre of cavity for easily confirming the temperature of boats.

D.The contact point of aluminium wire should be in the length of 1/3 boat or 2/5.

E.The first heating of new boat should not be so fast that will effect deflation .

F.For the first time of new boat, the speed of transmitting aluminium wire should be gradually increased from normal 75% and the power should be gradually induced for the greatest area of spreading molten aluminium.

G.The time for heating new boat should be 15 minutes, and operate the evaporation. as above method of transmitting aluminium at beginning.

H.Please stop transmitting aluminium wire and turn off the power supply after 30-60 seconds at the end of evaporating each rolls.



Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels 0

working life 12-24hours
OD 1.5-3.0
Hot Resistivity 1200-6000μΩ.cm
Working temperature <1850°C
Evaporation rate(1450°C) 0.4-0.5g/min.cm2
Coefficient of (1450°C) (4-6)x10-6k
Heat conductivity (1450°C) >100/40W/mk
Hot bending intensity >150mpa


Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels 1



Rectangular Ceramic Evaporation Boat For Anti Counterfeit Labels 2

Wuxi Special Ceramic Electrical Co.,LTD is a high-tech enterprise specializing in development and production of evaporation boats and boron nitride products. We have accumulated rich production experience in vacuum hot-pressing of boron nitride ceramics and have a number of industry experts and engineers.

Our products include evaporation boats in metalizing applications, boron nitride ceramics and the upstream raw materials.

Evaporation boats are used in metalizing applications. It is widely used for packaging film, capacitance film, paper, textile, anti-counterfeiting mark and so on.
