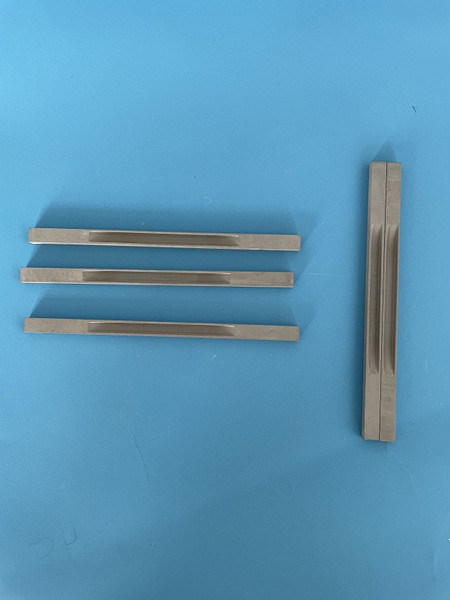

Composite Ceramic Evaporation Boat For Metallization Of BOPP Film

Composite Ceramic Evaporation Boat For Metallization Of BOPP Film

Composite Ceramic Evaporation Boat For Metallization Of BOPP Film
Composite Ceramic Evaporation Boat For Metallization Of BOPP Film
Composite Ceramic Evaporation Boat For Metallization Of BOPP Film
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: different size
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$10~us$100/p
Packaging Details: Vacuum aluminum foil bag and Carton
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 1500000 Piece/Pieces per Year
Contact Now
Detailed Product Description
Product Name: Composite Evaporation Boat Characteristics: 2-component,3-component
Usage: For Food Package Metalization Using: For BOPP Film
Shape: RECTANGULAR,T-VAP,T-VAP PLUS,T-VAP SELECT Size2: 10*40*125
Size3: 10*35*120 Size4: 10*38*120
Hot Resistivity: 2800-3200 Hot Resistivity 2: 800-1200
High Light:

Composite Ceramic Evaporation Boat

,

BOPP Film Metallization Evaporation Boat

,

OD 1.5 Ceramic Evaporation Boat

Composite Ceramic Evaporation Boat For Metallization Of BOPP Film

Product Description

Boron Nitride Ceramics are widely applied in automobile, electronic, electrical engineering, aerospace, medical science, scientific research, for extreme difficult environments such as

electrical insulation, thermal insulation, high temperature resistance, chemical resistance, etc.

Optimizing Each Evaporator Boat Application:

A.Resistance-heated boats or crucibles are used in vacuum chambers at ~1500–1650℃ (2732–3002℉) to evaporate various metals, including aluminum (Al), copper (Cu), tin* (Sn), and silver* (Ag).

B.Metallized films and papers are used in the food packaging, capacitor film, decorative, and electronic industries.



Evaporator Boat – Characteristics and Applications

3-Compontent

  A.Highest purity in all composition

  B.Perfect balance point in thermal shock/high temp mechanical, which could meet special application.

  C.Not used for evaporator boat application

  D.Use for crucible for OLED/semi-conductor, where purity and high temperature properties are critical for the application

2-Component

A.2-Component evaporator boat is the most common product for most evaporation applications

B.Particularly suitable for food package metallization process

C.Good performance in AlOx metallization process

D.High evaporation compared to 3-component family



Composite Ceramic Evaporation Boat For Metallization Of BOPP Film 0

working life 12-24hours
OD 1.5-3.0
Hot Resistivity 1200-6000μΩ.cm
Working temperature <1850°C
Evaporation rate(1450°C) 0.4-0.5g/min.cm2
Coefficient of (1450°C) (4-6)x10-6k
Heat conductivity (1450°C) >100/40W/mk
Hot bending intensity >150mpa


Composite Ceramic Evaporation Boat For Metallization Of BOPP Film 1



Composite Ceramic Evaporation Boat For Metallization Of BOPP Film 2

Wuxi Special Ceramic Electrical Co.,LTD is a high-tech enterprise specializing in development and production of evaporation boats and boron nitride products. We have accumulated rich production experience in vacuum hot-pressing of boron nitride ceramics and have a number of industry experts and engineers.

Our products include evaporation boats in metalizing applications, boron nitride ceramics and the upstream raw materials.

Evaporation boats are used in metalizing applications. It is widely used for packaging film, capacitance film, paper, textile, anti-counterfeiting mark and so on.
