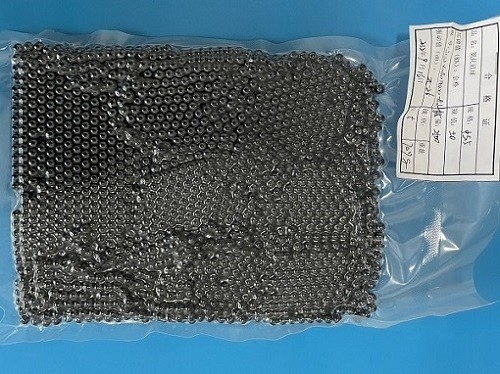

G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing

G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing

  • G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing
  • G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing
  • G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing
  • G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing
  • G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing
  • G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing
G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing
Product Details:
Place of Origin: China
Brand Name: Wuxi Special Ceramic Electrical
Payment & Shipping Terms:
Minimum Order Quantity: 100p
Price: 0.1usd/p-10usd/p
Packaging Details: Wooden boxes with foam package inside
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 100000p/month
Contact Now
Detailed Product Description
Material: Silicon Nitride Ceramic Type: Bearing Ceramic Ball
Place Of Origin: China Application: Grinding Industrial
Shape: Round Type Usage: Wear Resistance
Size: Customized Working Temperature: ≤1650
Package: Vaccum Package,steel Drum Or Carton Sample: Available
High Light:

Si3n4 Silicon Carbide Ceramic Ball

,

Bearing Silicon Carbide Ceramic Ball

,

Round Silicon Nitride Ceramics

G3-G100 High-Precision For Bearing Si3n4 Silicon Carbide Ceramic Ball

Si3N4 Silicon Nitride Ceramic Ball

Silicon Nitride Ceramic Bearing Balls are formed from a new material suitable for applications where high loads, high speeds and extreme temeratures are factors. Long life and the need for minimal lubrication make this material appropriate for extreme applications. Silicon Nitirde is non-porous, non-magentic, non corrosive, lighter than steel and, in ball form, is harder than steel. Because ceramic balls are non-porous they are virtually frictionless and are capable of spinning faster than steel balls.



Silicon Nitride Balls Advantage:

A:Fine crystalline Never rust,
B:Can roll without oil or grease.
C:Excellent corrosion resistance withstands attack from harsh chemicals and demanding environmental conditions.
D:Lightweight: Silicon Nitride weighs 60% less than steel which reduces centrifugal force, skidding.
E:Wear under high speed and acceleration.



Our Silicon Nitride Ceramic Balls size is from 0.5mm to 38mm( from 8/5" up to 2-1/4" ) and there are many Size and Grade for choose, such as G5 , G10, G100, and so on. Many Sizes are stock have, so the lead time is very short. Silicon Nitride Ceramic Bearing Balls are widely use in oil industry, copper tube manufacture , hybrid bearing and full ceramics applications.



Application:
Most ceramic balls are mounted in the bearing (high-speed bearing, high precision bearing, vacuum bearing, high/low-temperature bearing, nonmagnetic bearing, high precision ball screws) for the high technology industry, such as aerospace and national defense, etc. The ceramic balls can also be used for chemistry, metallurgy, medical treatment, food industry, oilfield, electronic engineering, etc.



G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing 0



Size Overview:



Grade
Vdws
SPH
Vdwl
Ra
G3
0.05-0.08
≤0.08
<0.13
0.01
G5
0.08-0.13
≤0.13
<0.25
0.014
G10
0.15-0.25
≤0.25
<0.5
0.02
G16
0.2-0.4
≤0.4
<0.8
<0.025
G20
0.3-0.5
≤0.5
<1
<0.032
G100
0.4-0.7
0.4-0.7
<1.4
<0.0105



G3-G100 High Precision Si3n4 Silicon Carbide Ceramic Ball For Bearing 1



Company Profile

Wuxi Special Ceramic Electrical Co.,Ltd has 20 years ceramic produce experience.we mainly produce alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
