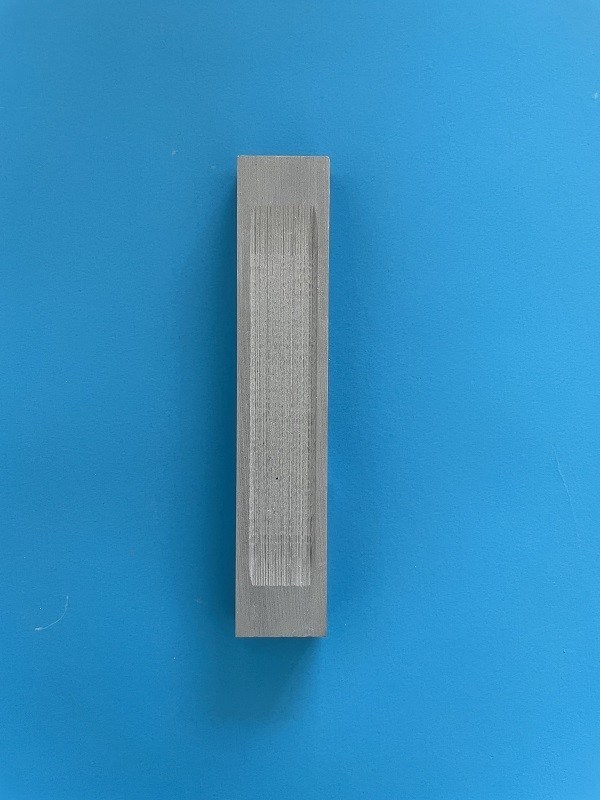

Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat

Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat

Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat
Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat
Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: different size
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$10~us$100/p
Packaging Details: Vacuum aluminum foil bag and Carton
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 1500000 Piece/Pieces per Year
Contact Now
Detailed Product Description
Material: TiB2 + BN Size1: 10*38*130
Type: Ceramic Evaporation Boat Product Name: Evaporation Boat
Characteristics: 2-component,3-component Usage: For Food Package Metalization
Using: For Capacitor Metallization Shape: RECTANGULAR,T-VAP,T-VAP PLUS,T-VAP SELECT
Size2: 10*30*130 Size3: 10*35*130
Size4: 10*40*130 Size5: 10*40*120
High Light:

Vacuum Al Metalization Evaporation Boats

,

Al Metalization Ceramic Evaporation Boat

,

TiB2 Ceramic Evaporation Boat

Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat

Product Description

Boron Nitride Ceramics are widely applied in automobile, electronic, electrical engineering, aerospace, medical science, scientific research, for extreme difficult environments such as

electrical insulation, thermal insulation, high temperature resistance, chemical resistance, etc.

Optimizing Each Evaporator Boat Application:

A.Resistance-heated boats or crucibles are used in vacuum chambers at ~1500–1650℃ (2732–3002℉) to evaporate various metals, including aluminum (Al), copper (Cu), tin* (Sn), and silver* (Ag).

B.Metallized films and papers are used in the food packaging, capacitor film, decorative, and electronic industries.

Maximizing Evaporator Boat Life

To ensure optimum boat performance and to maximize boat life, the following procedures should be followed:

A.Check alignment and smooth surface of your contacts.

B.Use graphite tape for uniform electrical and thermal contact.

C.Use pieces of aluminium wire for first heat up to determine correct initial boat temperature.



Evaporator Boat – Characteristics and Applications

2-Component

  A.2-Component evaporator boat is the most common product for most evaporation applications

  B.Particularly suitable for food package metallization process

  C.Good performance in AlOx metallization process

   D.High evaporation compared to 3-component family

3-Compontent

  A.Highest purity in all composition

  B.Perfect balance point in thermal shock/high temp mechanical, which could meet special application.

  C.Not used for evaporator boat application

  D.Use for crucible for OLED/semi-conductor, where purity and high temperature properties are critical for the application



working life 12-24hours
OD 1.5-3.0
Hot Resistivity 1200-6000μΩ.cm
Working temperature <1850°C
Evaporation rate(1450°C) 0.4-0.5g/min.cm2
Coefficient of (1450°C) (4-6)x10-6k
Heat conductivity (1450°C) >100/40W/mk
Hot bending intensity >150mpa



Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat 0



Evaporation Boats for Vacuum Al Metalization Ceramic Evaporation Boat 1

Wuxi Special Ceramic Electrical Co.,LTD is a high-tech enterprise specializing in development and production of evaporation boats and boron nitride products. We have accumulated rich production experience in vacuum hot-pressing of boron nitride ceramics and have a number of industry experts and engineers.

Our products include evaporation boats in metalizing applications, boron nitride ceramics and the upstream raw materials.

Evaporation boats are used in metalizing applications. It is widely used for packaging film, capacitance film, paper, textile, anti-counterfeiting mark and so on.
