Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$2~us$30/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 2000000p/month
Ring: |
Ceramic Ring |
Product Name: |

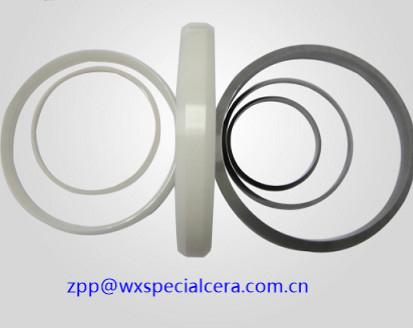

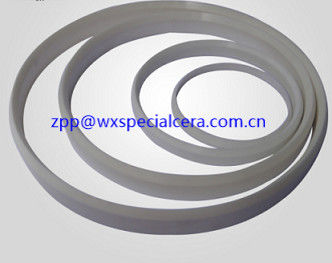

Pad Printing Ceramic Ring Ink Cup For Kent Machine Ceramic Ring |
Place Of Origin: |
China |
Material: |
Zirconia Ceramic |
Dia. 60mm Ring: |
60 Mm Double-sided |
Ring Blade Side: |
Single Side / Double Sides |
Key Word: |
Ceramic Ring |
Dia. 90mm Ring: |
90 Mm Double-sided |
Ring: |
Ceramic Ring |
Product Name: |
Pad Printing Ceramic Ring Ink Cup For Kent Machine Ceramic Ring |
Place Of Origin: |
China |
Material: |
Zirconia Ceramic |
Dia. 60mm Ring: |
60 Mm Double-sided |
Ring Blade Side: |
Single Side / Double Sides |
Key Word: |
Ceramic Ring |
Dia. 90mm Ring: |
90 Mm Double-sided |
Φ36.5xΦ42.5x6mm
Φ45*Φ40*12mm
Φ43*Φ37*10mm
Φ52*Φ60*12mm
Φ55*Φ45*12mm
Φ64*Φ56*12.2mm
Φ65*Φ60*5mm
Φ65*Φ60*5.2mm
Φ70*Φ60*12mm
Φ78*Φ70*6mm
Φ80*Φ70*12mm
Φ70*Φ65*5.2mm
Φ90*Φ80*12mm
Φ90*Φ82*12mm
Φ94*Φ86*12mm
Φ90*Φ85*8mm
Φ100*Φ90*12mm
Φ110*Φ100*12mm
Φ120*Φ110*12mm
Φ130*120*12mm
Φ140*Φ130*12mm
Φ150*Φ140*12mm
Φ199*Φ189*12mm
Φ200*Φ190*12mm
Φ201*Φ189*16mm
Φ250*Φ240*16mm
Ceramic ring advantage:
A. One of the primary advantages of the ceramic ring has a "self-lubricating" qualities that work equally well on thin steel and thick steel and the softer polymer printing plates. The carbide doctor rings are generally fairly sharp and abrasive and will wear a polymer plate material quickly.
B. Another advantage of the ceramic ring is that it is generally thicker, more robust and resistant to damage by during handling.
In general, the quality of pad printing supplies has become very high, so any type of sealed inkcup or ring material allows making excellent imprints.
Specification
| Material code | characteristics | Density(g/cm³) | Young's Moulus(GPa) | Flexural strength(MPa) | Fracture Toughness(MPa*m1/2) | Thermal Expansion RT~800°) | Thermal Conductivity(w/m*k) | Volume Resistivity(Ω*cm) | ||
| High Strength wear resistance | 6 | 210 | 980 | 6 | 10.7 | 3 | ＞10⋀12 | |||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
Quality guarantee:mass produce by 100% inspection
