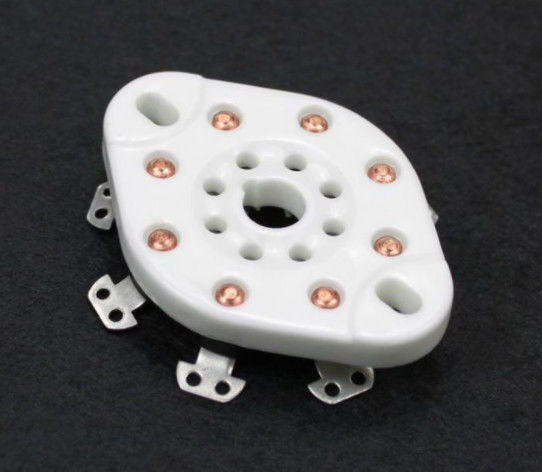

High Resistivity Precision Steatite Ceramics Socket Insulators

High Resistivity Precision Steatite Ceramics Socket Insulators

  • High Resistivity Precision Steatite Ceramics Socket Insulators
High Resistivity Precision Steatite Ceramics Socket Insulators
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramics
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$0.1/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 200000p/month
Contact Now
Detailed Product Description
Item: Al2o3 Ceramic Parts Property: Precision
Usage: Industrial Ceramic Name: Steatite Ceramic Tube Socket
Color: Yellow,white,pink Keywords: Steatite Ceramics Socket Insulators
High Light:

High Resistivity Precision Steatite Ceramics

,

Steatite Ceramics Socket Insulators

,

Steatite Ceramic Tube Socket

High Resistivity Precision Steatite Ceramics Socket Insulators



Features:
High resistivity
Moderate strength
Excellent electrical properties
Poor heat conductivity (Thermal insulator)
Good resistance to thermal shock
Low coefficient of thermal expansion
Good mechanical stability



Applications:
Heating element holders
Stand off Insulators
Interlocking Insulating Beads
Splitbush insulators
Lamp bases and caps
Regulator parts
Steatite ceramic part, Steatite ceramic ring, ceramic ring, ceramic part, ceramic support, steatite ceramic part, steatite ceramic insulation part, steatite ring, insulation ceramic support, ceramic support, insulation support, steatite suport, steatite part, steatite ceramic,steatite insulator



Usage:

As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process,stress-relieving, pre-heating & post heating, other resistance-heating environment



Specification:

  STEATITE Main Parameter:(Chemical/physical)
Property Item Unit Steatite
General properties Bulk Density g/cm³ 2.8
Color - White
Water absorption % 0
Main Characteristics     Thermal Insulator
Main Applications     Various circuit parts
Mechanical Properties Flexural Strength Mpa 190
Elastic Modulus Gpa 120
Vickers Hardness Gpa 5.8
Compressive Strength 20℃ Mpa -
Fracture Toughness(k l c) Mpa*M*1/2 -
Thermal Properties Thermal conductivity(20℃) w/mk 2
Thermal Shock -
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃ 7.7
Coefficient of Thermal expansion (40-800℃) 1x10-6/℃ 8
Electrical Properties Dielectric Strength(1mhz) kv/mm 18
Dielectric Constant(1MHZ) 25℃ 6
Volume Resistivity ohm-cm(20℃) >10^14
  ohm-cm(300℃) 10^10
  ohm-cm(500℃) 10^7


Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
