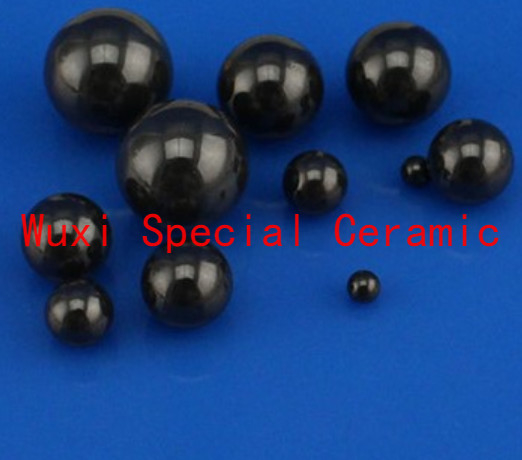

High Grade Si3N4 Silicon Nitride Ceramic Bearing Ball Polished

High Grade Si3N4 Silicon Nitride Ceramic Bearing Ball Polished

High Grade Si3N4 Silicon Nitride Ceramic Bearing Ball Polished
High Grade Si3N4 Silicon Nitride Ceramic Bearing Ball Polished
High Grade Si3N4 Silicon Nitride Ceramic Bearing Ball Polished
Product Details:
Place of Origin: China
Brand Name: Wuxi Special Ceramic Electrical
Payment & Shipping Terms:
Minimum Order Quantity: 100p
Price: 0.1usd/p-10usd/p
Packaging Details: Wooden boxes with foam package inside
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 100000p/month
Contact Now
Detailed Product Description
Material: Silicon Nitride Type: Ceramic Balls
Place Of Origin: Wuxi Application: Industrial Ceramic
Color: Black Shape: Round
Usage: Wear Resistance Size: Customized
Density: 3.2g/cm3 Working Temperature: 1400-1650
High Light:

Polished Silicon Nitride Ceramic Bearing Ball

,

High Grade Si3N4 Silicon Nitride Ceramic

,

Polished Silicon Nitride Ceramic

High Grade Polished Silicon Nitride Si3N4 Ceramic Bearing Ball

Si3N4 Silicon Nitride Ceramic Ball

Silicon Nitride Ceramic Bearing Balls are formed from a new material suitable for applications where high loads, high speeds and extreme temeratures are factors. Long life and the need for minimal lubrication make this material appropriate for extreme applications. Silicon Nitirde is non-porous, non-magentic, non corrosive, lighter than steel and, in ball form, is harder than steel. Because ceramic balls are non-porous they are virtually frictionless and are capable of spinning faster than steel balls.



Silicon Nitride Balls Advantage:

A:Fine crystalline Never rust,
B:Can roll without oil or grease.
C:Excellent corrosion resistance withstands attack from harsh chemicals and demanding environmental conditions.
D:Lightweight: Silicon Nitride weighs 60% less than steel which reduces centrifugal force, skidding.
E:Wear under high speed and acceleration.



Our Silicon Nitride Ceramic Balls size is from 0.5mm to 38mm( from 8/5" up to 2-1/4" ) and there are many Size and Grade for choose, such as G5 , G10, G100, and so on. Many Sizes are stock have, so the lead time is very short. Silicon Nitride Ceramic Bearing Balls are widely use in oil industry, copper tube manufacture , hybrid bearing and full ceramics applications.



Size Overview:



Grade
Vdws
SPH
Vdwl
Ra
G3
0.05-0.08
≤0.08
<0.13
0.01
G5
0.08-0.13
≤0.13
<0.25
0.014
G10
0.15-0.25
≤0.25
<0.5
0.02
G16
0.2-0.4
≤0.4
<0.8
<0.025
G20
0.3-0.5
≤0.5
<1
<0.032
G100
0.4-0.7
0.4-0.7
<1.4
<0.0105



High Grade Si3N4 Silicon Nitride Ceramic Bearing Ball Polished 0



Company Profile

Wuxi Special Ceramic Electrical Co.,Ltd has 20 years ceramic produce experience.we mainly produce alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
