Wafer Handling Alumina Semiconductor Ceramics Mechanical Arms End Effector In Robitics

Basic Information
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Place Of Origin: Jiangsu China Type: Ceramic Plates
Application: Industrial Ceramic Material: Alumina Ceramic
Feature: Insulation Performance/Semiconductor Flexural Strength: Mpa / 280 ( 95 Alumina), 310 ( 99 Alumina), 950 (Zirconia)
Product Name: Alumina Ceramic End Effector Density: 3.0g/cm3 / >6.0g/cm3
Size: Customized Usage: Ceramic End Effector
Color: White,yellow Or Customized
High Light:

3.0g cm3 Alumina Semiconductor Ceramic

,

3.0g cm3 semiconductor ceramic arm mechanical

,

3.0g cm3 wafer handling ceramic arm

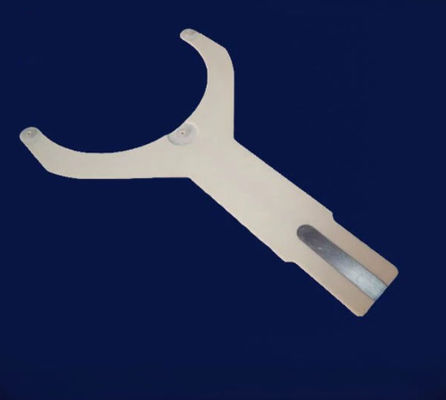

High precision semiconductor alumina ceramic mechanical arms end effector in robotics

Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramics are generally white but may also be pink or ivory.



Our products include engineered ceramic, strengthened structure ceramic,ceramic bar,ceramic tube,ceramic block, ceramic ring, ceramic cylinder/bushings, ceramic shaft,ceramic plate,ceramic sleeve,ceramic valve,ceramic plunger and ceramic arm,ceramic pin, ceramic metric gauge, ceramic thin plate,etc.





Wafer Handling Alumina Semiconductor Ceramics Mechanical Arms End Effector In Robitics 0Wafer Handling Alumina Semiconductor Ceramics Mechanical Arms End Effector In Robitics 1Wafer Handling Alumina Semiconductor Ceramics Mechanical Arms End Effector In Robitics 2





Alumina Ceramic Properties 96% Alumina Ceramic 99% Alumina Ceramic
Item Unit Typical Values
Physical Properties
Color   White Ivory
Density g/cm3 3.7 3.85
Alumina Content % 96% 99%
Gas permeability   0 0
Water Absorption   0 0
Mechanical Properties
MONS' Hardness Grade 9 9
Rockwell Hardness HRA 80 82
Vickers Hardness (Hv50) Gpa(Kg/mm²) 15.7(1600) 15.7(1600)
Flexural Strength(20°C) Mpa 300 330
Compressive Strength(20°C) Mpa 2000 2000
Modulus of Elasticity Gpa 275
Poisson's Ratio (20°C)   0.22-0.23
Fracture Toughness(20°C) MPam1/2 3.5 4
Thermal Properties
Thermal Conductivity(20°C-400°C) W(m.K) 25 27.5
Thermal Expansion 10-6/°C 6.5-7.5 7.6
Maximum Use Temperature °C 1600 1650
Electronic Properties
Dielectric KV/mm >12 >10
Dielectric Constant Er 9-10 9.1
Dielectric Loss Angle(1MHz)   0.0002 0.0002-0.0003





Company Introuduce



Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.



Wafer Handling Alumina Semiconductor Ceramics Mechanical Arms End Effector In Robitics 3
