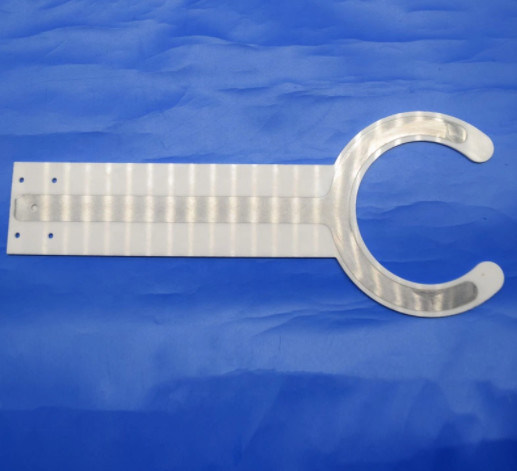

ZrO2 Al2O3 Semiconductor Ceramics Chucks

ZrO2 Al2O3 Semiconductor Ceramics Chucks

ZrO2 Al2O3 Semiconductor Ceramics Chucks
ZrO2 Al2O3 Semiconductor Ceramics Chucks
ZrO2 Al2O3 Semiconductor Ceramics Chucks
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu China Type: Ceramic Parts
Application: Industrial Ceramic Material: Alumina Ceramic
Processing Service: Bending,welding,cutting,punching,moulding Color: White/ivory
Product Name: Alumina Semiconductor Ceramics Purity: 95%-99% Al2o3 Ceramic
Usage: Semiconductor Ceramics Max Working Temperature: 1750℃
High Light:

Al2O3 semiconductor ceramic parts


Semiconductor Ceramic Chucks


Zirconia semiconductor Chucks

Zirconia Alumina Ceramic Semiconductor chucks Pad High temperature resistance Al2O3 Semiconductor Ceramic Parts


As a precision ceramic parts manufacturer, we produce and sales multi types ceramic products for Semiconductor as our customer requirements.


Welcome sending drawings to us to customized the ceramic arm in your own design.


Semiconductor industry ceramic arms have high wear resistance ,high hardness and high tensile,it has the best fracture toughness in all of ceramics,pottery and it has another name:ceramic steel.


High performance ceramic arm offer significant advantages over metals and plastics. They have in general good mechanical properties and are particularly resistant to compression.


ZrO2 Al2O3 Semiconductor Ceramics Chucks 0ZrO2 Al2O3 Semiconductor Ceramics Chucks 1ZrO2 Al2O3 Semiconductor Ceramics Chucks 2




Properties Units 95 Alumina 99 Alumina Zirconia
Density g / cm3 3.65 3.92 5.95 - 6.0
Water Absorption % 0 0 0
Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
Modulus of Elasticity Young’s Mod Gpa 280 340 210
Poisson’s Ratio / 0.21 0.22 0.3
HV Hardness Mpa 1400 1650 1300 - 1365
Flexural Strength @ Room Temperature Mpa 280 310 950
Flexural Strength @ 700℃ Mpa 220 230 210
Compressive Strength@Room Temperature Mpa 2000 2200 2000
Fracture Toughness Mpa * m½ 3.8 4.2 10
Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
Electrical Resistivity @ Room Temperature Ω*mm2 / m >1015 >1016 >1015
Max Application Temperature 1500 1750 1050
Resistance to Acid Alkaline / High High High
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV / mm 16 22 /
Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
Tensile Strength @ 25℃ Mpa 200 248 252

Company Introuduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.


ZrO2 Al2O3 Semiconductor Ceramics Chucks 3
