Zirconium Dioxide ZrO2 Zirconia Ceramic Rod Needle High Hardness Precision

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$1~us$1000/P

Packaging Details: carton,wooden,box,pallet

Delivery Time: negotiable

Payment Terms: T/T

Supply Ability: 10000P/Month

Get Best Price
Highlight:

ZrO2 Zirconia Ceramic Rod Needle

,

ZrO2 Ceramic Rod Needle

,

ZrO2 zirconium dioxide Rod Needle

Place Of Origin:
Jiangsu China
Type:
Ceramic Rods
Application:
Industrial Ceramic
Material:
Zirconia Ceramic
Color:
White
Shape:
Customized
Density:
6.0g/cm3
Usage:
Industry Usage
Water Absorption:
0
Zirconia Content:
94.4%
Place Of Origin:
Jiangsu China
Type:
Ceramic Rods
Application:
Industrial Ceramic
Material:
Zirconia Ceramic
Color:
White
Shape:
Customized
Density:
6.0g/cm3
Usage:
Industry Usage
Water Absorption:
0
Zirconia Content:
94.4%
Zirconium Dioxide ZrO2 Zirconia Ceramic Rod Needle High Hardness Precision

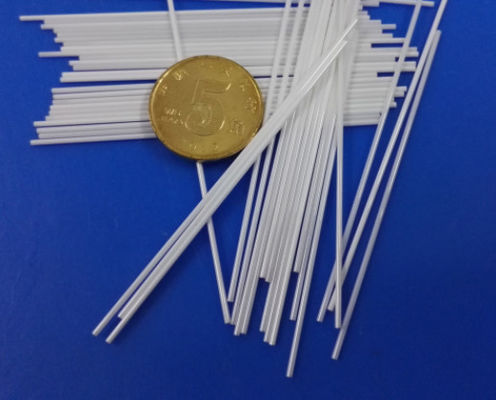

Customized zirconia ceramic rod needle 0.35mm~

Ceramic Parts are featured by insulation, antimagnetic, static electricity-free, lubricity and resistant to high temperature, high pressure,chemical attack and oxidation. It is extremely popular in many areas, such as computer, telecommunication, power supply, transducer, instrumentation, industrial equipment, electric appliance and electric motor. And a lot of practical applications prove that our ceramic bearing has reached a state of high standard and quality.

Zirconium Dioxide ZrO2 Zirconia Ceramic Rod Needle High Hardness Precision 0





data sheet

Item Unit Typical Values
Physical Properties
Color Customized
Density g/cm3 6
Zirconia Content % 94.40%
Gas permeability 0
Water Absorption 0
Crystal Size um 0.5
Mechanical Properties
Rockwell Hardness(45N) R45N 78
Vickers Hardness (Load 500g) Gpa(Kg/mm²) 11.5(1175)
Flexural Strength(20°C) Mpa 800
Compressive Strength(20°C) Mpa 2000
Modulus of Elasticity(20°C) Gpa >200
Fracture Toughness(20°C) MPam1/2 9
Thermal Properties
Thermal Conductivity(20°C-400°C) W(m.K) 2.5
Thermal Expansion Coefficient 10-6/°C 9.6
Thermal Shock Resistance T°C 250



Our services



Material Service:

Zirconia Ceramic: Mg-PSZ, Y-TZP, ZTA

Alumina Ceramic: 96%, 99%, 99.5% Al2O3

Silicon Nitride: Si3N4, RBSN, SRBSN, GPSN

Machinable Ceramic: Macor Ceramic



Machining Service:

Laser Cutting

CNC Machining

Cernerless Grinding and Inside Hole Honing

Surface Grinding and Polishing



Company introduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.



mass production by 100% inspection
