Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Industrial Ceramic,machinery,electronic,chemical |
Material: |
Zirconia Ceramic |
Color: |
Customized |
Feature: |
High Hardness,high Strength,high Temperature |
Shape: |
Customized |
Density: |
6.0g/cm3 |
Zirconia Content: |
94.4% |
Water Absorption: |
0 |
Place Of Origin: |
Jiangsu China |
Type: |
Ceramic Parts |
Application: |
Industrial Ceramic,machinery,electronic,chemical |
Material: |
Zirconia Ceramic |
Color: |
Customized |
Feature: |
High Hardness,high Strength,high Temperature |
Shape: |
Customized |
Density: |
6.0g/cm3 |
Zirconia Content: |
94.4% |
Water Absorption: |
0 |

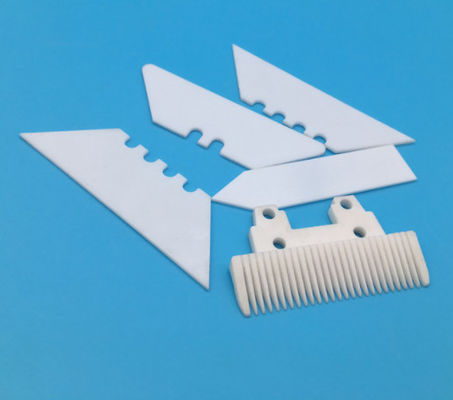

Rust Resistant Zirconia Ceramic Blade Razor Rust Resistant Ceramic Blade Razor
Zirconia Ceramic:
In terms of functional ceramics, its excellent high temperature resistance is used as an induction heating tube, refractory material, and heating element. Zirconia ceramics have sensitive electrical performance parameters and are mainly used in oxygen sensors, solid oxide fuel cells (SOFC) and high temperature heating bodies. ZrO2 has a high refractive index (N-21^22), and it can be made into a colorful translucent polycrystalline ZrO2 material by adding certain coloring elements (V2O5, MoO3, Fe2O3, etc.) to the ultrafine zirconia powder. , like natural gemstones, sparkling with colorful light, can be made into a variety of decorations. In addition, zirconia is widely used in thermal barrier coatings, catalyst carriers, medical, health care, refractory materials, textiles, and the like.
Zirconium oxide ceramics are white, yellow or gray when containing impurities, and generally contain HfO 2, which is not easily separated. Pure ZrO2 has three crystal states under normal pressure. The production of zirconia ceramics requires the preparation of high-purity, good dispersion properties, ultra-fine particles, narrow particle size distribution, zirconia ultrafine powder preparation methods, zirconia purification mainly chlorination and thermal decomposition, alkali metal Oxidative decomposition method, lime melting method, plasma arc method, precipitation method, colloid method, hydrolysis method, spray pyrolysis etc.
Properties:
High strength, high hardness, crash resistance, wear resistance, corrosion resistance, smooth surface, low thermal conductivity, nonmagnetic etc.
date sheet
Item | Unit | Typical Values |
Physical Properties | ||
Color | Customized | |
Density | g/cm3 | 6 |
Zirconia Content | % | 94.40% |
Gas permeability | 0 | |
Water Absorption | 0 | |
Crystal Size | um | 0.5 |
Mechanical Properties | ||
Rockwell Hardness(45N) | R45N | 78 |
Vickers Hardness (Load 500g) | Gpa(Kg/mm²) | 11.5(1175) |
Flexural Strength(20°C) | Mpa | 800 |
Compressive Strength(20°C) | Mpa | 2000 |
Modulus of Elasticity(20°C) | Gpa | >200 |
Fracture Toughness(20°C) | MPam1/2 | 9 |
Thermal Properties | ||
Thermal Conductivity(20°C-400°C) | W(m.K) | 2.5 |
Thermal Expansion Coefficient | 10-6/°C | 9.6 |
Thermal Shock Resistance | T°C | 250 |
Company introduce
Wuxi Special ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
quality control
mass production by 100% inspection
