Small Electrical Steatite Ceramics Socket Insulators High Mechanical

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramics

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$0.1/p

Packaging Details: carton,pallet

Delivery Time: negotiable

Payment Terms: T/T

Supply Ability: 200000p/month

Get Best Price
Highlight:

steatite ceramic socket

,

ceramic steatite insulator

,

steatite raw material

Type:
Ceramic Parts
Material:
Steatite
Shape:
Customerized
Usage:
Industrial Ceramic
Name:
Steatite Ceramic Tube Socket
Color:
White
Advantage:
Insulation
Keywords:
Insulator Steatite Industry Ceramic
Size:
Size Customized
Raw Material:
Steatite
Type:
Ceramic Parts
Material:
Steatite
Shape:
Customerized
Usage:
Industrial Ceramic
Name:
Steatite Ceramic Tube Socket
Color:
White
Advantage:
Insulation
Keywords:
Insulator Steatite Industry Ceramic
Size:
Size Customized
Raw Material:
Steatite
Small Electrical Steatite Ceramics Socket Insulators High Mechanical

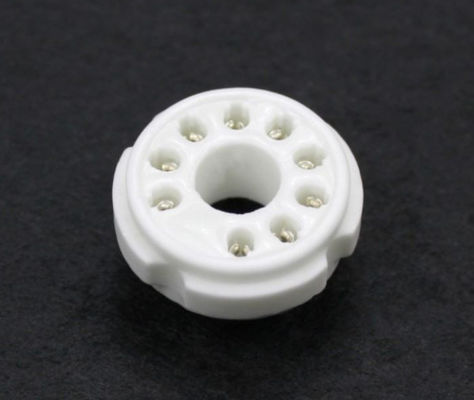

Steatite ceramic tube socket

We provide process design and validation for free.

Application: As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process,stress-relieving, pre-heating & post heating, other resistance-heating environment

Features:High resistivity,Moderate strength,Excellent electrical properties,Poor heat conductivity (Thermal insulator), Good resistance to thermal shock,Low coefficient of thermal expansion,Good mechanical stability.



Specification

  STEATITE Main Parameter:(Chemical/physical)
Property Item Unit Steatite
General properties Bulk Density g/cm³ 2.8
Color - White
Water absorption % 0
Main Characteristics     Thermal Insulator
Main Applications     Various circuit parts
Mechanical Properties Flexural Strength Mpa 190
Elastic Modulus Gpa 120
Vickers Hardness Gpa 5.8
Compressive Strength 20℃ Mpa -
Fracture Toughness(k l c) Mpa*M*1/2 -
Thermal Properties Thermal conductivity(20℃) w/mk 2
Thermal Shock -
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃ 7.7
Coefficient of Thermal expansion (40-800℃) 1x10-6/℃ 8
Electrical Properties Dielectric Strength(1mhz) kv/mm 18
Dielectric Constant(1MHZ) 25℃ 6
Volume Resistivity ohm-cm(20℃) >10^14
  ohm-cm(300℃) 10^10
  ohm-cm(500℃) 10^7


Our Company

Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.


   Small Electrical Steatite Ceramics Socket Insulators High Mechanical 0
   Small Electrical Steatite Ceramics Socket Insulators High Mechanical 1

   Quality guarantee:mass produce by 100% inspectio
