High quality,small trial produce and quick delivery.
 |
| Place of Origin: | Made in China |
| Brand Name: | wuxi special ceramics |
| Minimum Order Quantity: | 10p |
|---|---|
| Price: | us$0.1/p |
| Packaging Details: | carton,pallet |
| Delivery Time: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 200000p/month |
| Type: | Ceramic Parts | Material: | Steatite |
|---|---|---|---|
| Shape: | Customerized | Usage: | Industrial Ceramic |

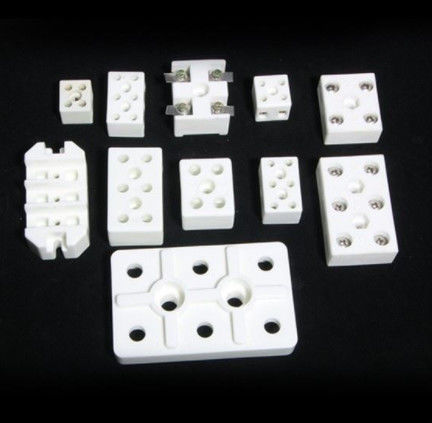

| Name: | Steatite Ceramic Terminal Block Connector | Color: | White |
| Advantage: | Insulation | Keywords: | Insulator Steatite Industry Ceramic |
| Size: | Size Customized | Raw Material: | Steatite |
| High Light: | steatite ceramic terminal block,2 or 3 Pole Ceramic Steatite Terminal Block,24A Steatite Ceramics Terminal Block Connector |
||
Application Of Steatite Ceramic terminal block connector.
1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment
3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.
4). high-powr electrical applicance and all kinds of insulation device.
Specification
| STEATITE Main Parameter:(Chemical/physical) | ||||
| Property | Item | Unit | steatite | |
| General properties | Bulk Density | g/cm³ | 2.8 | |
| Color | - | White | ||
| Water absorption | % | 0 | ||
| Main Characteristics | Thermal Insulator | |||
| Main Applications | Various circuit parts | |||
| Mechanical Properties | Flexural Strength | Mpa | 190 | |
| Elastic Modulus | Gpa | 120 | ||
| Vickers Hardness | Gpa | 5.8 | ||
| Compressive Strength 20℃ | Mpa | - | ||
| Fracture Toughness(k l c) | Mpa*M*1/2 | - | ||
| Thermal Properties | Thermal conductivity(20℃) | w/mk | 2 | |
| Thermal Shock | ℃ | - | ||
| Coefficient of Thermal expansion (40-400℃) | 1x10-6/℃ | 7.7 | ||
| Coefficient of Thermal expansion (40-800℃) | 1x10-6/℃ | 8 | ||
| Electrical Properties | Dielectric Strength(1mhz) | kv/mm | 18 | |
| Dielectric Constant(1MHZ) | 25℃ | 6 | ||
| Volume Resistivity | ohm-cm(20℃) | ＞10^14 | ||
| ohm-cm(300℃) | 10^10 | |||
| ohm-cm(500℃) | 10^7 | |||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
Quality guarantee:mass produce by 100% inspectio
n
Contact Person: Zhu
Tel: 86-17351500728
