Sic Ceramic Silicon Carbide Ceramics Spiral Nozzle Good Wear Resistance

Basic Information
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: various nozzles
Minimum Order Quantity: 10p
Price: us$10~us$100/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 200000p/month
Application: Desulfurization And Dusting Removal Material: Silicon Carbide
Color: Black Product Name: Silicon Carbide Ceramic Parts
Size: Customers' Requests Advantage: Corrosion Resistance
Item: High Temperature/silicon Carbide Ceramic/SiC Ceramic Plate Usage: Industry Usage
Type: Nozzles Shape: Customers' Request
High Light:

silicon carbide spiral nozzle

,

silicon carbide nozzle

,

Sic Ceramic

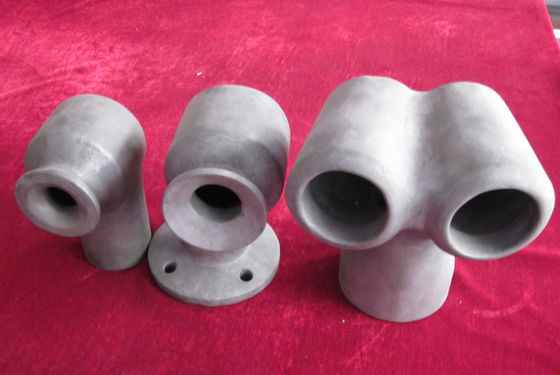

Silicon carbide spiral nozzles have solid cone and hollow cone spray nozzles.The jet angle can be from 60° to 160° to be avoid of obstruction.

From 3/8 inch to 4 inch,it can be connected with screw thread and flange.It has fine and uniform atomization effect.

It is usually used in the area of desulfurization and dusting removal.





  SILICON CARBIDE(SiC) Main Parameter:(Chemical/physical)
Property Item Unit SiC
General properties Main chemical ingredient
Bulk Density g/cm³ 3.2
Color - Black
Water absorption % 0
Main Characteristics     *High Temperature Strength *High Chemical Resistance,Excellent Thermal *Conductivity
Main Applications     *Mechanical Seal *High Temperature Resistance Parts
Mechanical Properties Flexural Strength Mpa 540
Elastic Modulus Gpa 430
Vickers Hardness Gpa 22
Compressive Strength 20℃ Mpa -
Fracture Toughness(k l c) Mpa*M*1/2 4~5
Thermal Properties Thermal conductivity(20℃) w/mk 60
Thermal Shock 400
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃ 3.7
Electrical Properties Dielectric Strength(1mhz) ac-kv/mm(ac v/mil) -
Dielectric Constant(1MHZ) 25℃ -
Volume Resistivity ohm-cm(20℃) 10^5
  ohm-cm(300℃) 10^4
  ohm-cm(500℃) 10^3





Our Company




Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Silicon carbide,Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.





    mass production by 100% inspection
