Black Sic Silicon Carbide Ceramics Mechanical Seal Rings Silicon Carbide Seal Face
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: rings
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$10~us$100/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 200000p/month
Contact Now
Detailed Product Description
Application: Industrial Ceramic Material: Silicon Carbide
Color: Black Product Name: Silicon Carbide Ceramic Seal
Size: Customers' Requests Advantage: Corrosion Resistance
Item: High Temperature/silicon Carbide Ceramic/SiC Ceramic Plate Usage: Industry Usage
Type: Ceramic Rings
High Light:

silicon carbide mechanical seal

,

Silicon Carbide Mechanical Seal

,

Silicon Carbide Seal Rings

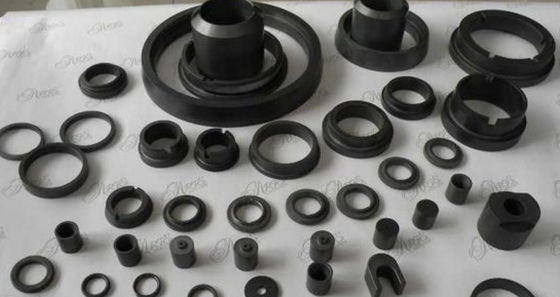

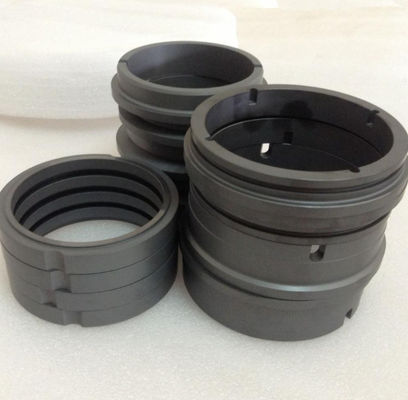

Black Sic Silicon Carbide Ceramics Mechanical Seal Rings Silicon Carbide Seal Face

Silicon Carbide seal has high intensity,high hardness and good chemical erosion resistance.It has a longer use life so it is more economic than normal metal seal.It can be used in the conditon of radioactivity,corrosiveness,hypertoxicity,flammability,explosion hazard and high temperature.

It is used in the area of oil,chemical pump and rotary machines.



  SILICON CARBIDE(SiC) Main Parameter:(Chemical/physical)
Property Item Unit SiC
General properties Main chemical ingredient
Bulk Density g/cm³ 3.2
Color - Black
Water absorption % 0
Main Characteristics     *High Temperature Strength *High Chemical Resistance,Excellent Thermal *Conductivity
Main Applications     *Mechanical Seal *High Temperature Resistance Parts
Mechanical Properties Flexural Strength Mpa 540
Elastic Modulus Gpa 430
Vickers Hardness Gpa 22
Compressive Strength 20℃ Mpa -
Fracture Toughness(k l c) Mpa*M*1/2 4~5
Thermal Properties Thermal conductivity(20℃) w/mk 60
Thermal Shock 400
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃ 3.7
Electrical Properties Dielectric Strength(1mhz) ac-kv/mm(ac v/mil) -
Dielectric Constant(1MHZ) 25℃ -
Volume Resistivity ohm-cm(20℃) 10^5
  ohm-cm(300℃) 10^4
  ohm-cm(500℃) 10^3
