Kiln Silicon Carbide Ceramics Products Sic Saggar Material By Stabled Property

Product Details

Place of Origin: Made in China

Brand Name: wuxi special ceramic

Model Number: saggar

Payment & Shipping Terms

Minimum Order Quantity: 10p

Price: us$10~us$100/p

Packaging Details: carton,pallet

Delivery Time: negotiable

Payment Terms: T/T

Supply Ability: 200000p/month

Get Best Price
Highlight:

silicon carbide saggar

,

silicon carbide material

,

sic silicon carbide products

Application:
Sintering Parts
Material:
Silicon Carbide
Color:
Black
Product Name:
Silicon Carbide Ceramic Parts
Size:
Customers' Requests
Advantage:
Corrosion Resistance
Item:
High Temperature/silicon Carbide Ceramic/SiC Ceramic Plate
Usage:
Industry Usage
Application:
Sintering Parts
Material:
Silicon Carbide
Color:
Black
Product Name:
Silicon Carbide Ceramic Parts
Size:
Customers' Requests
Advantage:
Corrosion Resistance
Item:
High Temperature/silicon Carbide Ceramic/SiC Ceramic Plate
Usage:
Industry Usage
Kiln Silicon Carbide Ceramics Products Sic Saggar Material By Stabled Property

Kiln Silicon Carbide Ceramics Products Sic Saggar Material By Stabled Property

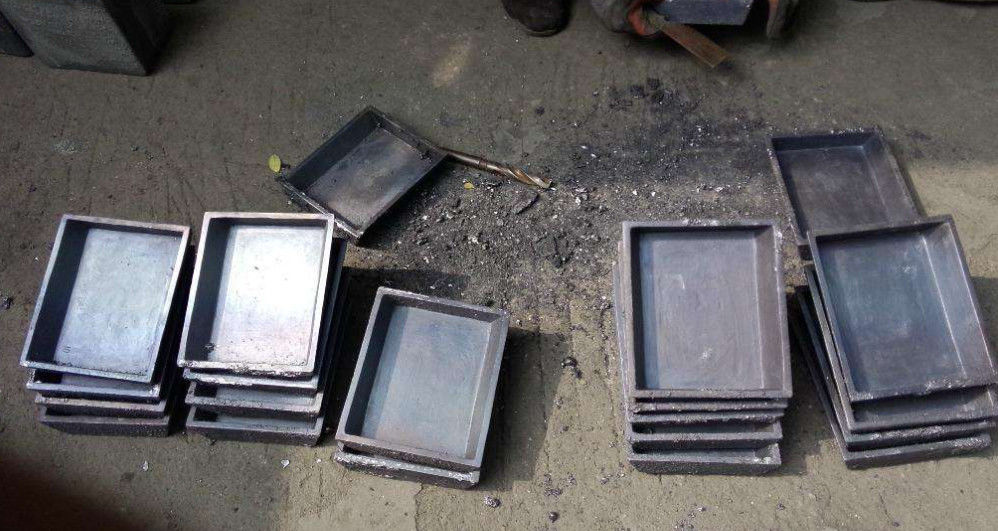

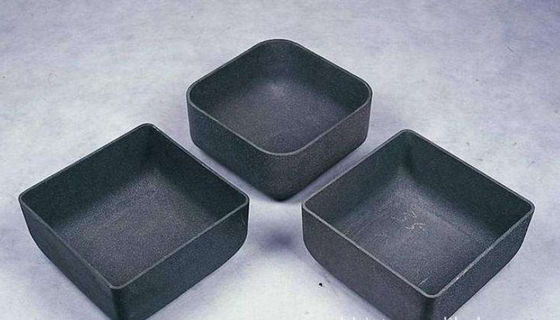

Silicon carbide saggars have good ability of high temperature resistance,antioxidation,corrosion resistance,abrasion resistance,high thermal efficiency,heat conduction.Saggar is used as powder sintering and metallurgy in the area of metallurgy,chemical industry and glass.And also used as dehydration element and various abrasive parts in the area of paper industry.



  SILICON CARBIDE(SiC) Main Parameter:(Chemical/physical)
Property Item Unit SiC
General properties Main chemical ingredient
Bulk Density g/cm³ 3.2
Color - Black
Water absorption % 0
Main Characteristics     *High Temperature Strength *High Chemical Resistance,Excellent Thermal *Conductivity
Main Applications     *Mechanical Seal *High Temperature Resistance Parts
Mechanical Properties Flexural Strength Mpa 540
Elastic Modulus Gpa 430
Vickers Hardness Gpa 22
Compressive Strength 20℃ Mpa -
Fracture Toughness(k l c) Mpa*M*1/2 4~5
Thermal Properties Thermal conductivity(20℃) w/mk 60
Thermal Shock 400
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃ 3.7
Electrical Properties Dielectric Strength(1mhz) ac-kv/mm(ac v/mil) -
Dielectric Constant(1MHZ) 25℃ -
Volume Resistivity ohm-cm(20℃) 10^5
  ohm-cm(300℃) 10^4
  ohm-cm(500℃) 10^3





Our Company




Wuxi Special Ceramic Electrical mainly produces alumina, Silicon Carbide,Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.



    mass production by 100% inspection
