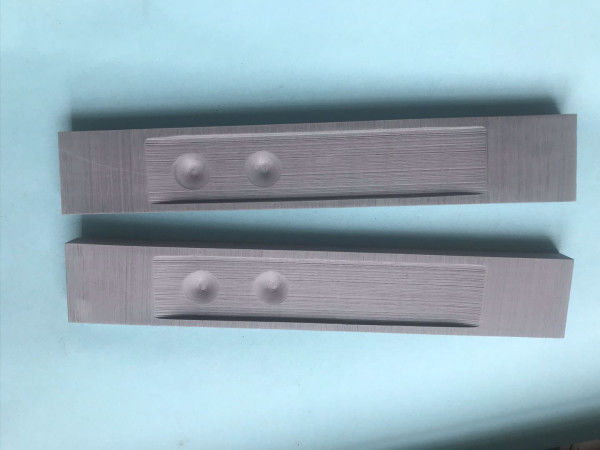

Vaccum Coating Conductive Boron Nitride Ceramics Evaporation Boat For Aluminium Metallization

Basic Information
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Minimum Order Quantity: 10p
Price: us$10~us$100/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Type: Ceramic Parts Application: Vaccum Coating
Material: Boron Nitride Size: Customers' Requests
Product Name: Conductive Ceramic Evaporation Boat Shape: Customized
Usage: Vaccum Coating Conductive Ceramic Evaporation: 1450℃
Flexural Strength: >150Mpa
High Light:

ceramic evaporation boat

,

Conductive Boron Nitride evaporation boat

,

BN evaporation boat

evaporation boat,vaccum coating conductive ceramic evaporation boat,boron nitride ceramics



Quality



A. the less time of preheating

B. more ability of aluminum liquid spreading

C. less problem of sputtering and bended boat

D. longer life usage

E. more economic option



Feature and Advantage



Pure material is used to make more chemical characteristic.

Advanced vaccum hot pressing method can make excellent physical property.

Pressing in two directions in the process of sintering to guarantee the consistency of density.

The digital of equipment makes the quality stable.

The unique prescription strenghtens the ability of heat shock and bending,enhence the ability of aluminum liquid spreading and the efficiency of evaporation.



Specification




Resistivity 300-2000μΩ·cm
Evaporation velocity 0.4-0.5g/min·cm2
Operating temperature ≤ 1850℃
Heat conductivity (normal temperature 1450℃ ) > 100/40W/mk
Coefficient of thermal expansion(1450℃) (4-6)×10-6K
Bending strength (normal temperature) > 150mpa
Packing Vacuum package
Category Nomal temperature resistivity(MOC)
Type-1 200-300
Type-2 300-400
Type-3 400-500
Type-4 500-600
Type-5 600-700
Type-6 700-800
Type-7 800-900
Type-8 900-1000

We can produce all the size of evaporation boat that is used in the market.





Our Company


Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.





   Vaccum Coating Conductive Boron Nitride Ceramics Evaporation Boat For Aluminium Metallization 0

  Vaccum Coating Conductive Boron Nitride Ceramics Evaporation Boat For Aluminium Metallization 1



      Quality guarantee:mass produce by 100% inspection
