Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$1~us$1000/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10T/month
Type: |
Ceramic Parts |
Material: |
Mullite |
Color: |
White Or Light Yellow |
Size: |
As Customer Design |
Usage: |
Industry Usage |
Feature: |
High Temperature Resistance |
Shape: |
Customization |
Raw Material: |
Cordierite Mullite |
Name: |
Mullite Ceramic Parts |
Type: |
Ceramic Parts |
Material: |
Mullite |
Color: |
White Or Light Yellow |
Size: |
As Customer Design |
Usage: |
Industry Usage |
Feature: |
High Temperature Resistance |
Shape: |
Customization |
Raw Material: |
Cordierite Mullite |
Name: |
Mullite Ceramic Parts |

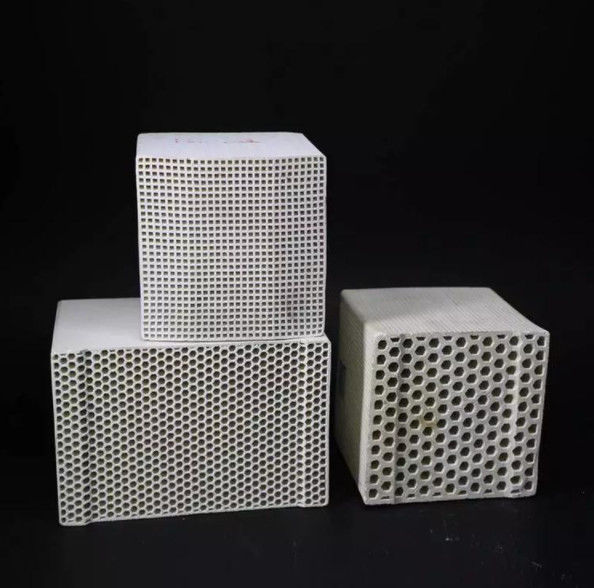

Lightweight Fire Refractoty Mullite Insulation Bricks Kiln Shed Board Sagger
As excellent refractory material,mullite material is usually used for producing refractory products.It is usually used in the industry of kiln,kiln shed board,sagger,oil and chemical.It is sintered at the temperature of 1750℃.The feature of mullite ceramic part is of high density,good stability of heat shock,loss creep deformation in high-temperature and good resistance of chemical corriosion.
It is usually applied in the field of refractory,ceramics,metallurgy,casting,electronics.
Specification
| Mullite Main Parameter:(Chemical/physical) | ||||
| Property | Item | Unit | Mullite | |
| General properties | Main chemical ingredient | 3Al₂O₃,2SiO2 | ||
| Bulk Density | g/cm³ | 3.2 | ||
| Color | - | white | ||
| Water absorption | % | 0 | ||
| Main Characteristics | low thermal expansion | |||
| Main Applicationa | IC Packages | |||
| Mechanical Properties | Flexural Strength | Mpa | 280 | |
| Elastic Modulus | Gpa | 210 | ||
| Vickers Hardness | Gpa | 10.8 | ||
| Compressive Strength 20℃ | Mpa | - | ||
| Fracture Toughness(k l c) | Mpa*M*1/2 | - | ||
| Thermal Properties | Thermal conductivity(20℃) | w/mk | 5 | |
| Coefficient of Thermal expansion (40-400℃) | 1x10-6/℃ | 5 | ||
| Electrical Properties | Dielectric Strength(1mhz) | ac-kv/mm(ac v/mil) | 15 | |
| Dielectric Constant(1MHZ) | 25℃ | 7.4 | ||
| Volume Resistivity | ohm-cm(20℃) | ＞10^14 | ||
| ohm-cm(300℃) | 10^12 | |||
| ohm-cm(500℃) | 10^9 | |||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
mass produce by 100% inspection
