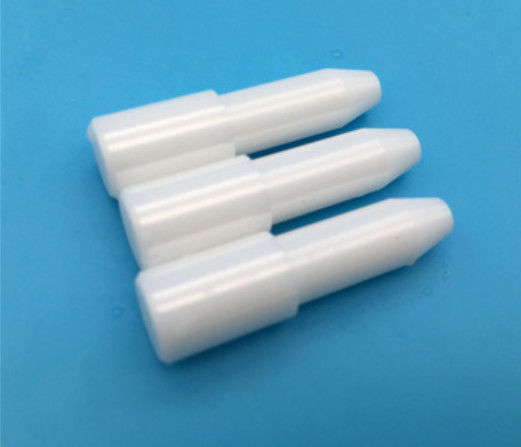

Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content

Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content

  • Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content
  • Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content
  • Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content
  • Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content
Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$1~us$1000/P
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu China Type: Ceramic Parts
Application: Industrial Ceramic,machinery,electronic,chemical Material: Zirconia Ceramic
Color: Customized Shape: Customized
Density: 6.0g/cm3 Usage: Industry Usage
Water Absorption: 0 Zirconia Content: 94.4%
High Light:

zirconia ceramic bullet rod

,

zirconia ceramic rod bullet

,

low thermal conductivity zirconia ceramic rod bullet

Low thermal conductivity zirconia ceramic bullet rod

In terms of structural ceramics, zirconia ceramics are widely used in the field of structural ceramics because of their high toughness, high flexural strength and high wear resistance, excellent thermal insulation properties, and thermal expansion coefficient close to that of steel. Mainly: Y-TZP grinding ball, dispersion and grinding media, nozzle, ball valve ball seat, zirconia mold, micro fan shaft, fiber pin, fiber sleeve, wire drawing die and cutting tool, wear-resistant tool, clothing button, Cases and straps, bracelets and pendants, ball bearings, golf ball hitters and other room temperature wear-resistant components.



Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content 0



data sheet

Item Unit Typical Values
Physical Properties
Color Customized
Density g/cm3 6
Zirconia Content % 94.40%
Gas permeability 0
Water Absorption 0
Crystal Size um 0.5
Mechanical Properties
Rockwell Hardness(45N) R45N 78
Vickers Hardness (Load 500g) Gpa(Kg/mm²) 11.5(1175)
Flexural Strength(20°C) Mpa 800
Compressive Strength(20°C) Mpa 2000
Modulus of Elasticity(20°C) Gpa >200
Fracture Toughness(20°C) MPam1/2 9
Thermal Properties
Thermal Conductivity(20°C-400°C) W(m.K) 2.5
Thermal Expansion Coefficient 10-6/°C 9.6
Thermal Shock Resistance T°C 250



Our services



Material Service:

Zirconia Ceramic: Mg-PSZ, Y-TZP, ZTA

Alumina Ceramic: 96%, 99%, 99.5% Al2O3

Silicon Nitride: Si3N4, RBSN, SRBSN, GPSN

Machinable Ceramic: Macor Ceramic



Machining Service:

Laser Cutting

CNC Machining

Cernerless Grinding and Inside Hole Honing

Surface Grinding and Polishing



Company introduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.



mass production by 100% inspection

Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content 1



Low Thermal Conductivity Zirconia Ceramic Bullet Rod Ceramic Shaft 94.4% Content 2
