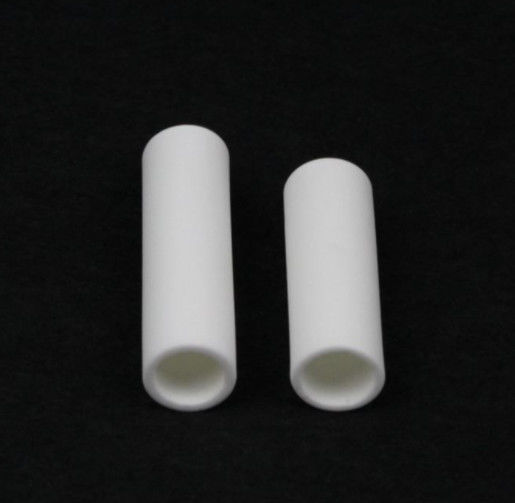

Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes

Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes

  • Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes
  • Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes
  • Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes
Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramics
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$0.1/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 200000p/month
Contact Now
Detailed Product Description
Type: Ceramic Parts Material: Steatite
Shape: Customerized Feature: Insulation
Usage: Industrial Ceramic Name: Steatite Ceramic Tube
Color: White Advantage: Insulation
Keywords: Insulator Steatite Industry Ceramic
High Light:

ceramic tube insulators

,

steatite ceramic insulators

,

steatite ceramic tube insulators

Steatite Ceramic is a low-cost material with high resistance at high temperature,good mechanical strength and extremely low dielectric loss factor.These characteristics make it very suitable for high frequency,low loss and high voltage insulation.In addition,talc is an excellent material for electrical engineering.



Advantages

A. Has a long history

B. Low cost

C. Richer Experience

D. Customized according to needs



Services

A. Product quality control and delivery time is strictly controlled;

B. Direct manufacturing factory offering competitive price;

C. All the inquiries will be replied within 12 hours;

D. OEM & ODM service are available


Specification

  STEATITE Main Parameter:(Chemical/physical)
Property Item Unit steatite
General properties Bulk Density g/cm³ 2.8
Color - White
Water absorption % 0
Main Characteristics     Thermal Insulator
Main Applications     Various circuit parts
Mechanical Properties Flexural Strength Mpa 190
Elastic Modulus Gpa 120
Vickers Hardness Gpa 5.8
Compressive Strength 20℃ Mpa -
Fracture Toughness(k l c) Mpa*M*1/2 -
Thermal Properties Thermal conductivity(20℃) w/mk 2
Thermal Shock -
Coefficient of Thermal expansion (40-400℃) 1x10-6/℃ 7.7
Coefficient of Thermal expansion (40-800℃) 1x10-6/℃ 8
Electrical Properties Dielectric Strength(1mhz) kv/mm 18
Dielectric Constant(1MHZ) 25℃ 6
Volume Resistivity ohm-cm(20℃) >10^14
  ohm-cm(300℃) 10^10
  ohm-cm(500℃) 10^7


Our Company

Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.


   Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes 0
   Electrical Steatite Ceramics Tube Insulators Pipe Insulation In Different Shapes 1

   Quality guarantee:mass produce by 100% inspectio
n
