Silicon Nitride HIP Ceramic Bearing Ball For G5

Silicon Nitride HIP Ceramic Bearing Ball For G5

  • Silicon Nitride HIP Ceramic Bearing Ball For G5
  • Silicon Nitride HIP Ceramic Bearing Ball For G5
  • Silicon Nitride HIP Ceramic Bearing Ball For G5
  • Silicon Nitride HIP Ceramic Bearing Ball For G5

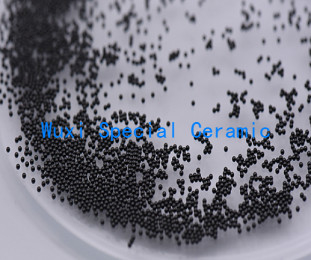

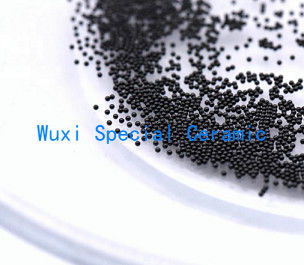

Silicon Nitride HIP Ceramic Bearing Ball For G5
Product Details:
Place of Origin: China
Brand Name: Wuxi Special Ceramic Electrical
Payment & Shipping Terms:
Minimum Order Quantity: 100p
Price: 0.1usd/p-10usd/p
Packaging Details: Wooden boxes with foam package inside
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 100000p/month
Contact Now
Detailed Product Description
Material: Silicon Nitride Type: Ceramic Balls
Size Range: 0.5mm-100mm Grade: G3-G1000
Color: Black Shape: Round
Usage: Wear Resistance Size: Customized
Density: 3.25g/cm3 Hardness: 15Gpa
High Light:

HIP Ceramic Bearing Ball

,

G5 Ceramic Bearing Ball

,

Vacuum Silicon Nitride Ceramic Balls

Si3N4 Silicon Nitride Ceramic Ball

HIP Ceramic Bearing Ball For G5

Silicon nitride ceramic balls can be used for all kinds of bearings with extreme performance requirements: high-speed ultra-high-speed bearings,high-precision bearings, vacuum bearings, high and low temperature bearings, non-magnetic bearings, high-precision ball screws; can also be used for chemical pumps, high temperature used as valve ball and measuring ball in pumps and metering pumps.


It is used in processing equipment to improve bearing performance. It is lighter, stiffer, smoother, harder, corrosion resistant, require less lubrication, and have a lower thermal expansion than their steel counterparts which allow the bearing to run at higher speeds and higher operational temperatures with lower torque.


Size Overview:



Grade
Vdws
SPH
Vdwl
Ra
G3
0.05-0.08
≤0.08
<0.13
0.01
G5
0.08-0.13
≤0.13
<0.25
0.014
G10
0.15-0.25
≤0.25
<0.5
0.02
G16
0.2-0.4
≤0.4
<0.8
<0.025
G20
0.3-0.5
≤0.5
<1
<0.032
G100
0.4-0.7
0.4-0.7
<1.4
<0.0105



Silicon Nitride HIP Ceramic Bearing Ball For G5 0



Company Profile

Wuxi Special Ceramic Electrical Co.,Ltd has 20 years ceramic produce experience.we mainly produce alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
