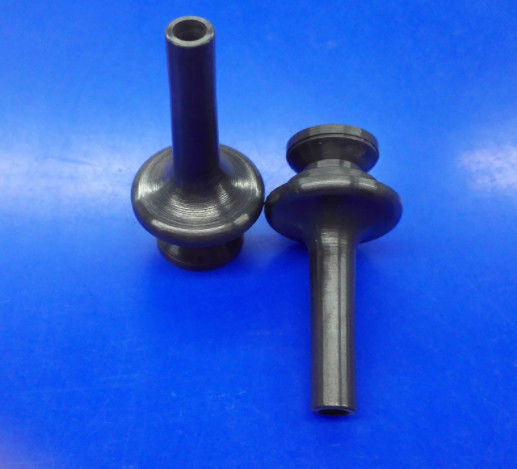

High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles

High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles

  • High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles
  • High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles
  • High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles
High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$1~us$100/P
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Contact Now
Detailed Product Description
Application: Refractory Type: Ceramic Parts
Feature: Heat Resistance Usage: Ceramic Nozzle For Welding
Shape: Customized Size: Customized
Name: Si3O4 Ceramic Welding Nozzle Material: Silicon Nitride Ceramic
High Light:

Si3O4 Nozzles

,

Welding Ceramic Nozzles

,

silicon nitride ceramic nozzles

High Temperature Heat Resistant Silicon Nitride Si3N4 Ceramic Welding Nozzles

Main Features:
A.  High strength over a wide temperature range
B.  High fracture toughness
C.  High hardness
D.  Outstanding wear resistance, both impingement and frictional modes
E.  Good thermal shock resistance
F.   Good chemical resistance



Silicon Nitride (Si3N4) is a widely used ceramic material in high temperature application, it has high strength in both room temperature and high temperature condition, the strength of silicon nitride can be kept up to 1200ºC; the low coefficient of thermal expansion make it a ceramic material possessing excellent thermal shock resistance; at the same time, it also has good thermal conductivity.
Except for the excellent properties in thermal application, silicon nitride also has good mechanical, chemical, electrical properties. It has good strength, good flexture strength and wear resistance;it is a good performance electrical insulation ceramic material; it is corrosive against all inorganic acid, most of organic acid solutions and some of caustic soda solutions.





High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles 0High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles 1






Properties Units AL2O3 ZrO2 SiC Si3N4
Density g/cm3 3.65-3.93 5.95-6.0 3.12 3.23
Water absorption 0 0 0 0 0
Poission`s ratio / 0.21-0.22 0.3 0.17 0.26
HV hardness hv MPa 1650 1300-1365 2800 1500
Flexural strength MPa 310 950 390 720
Heat conductivity W/m*k 26-30 2-2.2 120 25
Electrical resistivity Ω*mm2/m >1016 >1015 >103 >1013
Dielectric constant / 9.6 29 9.66-10.03 /
Dielectric strength KV/mm 8.7 9 / /
Coefficientof thermal expansion 10-16/k 7.9-8.5 10.5 3 3.2
Modulus of elasticity young`s mod GPa 280-340 210 440 300
Flexural strength(700℃) MPa 230 210 380 450
Compressive strength MPa 2200 2000 1800 2300
Max use temperature 1750 1050 1550 1050
Resistance to acid alkaline / high high high high
Thermal shock resistance T(℃) 180-220 280-350 230-260 /
Fracture toughness MPa*m1/2 4.2 10 3.9 6.2
Tensile strength MPa 248 250 / /




produce parameters



Dimensional accuracy Up to 0.001mm
Smoothness Highest possible mirror
Concentricity Up to 0.003mm
Parallelism Up to 0.002mm
The inner hole tolerance The minimum 0.005mm
Straight flute The narrowest 0.1x100mm
The thickness of the size Minimum to 0.02mm
The screw thread Minimum internal thread M2
Cylindricity Up to 0.004mm
The linear tolerance Up to 0.001mm
The smallest aperture The minimum 0.07mm
Precision process CNC maching,grinding,lapping
Surface finish Glazed,polishing or metallized





Customization:
As a manufacturer of ceramic parts, we offer customization of ceramic special sizes and shapes.High Precision, Fast Delivery Time, High Composition (with test report).



Lead time: 10-20 working days for the mass with free sample of mass ; Minimum order quantity : 1qty



Our Company



Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

Ceramic Nozzle and Insulation Sleeves for welding equipment







High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles 2

High Temperature Heat Resistant Si3O4 Silicon Nitride Welding Ceramic Nozzles 3



      Quality guarantee:mass produce by 100% inspection
