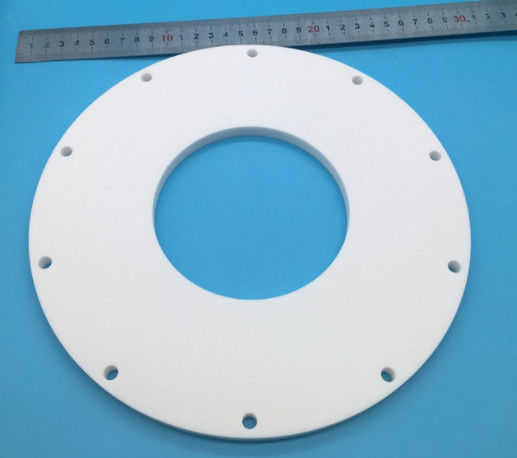

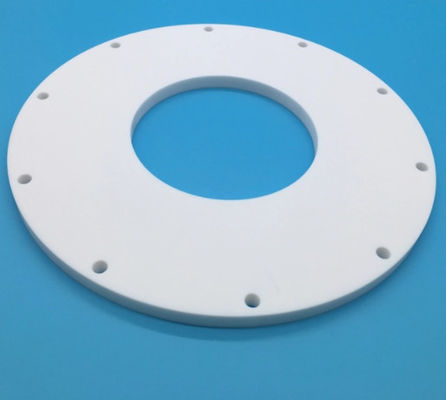

Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet

Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet

  • Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet
  • Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet
  • Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet
  • Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet
Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet
Product Details:
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Payment & Shipping Terms:
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,wooden,box,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 10000P/Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu China Type: Ceramic Parts
Application: Industrial Ceramic,machinery,electronic,chemical Processing Service: Bending,welding,cutting,punching,moulding,grinding,milling,drilling,cnc
Color: White Shape: Customized
Dimension: Customized Feature: High Hardness,high Strength,high Temperature
Density: 2.6g/cm3 Main Composition: Mg3K[AlF2O(SiO3)3],SiO2
Water Absorption: 0 Perennial Temperature: 800℃
High Light:

Micalex macor ceramic flange

,

Micalex macor ceramic plate

,

Micalex Macor Sheet

Product Description

Macor mica machinable Ceramics:

Microcrystalline glass ceramics, also known as machinable ceramics, are mica glass-ceramics with synthetic mica as the main crystalline phase, and are ceramic materials that can be machined. Microcrystalline glass ceramics have excellent processing properties, vacuum properties, electrical insulation properties, and high temperature and chemical resistance.

Macor ceramics have excellent processing properties, vacuum properties, electrical insulation properties, and high temperature and chemical resistance. Glass-ceramics with high mechanical strength of glass-ceramics, machinable glass-ceramics and bioactive glass-ceramics.



Application industry:

Machinery, electronic, limitary, aerospace etc.

Specific application: Machined equipment high temperature insulated parts, electronic equipment high temperature insulated parts.

Macor ceramics are particularly suitable for automotive, military, aerospace, precision instruments, medical equipment, electric vacuum devices, electron beam exposure machines, textile machinery, sensors, mass spectrometers and energy spectrometers. For some thin-walled coil bobbins, precision instrumented insulation brackets, and complex-shaped devices with high precision requirements, glass-ceramics are more suitable, and they can be processed into any shape.



Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet 0Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet 1







Data sheet



Machinable mica (Macor) Ceramic Properties
Item Unit Typical Values
Physical Properties
Color   White
Main Composition   Mg3K[AlF2O(SiO3)3],SiO2
Density g/cm3 2.60
Apparent Porosity   0.07%
Water Absorption   0
Normal Temperature Outlet Rate ml/S·cm2 8.8*10-9
Helium Transmission Rate ml/S 1*10-10
Mechanical Properties
Rockwell Hardness(45N) R45N 40
Vickers Hardness (Load 500g) Gpa(Kg/mm2) 11.5(1175)
Flexural Strength (20°C) Mpa >108
Compressive Strength (20°C) Mpa >508
Modulus of Elasticity (25°C) Gpa 65
Impact Toughness KJ/m2 >2.56
Thermal Properties
Thermal Conductivity (25°C) W/m.K 1.71
Thermal Expansion Coefficient 10-7/°C 72
Thermal Shock Resistance T°C 200
Perennial Temperature °C 800
Electric Properties
Dielectric Strength KV/mm >40
Volume Resistivity(25°C) Ω.cm 1.08*1016
Volume Resistivity(200°C) Ω.cm 1.5*1012
Volume Resistivity(500°C) Ω.cm 1.1*109
Dielectric Loss   1-4*10-3
Dielectric Constant Er 6-7







Company Introduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.



Quality Control

mass production by 100% inspection



Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet 2

Isolated Wear Resistant Mica Macor Machinable Ceramic Flange Plate Macor Sheet 3
